13-ton drop axle lowered axle American Type Semi-Trailer Axle
Kales 13-Ton Single-Tire Drop Axle – Enhancing Transport Efficiency, Safety, and Cost-Effectiveness Advantages of the Kales 13-Ton Single-Tire Drop Axle High Load-Carrying Capacity Superior Stability Even Tire Wear Low Maintenance Costs Excellent Ground Clearance Choose the Kales 13-ton single-tire drop axle for a transport solution that offers high efficiency, safety, and cost-effectiveness. Whether your business is large or small, the Kales 13-ton single-tire drop axle is a reliable choice you can trust.
Built for export buyers who need route-matched trailers, durable structure, and clear factory support before shipment.
Trailer Type
Semi trailer
Axles
Multi-axle options
Payload
Configured to project requirement
Rugged & Durable
Built with high-strength steel and branded components to withstand tough road conditions
Exceptional Support
From customization to maintenance, we provide full lifecycle support for your fleet
FAST DELIVERY
Optimized production lines to ensure on-time delivery for your orders
Product Overview
Products Description of kales 13-ton drop axle
What is a Drop Axle for Trailers?
A drop axle, also known as a lowered axle, is a design where the axle is mounted below the frame of the trailer. Compared to a standard straight axle, a drop axle lowers the distance between the axle and the center of the wheel hub by about 4 inches, bringing the trailer closer to the ground. The primary purpose of this design is to lower the vehicle’s center of gravity, thereby improving stability and load-carrying capacity. As a result, drop axles are widely used in heavy-duty trucks and trailers, especially when transporting heavy loads, as they significantly enhance vehicle handling and stability.
Advantages of the Kales 13-Ton Single-Tire Drop Axle
High Load-Carrying Capacity
The Kales 13-ton single-tire drop axle is specially designed for vehicles that need to carry heavy loads. Whether it’s construction materials, machinery, or other heavy cargo, this drop axle provides robust support, ensuring safe and secure transportation.
Superior Stability
By lowering the vehicle’s center of gravity, the Kales 13-ton single-tire drop axle not only improves driving stability but also significantly reduces the risk of rollovers and tipping. This is particularly important for vehicles that frequently operate in challenging road conditions.
Even Tire Wear
The design of this drop axle ensures that the vehicle distributes weight more evenly during operation, leading to more uniform tire wear. This extends the lifespan of the tires, reducing the frequency of replacements and lowering operational costs.
Low Maintenance Costs
The Kales 13-ton single-tire drop axle features a relatively simple structure, making routine maintenance easier and more cost-effective. Whether it’s inspections or part replacements, tasks can be completed quickly, minimizing downtime and maximizing vehicle availability.
Excellent Ground Clearance
Due to the lower position of the axle, vehicles equipped with the Kales 13-ton single-tire drop axle can easily navigate through low-clearance garage entrances and other height-restricted areas. This greatly enhances the vehicle’s versatility and flexibility, making it ideal for urban deliveries and operations in confined spaces.
Choose the Kales 13-ton single-tire drop axle for a transport solution that offers high efficiency, safety, and cost-effectiveness. Whether your business is large or small, the Kales 13-ton single-tire drop axle is a reliable choice you can trust.
Key attributes of kales 13-ton drop axle
| Model | Max. Capacity(T) | Spring Centre (mm) | Wheel Track(mm) | Brake(mm) | Axle Tube(mm) | Studs(mm) | P.C.D(mm) | Hole Diameter(mm) |
Recommended Wheel
|
| KAASDA13A
single tyres |
13 | 1650 | 2575 | Φ420*150 | 150*150 | 10*M22*1.5 | 335 | 281 | ≥7.5v-20 |
| KAASDA13B
single tyres |
13 | 1650 | 2575 | Φ420*150 | Φ127 | 10*M22*1.5 | 335 | 281 | ≥7.5v-20 |
| KAASDA13C
twin tyres |
13 | 1500 | 2340 | Φ420*150 | 150*150 | 10*M22*1.5 | 335 | 281 | ≥7.5v-20 |
| KAASDA13D
twin tyres |
13 | 1500 | 2340 | Φ420*150 | Φ127 | 10*M22*1.5 | 335 | 281 | ≥7.5v-20 |
Noted:
1. The Trailer Axle track can be customized according to customer requirements
2. Axles can install ABS brake.
3. Axles can install Air brake chamber

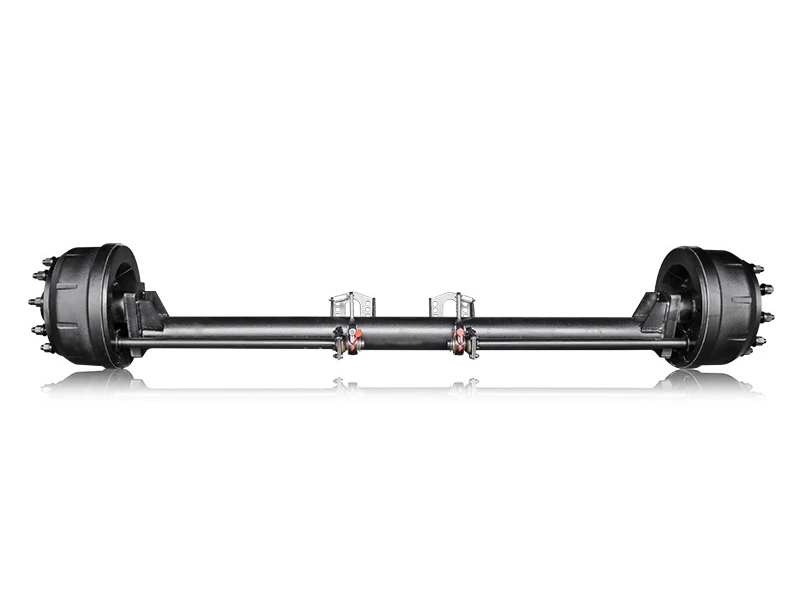

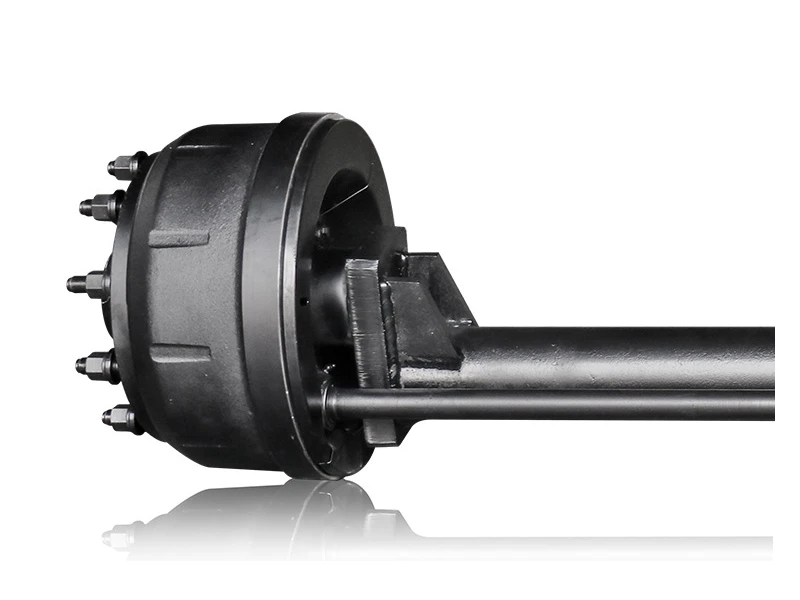

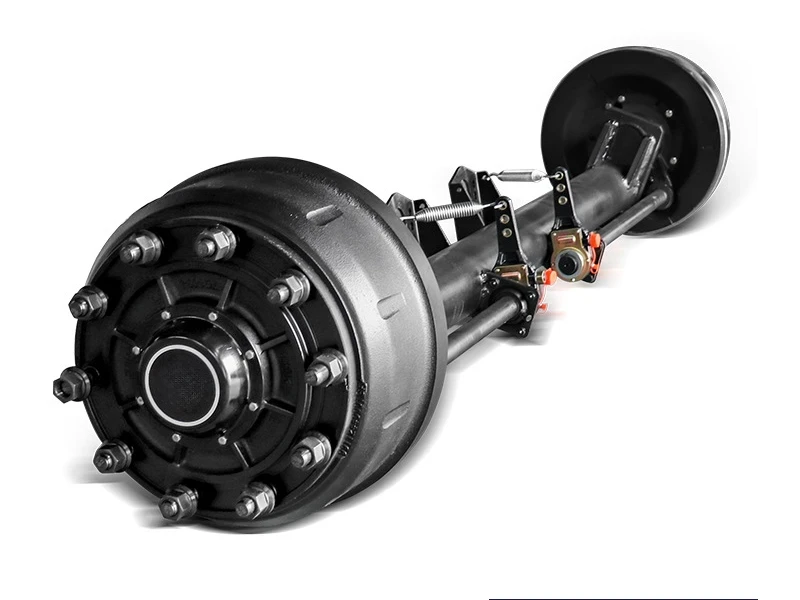

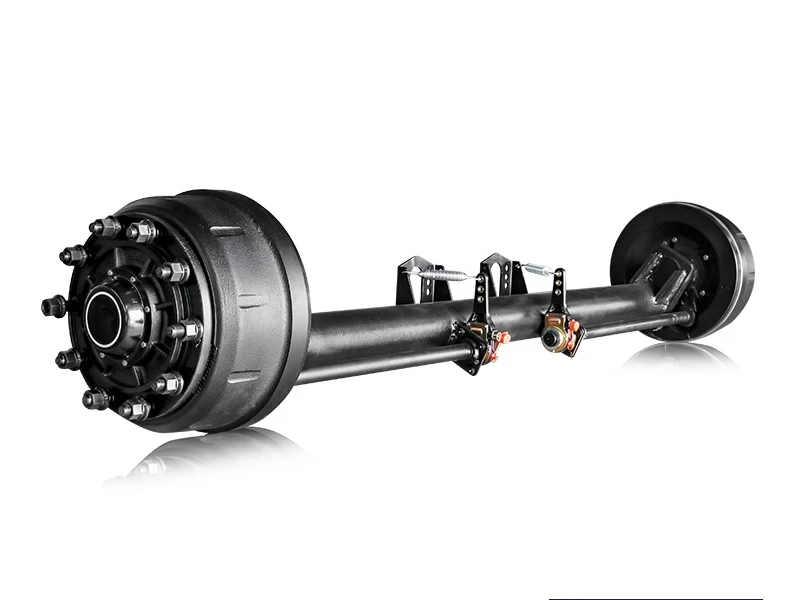

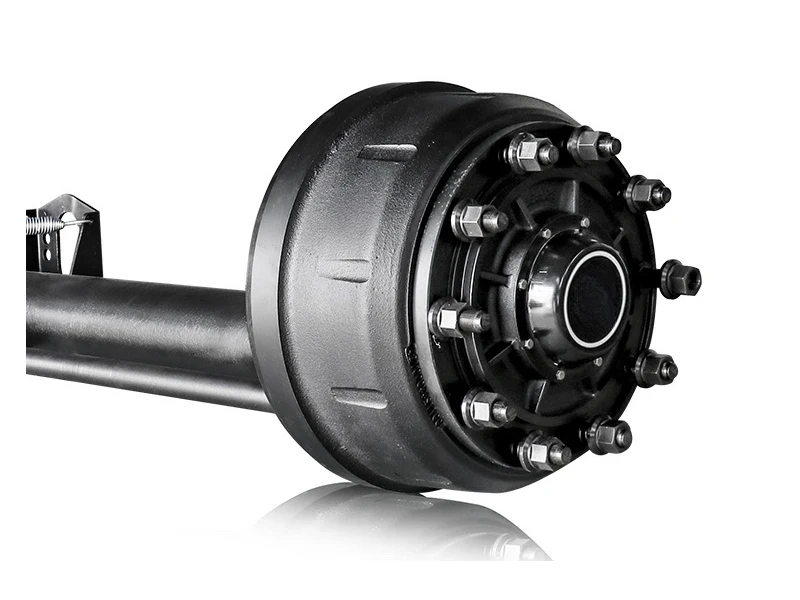

Product Gallery of kales 13-ton drop axle
