Container Shipping
Container loading of Kales semi trailer for export, ensuring secure fastening and space optimization.
Factory Direct ProductSand & Coal TransportTipper Semi-Trailer
35CBM Dump Semi-Trailer 35m³ Tipper Trailers for sale
Kales rear dump semi-trailers are equipped with 214 mm hydraulic cylinders, which provide both powerful performance and excellent quality, ensuring that tipping accidents do not happen. The rear box panel of the trailer is supported by four flipping brackets, ensuring the cargo is more secure. The suspension of the Kales rear dump semi-trailer is reinforced at multiple points. The trailer floor is 10 mm thick, and the central pin has a diameter of 70 mm, all of which enhance the trailer’s stability. The new dump truck is fitted with high-quality, famous brand lading gear that last for over 10 years.
Built for export buyers who need route-matched trailers, durable structure, and clear factory support before shipment.
Trailer Type
Semi trailer
Axles
Multi-axle options
Payload
Configured to project requirement
Rugged & Durable
Built with high-strength steel and branded components to withstand tough road conditions
Exceptional Support
From customization to maintenance, we provide full lifecycle support for your fleet
FAST DELIVERY
Optimized production lines to ensure on-time delivery for your orders
Product Overview
35m³ Rear Dump Semi-Trailer | 60T to 100T Mining Tipper
Value for Money: From Standard Duty to Mining Grade.
Payload: 60-100 Tons | Volume: 35m³ (Customizable) | Cylinder: HYVA 214mm
Engineered by David Chen
Chief Mining Equipment Designer
Kales Heavy Transport Division
Chief Mining Equipment Designer
Kales Heavy Transport Division
What is a Rear Dump Semi-Trailer?
A rear dump semi-trailer (also known as a tipper trailer) is a heavy-duty hydraulic transport vehicle designed for bulk materials. Equipped with a large-diameter HYVA lifting cylinder and a reinforced high-tensile steel box, the Kales dump trailer efficiently transports and unloads sand, gravel, coal, and heavy mining ores, handling payloads from 60 to 100 tons.
1. Standard High-Spec Features (Original Kales Quality)
Even our standard models outperform the competition. We retain all the robust features that made Kales famous, ensuring a lifespan of over 10 years:
- 214mm Hydraulic Cylinders: Equipped with large-diameter cylinders, these trailers provide powerful lifting performance and effectively prevent tipping/rollover accidents during unloading.

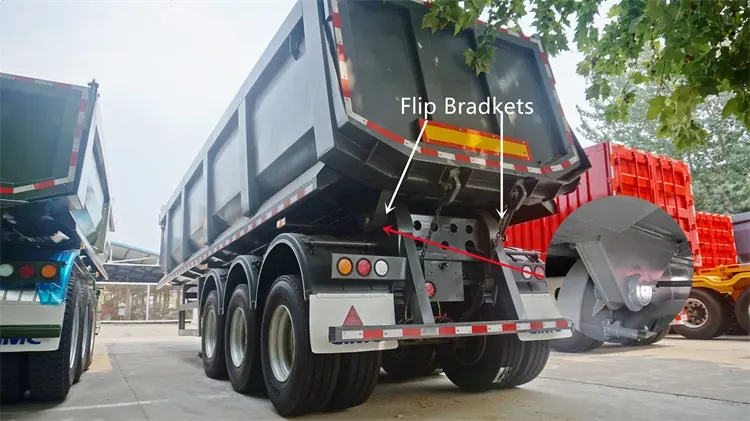

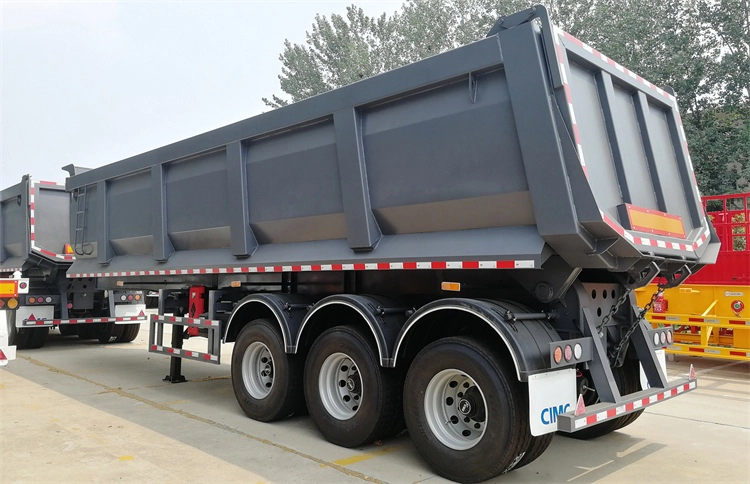

- 4 Flipping Brackets: Unlike standard trailers with only two, the Kales rear box panel is supported by four flipping brackets. This significantly enhances cargo security and tail-gate stability under pressure.
- 70mm Central Pin: A thickened 70mm diameter central balance pin ensures the suspension system remains stable under heavy loads.
- 10mm Thick Floor: The standard trailer floor is made of 10mm high-strength steel, designed to withstand the severe impact of loading rocks and gravel.
2. Payload Mastery: 50T to 100T Customization
Beyond our standard specs, we offer tailored chassis reinforcement for extreme mining conditions:
- Standard Heavy Duty (50-60 Tons):

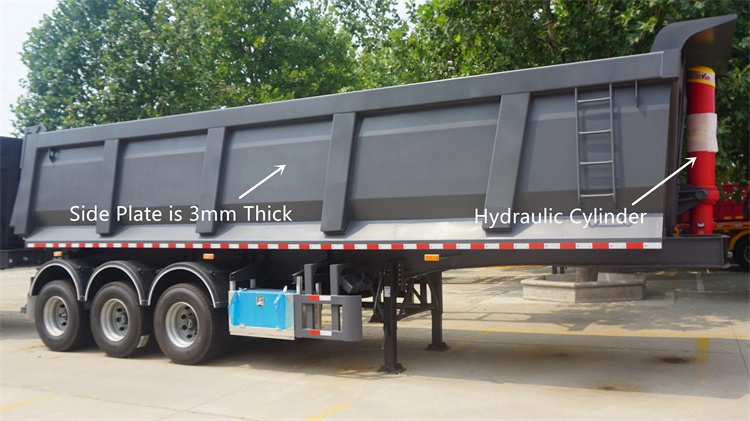

Perfect for sand, gravel, and general construction. Features the standard 10mm high-tensile floor and 8mm side walls. Standard 3-axle configuration. - Super Heavy Duty (80-100 Tons):
Designed for mining ore and large rocks. We upgrade the floor to 12mm-14mm HARDOX/High-Tensile Steel, reinforce the main beam with triple layers, and install 4 Axles for optimal weight distribution and braking power.
🌍 Field Record: 100T Copper Mine Operations
“We deploy Kales 4-axle tippers at our copper mine in the DRC. They are routinely loaded with 90-100 tons of raw ore. The 14mm reinforced floor withstands the drop impact of large rocks flawlessly, and the 214mm HYVA cylinder has never stalled or tipped during off-road unloading. It is a genuine mining-grade machine.”
— Chief Engineer, Open-Pit Mining Fleet, DRC
3. Global High-End Configuration Options
For customers requiring easier global maintenance or superior driving comfort, we now offer these premium upgrades:
🚛 Premium Axle Brands
In addition to our durable KALES axles, you can choose BPW (Germany), SAF (Germany), or FUWA. This ensures you can find spare parts anywhere in the world.
🧰 Suspension Choice

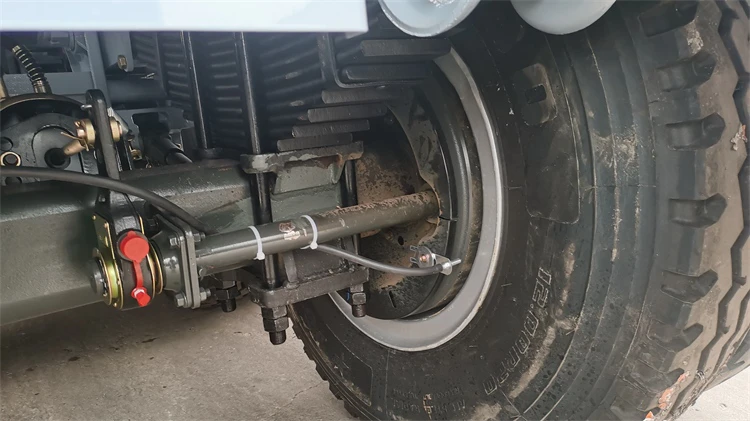

Air Suspension: Provides superior shock absorption. Mechanical Suspension: Reinforced at multiple points for extreme durability on rough terrain.
🛑 Safety Braking Systems
Standard with WABCO ABS. Upgrade to WABCO EBS (Electronic Braking System) for faster response times and anti-rollover stability.
🏗️ Lifting Power
Full set of HYVA lifting cylinders (or comparable top brand) featuring a widened 214mm diameter, designed to last over 10 years.
4. Technical Specifications
| Feature | Specification Details |
|---|---|
| External Dimension | 8,112 × 2,500 × 3,482 mm (Customizable) |
| Total Volume | 35 Cubic Meters (m³) (Standard) |
| Payload Capacity | 50T – 60T (Standard) / 80T – 100T (Mining Version) |
| Lifting System | HYVA Hydraulic Cylinder (214mm Wide Cylinder) |
| Box Material | Floor: 10mm-14mm / Side: 8mm-10mm High Tensile Steel |
| Rear Gate | Reinforced with 4 Flipping Brackets |
| Axles |
Customization
Built around your market requirement
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as steel thickness and reinforcement based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Shipping & Delivery
Practical export planning from factory to destination
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality & After-Sales
Lower risk before and after delivery
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- A 12-month warranty is available for the main beam and key components, with spare parts and remote technical support after delivery.
Cooperation Flow
How the order will actually move
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Logistics Display
Flexible Logistics Solutions: Safe & Cost-Effective Delivery
At Kales Vehicle, we understand that shipping costs are a major part of your investment. That’s why we offer multiple transport options tailored to your destination and budget.
Whether you choose Container Shipping for protection, Ro-Ro (Roll-on/Roll-off) for speed, or Bulk Cargo for cost savings, we ensure every trailer is handled with care. All vehicles undergo rigorous wax spraying and are covered with waterproof tarpaulins before shipment to prevent seawater corrosion during transit. We calculate the optimal stacking method (e.g., 3 units stacked together) to help you minimize freight costs.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Product FAQ
Questions buyers usually ask before ordering
Can this trailer be adapted for rough roads or overloaded routes?+
Yes. We can review your road conditions, legal load limits, and cargo type to recommend reinforcement, suspension, tires, and structural changes before production.
What information do you need for an accurate trailer quote?+
The fastest quote comes when you share cargo type, target market, preferred dimensions, expected payload, and any special configuration requirements.
How is this trailer usually shipped internationally?+
Depending on model size and destination, we can arrange bulk vessel, Ro-Ro, container, or multimodal sea-road transport and recommend the most practical route.
Do you support OEM branding and local compliance requests?+
Yes. We can add your logo, paint scheme, markings, and selected configuration changes while aligning the build with the compliance needs of your market.
