Container Shipping
Container loading of Kales semi trailer for export, ensuring secure fastening and space optimization.
Factory Direct ProductContainer & Bulk TransportFlatbed Semi Trailer

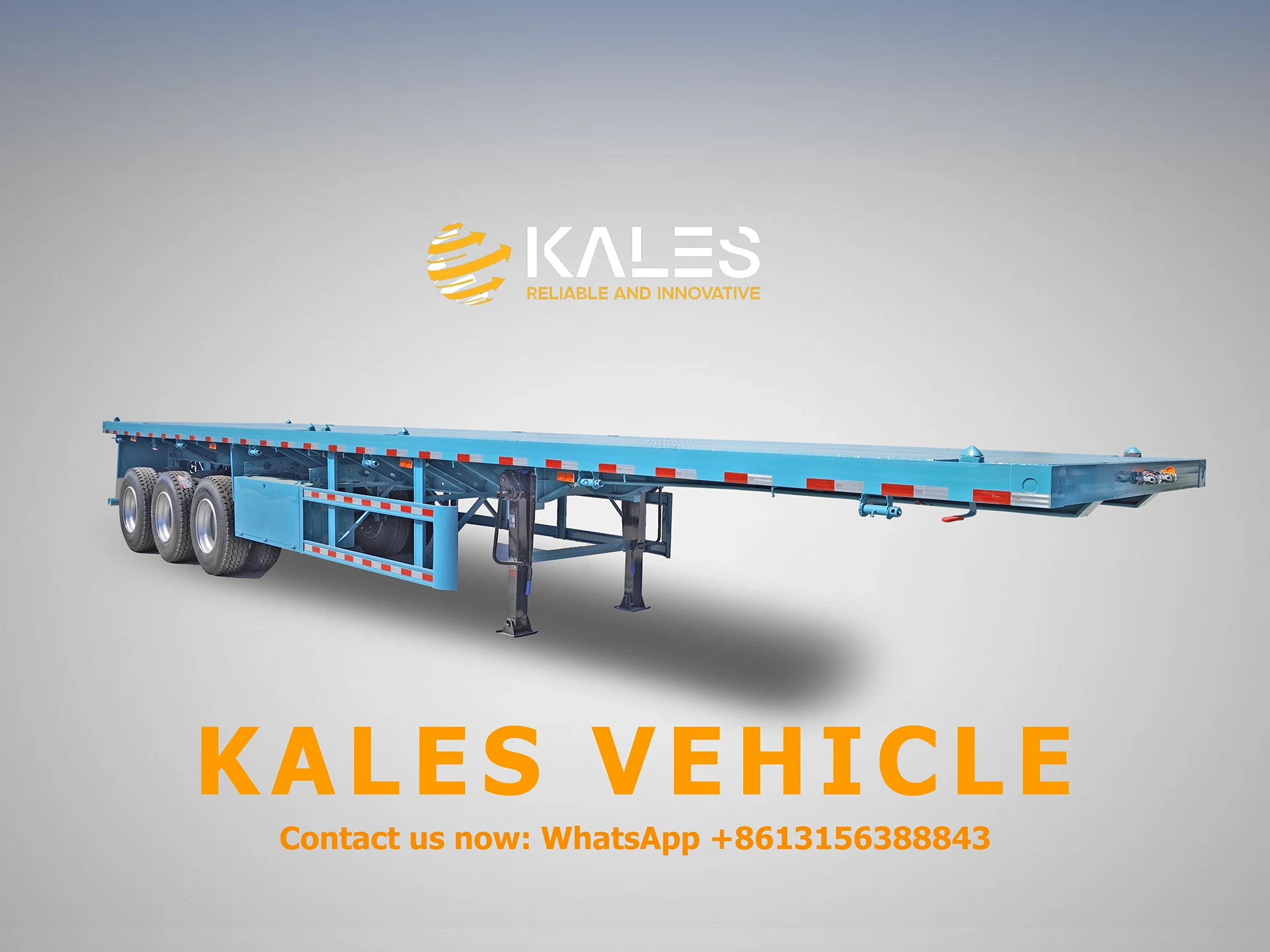

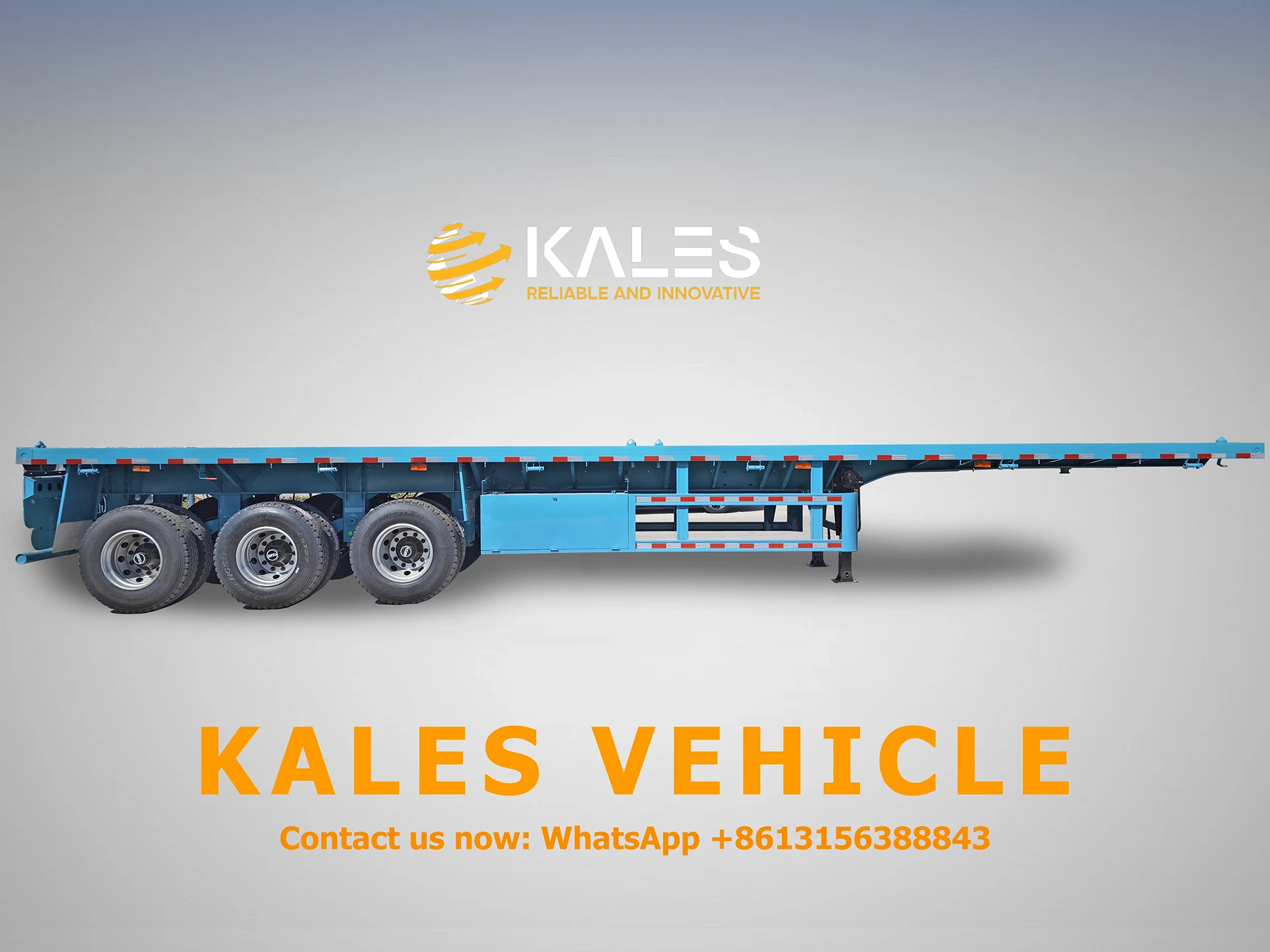

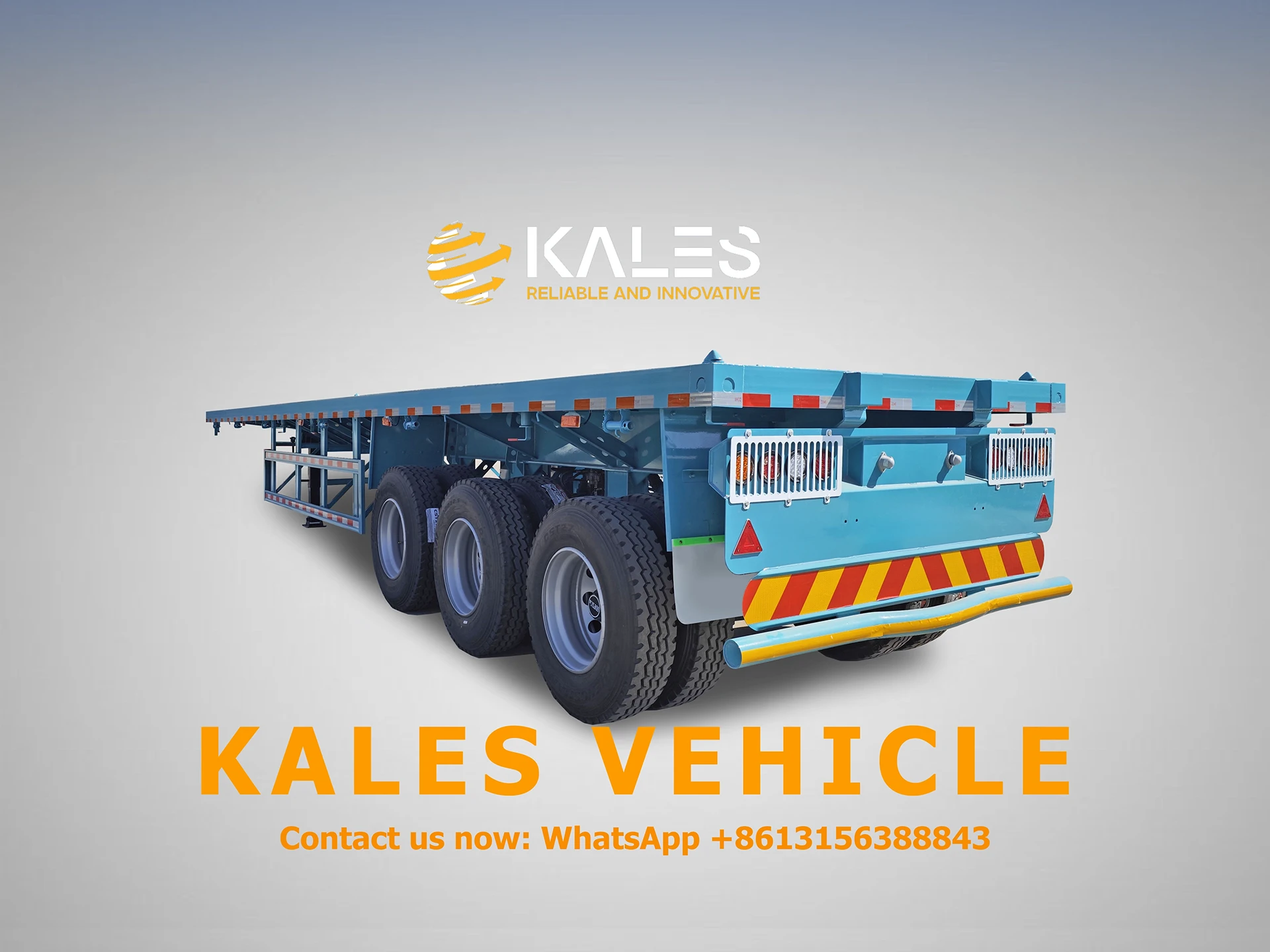

Kales 3-Axle 40ft Flatbed Trailer: The Reliable 40-50 Ton Workhorse for African Logistics
Need a trailer that survives rough African roads? Kales 3-Axle 40ft Flatbed Trailer features Q355 High-Strength Steel & Powder Coating. 50-ton payload. Shipping to Lagos, Mombasa, Tema. Get a factory quote!
Built for export buyers who need route-matched trailers, durable structure, and clear factory support before shipment.
Trailer Type
Semi trailer
Axles
Multi-axle options
Payload
Configured to project requirement
Rugged & Durable
Built with high-strength steel and branded components to withstand tough road conditions
Exceptional Support
From customization to maintenance, we provide full lifecycle support for your fleet
FAST DELIVERY
Optimized production lines to ensure on-time delivery for your orders
Product Overview
Is your current fleet suffering from cracked chassis, tire blowouts, or rapid rusting?
Logistics in Nigeria, Kenya, Tanzania, and Ghana demands equipment that can survive the toughest environments. Whether navigating pot-holed roads or humid coastal highways, standard trailers often fail within 2 years.
The Kales 3-Axle 40ft Flatbed Trailer is engineered differently. Built with premium Q355 High-Strength Alloy Steel and protected by Electrostatic Powder Coating, this trailer is the reliable partner for fleets hauling up to 50 tons safely.
1. The Backbone: Q355 Alloy Steel & Reinforced Structure
Structural integrity is the starting point of Kales quality. We understand that road hazards, overloading, and concentrated loads are daily challenges in African transport sectors.
A. Q355 Low Carbon High-Strength Steel
The main beam is constructed from premium Q355 alloy steel (Main beam height 500mm). Unlike standard mild steel (Q235) used by cheaper competitors, Q355 offers significantly better performance:
- Superior Rigidity: With a yield strength of 355 Mpa, it provides the structural support needed to carry heavy cargo loads without permanent deformation.
- Crack Resistance: The material composition specifically resists fatigue cracks caused by constant vibration on corrugated road surfaces.
B. Robotic Welding Technology
Key connections are welded using Automated Submerged Arc Robotics. Manual welding often results in uneven seams. Our robotic process ensures deep, uniform penetration and consistent quality, guaranteeing a chassis life that is 2-3 years longer than manually welded trailers.
C. Reinforced Gooseneck
High-stress areas, specifically the gooseneck, are reinforced with double-layer steel plates. This crucial reinforcement ensures the trailer resists bending and twisting when encountering severe bumps or steep gradients.
Visual: Double-reinforced Gooseneck Structure
2. Quality Control: Tested Before Delivery
We don’t just build trailers; we test them to the limit so you don’t face breakdowns on the road.
✅ 150% Overload TestWe randomly select trailers from each batch to undergo a static load test with 150% of the rated capacity to ensure the main beam does not deform.
✅ X-Ray Flaw DetectionWe use X-Ray equipment to check the main beam welds for any hidden air bubbles or cracks that could cause failure later.
✅ Performance TestEvery trailer undergoes a braking system test (air leakage check) and electrical circuit test before leaving the factory gate.
3. Advanced Protection: Electrostatic Powder Coating
Rust eats into your resale value. Kales sets itself apart from standard manufacturers with a superior finishing process.
Step 1: The ProcessFirst, the chassis is sandblasted to remove all impurities. Then, it undergoes full Electrostatic Powder Coating, followed by high-temperature baking (curing) at 200°C.
Step 2: The BenefitThis creates a durable “shell” that offers superior adhesion and resistance to scratches, strong UV radiation (African sun), and salt corrosion.
Step 3: The ResultYour trailer maintains a professional appearance and resists corrosion for years, significantly improving its long-term resale value.

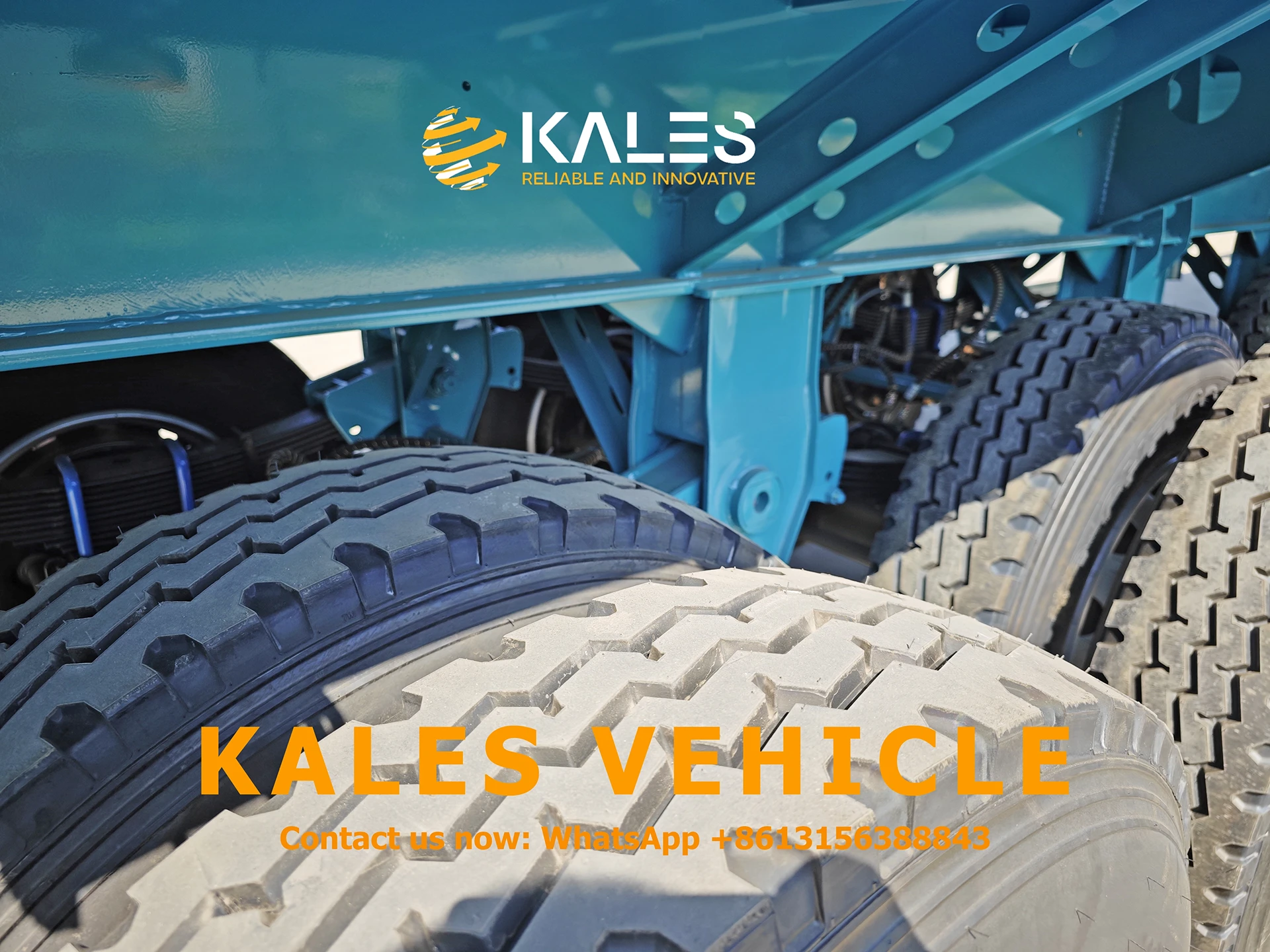

Visual: Premium finish resisting corrosion
4. Running Gear: Optimized for Stability and Payload
The running gear is configured for reliable performance, balancing stability and load capacity on mixed road conditions.
1. Heavy-Duty AxlesEquipped with 3 units of 13-Ton Axles (also available in 16-Ton for mining use). Perfectly matched for a total load capacity of up to 50 tons. Brand Options: We offer premium German BPW, Chinese top-tier FUWA, or the cost-effective Kales brand.
2. Robust SuspensionMechanical Multi-Leaf Spring Suspension (10 layers x 13mm thickness x 90mm width). Equipped with a 70mm center balance pin. This durable system effectively absorbs road shocks while requiring minimal maintenance compared to air suspension.
3. Tires: Why 315/65R22.5?Fitted with 315/65R22.5 low-profile tires. This specific size lowers the trailer’s center of gravity, providing superior lateral stability and dramatically reducing the risk of rollover on curved highway sections.
*Note: If your operating conditions involve deep mud or extreme off-road, we can switch to standard 315/80R22.5 or 12.00R20 tires upon request.

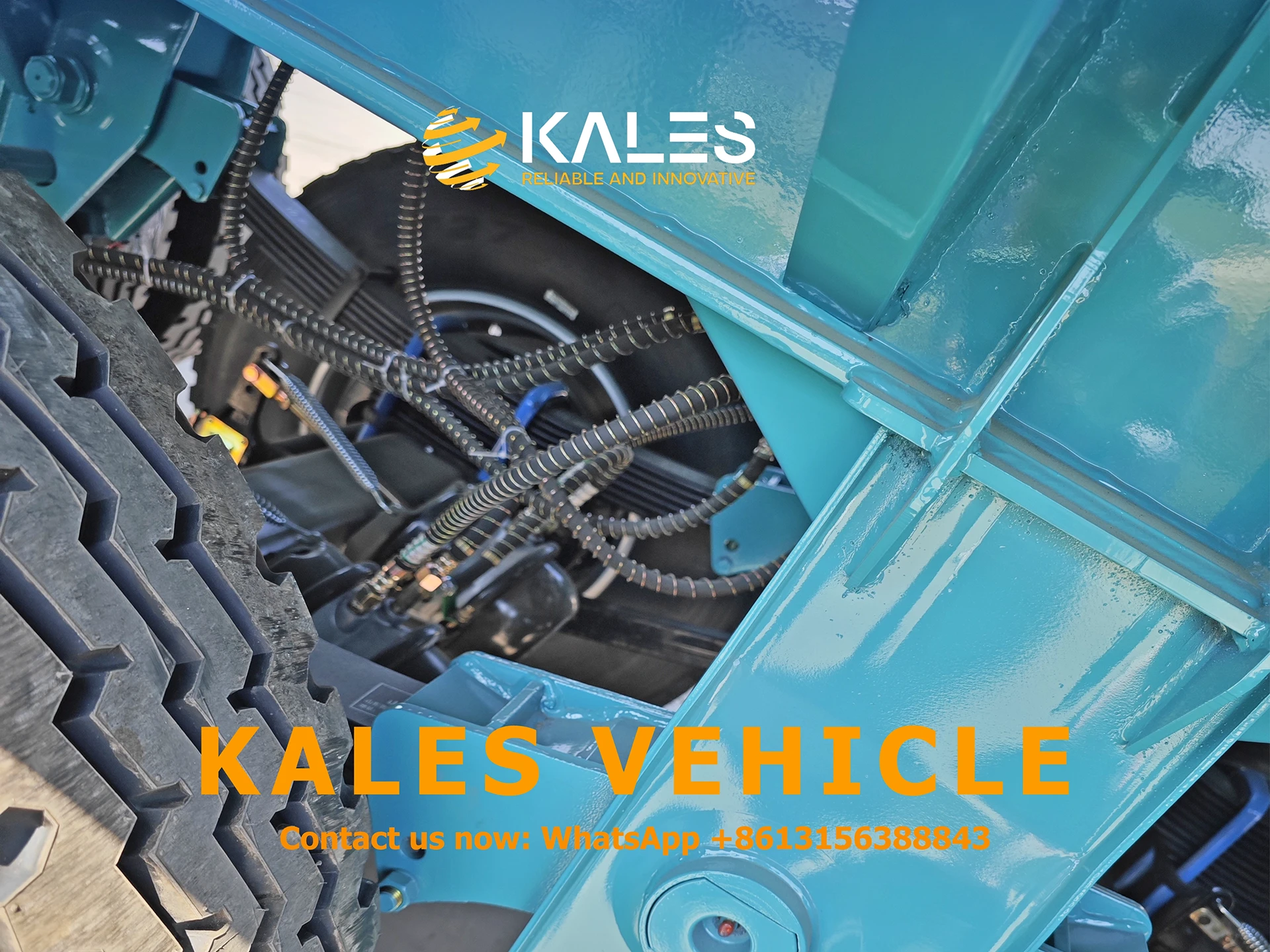

Visual: 13-Ton Axles + 10-Layer Leaf Springs
5. Versatile Cargo Handling: Containers & Bulk
Flexibility is key for logistics planners aiming for high utilization rates across different freight types (return trips).
📦 Container Ready
Equipped with 12 units of Twist Locks, capable of securing 1x40ft or 2x20ft ISO standard containers safely. The locks are designed for quick operation.
🛡️ Anti-Slip Floor
The deck features a 3mm thick checkered steel plate. This textured surface prevents loose cargo from shifting during acceleration and protects the chassis from moisture intrusion.
🪵 Bulk Cargo Ready
Comes standard with 20 units of Rope Tighteners along the side beams. This allows drivers to securely tie down diverse cargo, from bagged cement to timber and steel coils.
6. Safety First: Lighting & Braking
Kales ensures every trailer meets high standards for operational safety.
- WABCO Braking System: Features a dual-circuit air brake system with ABS (Anti-lock Braking System) + Emergency Relay Valve. This prevents dangerous wheel lock-up during emergency braking on slippery or gravel roads, reducing stopping distance significantly.

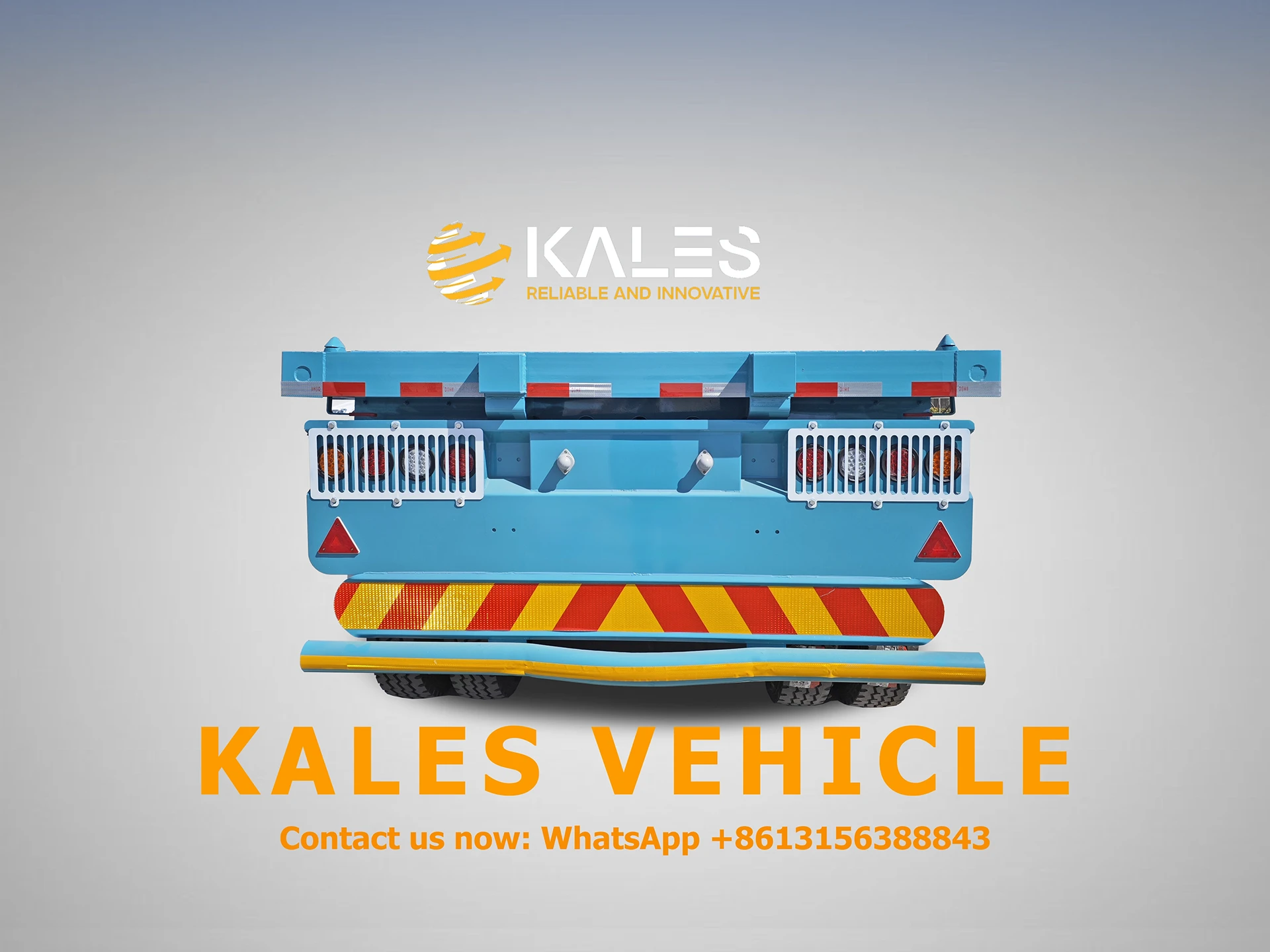

- 24V LED System: A complete LED lighting system provides brighter, longer-lasting illumination. The system is housed in protective steel cages to prevent damage from debris and theft protection during parking.
7. Shipping Solution: Cost-Saving & Anti-Rust
💰 Cost-Effective Shipping
We stack 3 trailers per bundle to significantly reduce the freight cost per unit when shipping via Bulk Cargo Ship. This stacking method saves over 30% on ocean freight.
🛡️ Protection Against Seawater
Before loading onto the Bulk Cargo Ship, every trailer is:
- Sprayed with Wax: To create a barrier against salty sea air.
- Covered with Waterproof Cloth: To prevent direct contact with seawater and rain during the 30-45 day voyage.
8. Full Technical Specifications
| Feature | Specification Details |
|---|---|
| Overall Dimensions | 12,500 × 2,500 × 1,550 mm (Standard 40ft) |
| Payload Capacity | 40 Tons – 50 Tons (Customizable up to 60T) |
| Main Beam Material | Q355 High-Strength Alloy Steel (500mm Height) |
| Axles | 3 × 13-Ton Axles (Brand: BPW / FUWA / Kales) |
| Suspension | Mechanical Leaf Spring (Standard) or Air Suspension (Option) |
| Tires | 12 pcs 315/65R22.5 (Optional: 315/80R22.5 / 12.00R20) |
| Braking System | WABCO Braking System with ABS + Emergency Valve |
| Twist Locks | 12 Units (For 1x40ft or 2x20ft Containers) |
| Landing Gear | JOST Brand 28-Ton Two-speed |
| Painting | Electrostatic Powder Coating + High-Temp Baking |
9. Why Do African Fleets Trust Kales Vehicle?
📈
Market Experience
We export over 150 units annually to East and West Africa, including major logistics hubs. We know your roads.
🏭
Factory Direct
13 years of manufacturing experience with automated production lines ensuring consistent quality and competitive factory pricing.
🔧
Global Standard Parts
We use global components (BPW/FUWA/WABCO) widely available in local markets. Plus, we include a Free Spare Parts Kit.
📜
Warranty Policy
We offer a 12-Month Quality Guarantee on the main beam. If it fractures under normal use, we replace it immediately.
10. FAQ for African Buyers
Q1: Which suspension is better for African roads: Air or Spring?
For most African routes involving gravel or mixed road conditions, we recommend the Mechanical Leaf Spring Suspension. It is more durable, cheaper to maintain, and parts are widely available. Air suspension is only recommended for sensitive cargo on strictly paved highways.
Q2: Can I customize the color and logo?
Yes! We offer Free Customization for painting colors (RAL system) and can paint your company logo on the side beams at no extra cost.
Q3: How long is the delivery time?
Generally, it takes 15-20 days for production after receiving the deposit. Shipping time depends on the destination port (e.g., 35-45 days to Lagos/Mombasa/Tema).
Customization
Built around your market requirement
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as steel thickness and reinforcement based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Shipping & Delivery
Practical export planning from factory to destination
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality & After-Sales
Lower risk before and after delivery
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- A 12-month warranty is available for the main beam and key components, with spare parts and remote technical support after delivery.
Cooperation Flow
How the order will actually move
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Logistics Display
Flexible Logistics Solutions: Safe & Cost-Effective Delivery
At Kales Vehicle, we understand that shipping costs are a major part of your investment. That’s why we offer multiple transport options tailored to your destination and budget.
Whether you choose Container Shipping for protection, Ro-Ro (Roll-on/Roll-off) for speed, or Bulk Cargo for cost savings, we ensure every trailer is handled with care. All vehicles undergo rigorous wax spraying and are covered with waterproof tarpaulins before shipment to prevent seawater corrosion during transit. We calculate the optimal stacking method (e.g., 3 units stacked together) to help you minimize freight costs.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Product FAQ
Questions buyers usually ask before ordering
Can this trailer be adapted for rough roads or overloaded routes?+
Yes. We can review your road conditions, legal load limits, and cargo type to recommend reinforcement, suspension, tires, and structural changes before production.
What information do you need for an accurate trailer quote?+
The fastest quote comes when you share cargo type, target market, preferred dimensions, expected payload, and any special configuration requirements.
How is this trailer usually shipped internationally?+
Depending on model size and destination, we can arrange bulk vessel, Ro-Ro, container, or multimodal sea-road transport and recommend the most practical route.
Do you support OEM branding and local compliance requests?+
Yes. We can add your logo, paint scheme, markings, and selected configuration changes while aligning the build with the compliance needs of your market.
