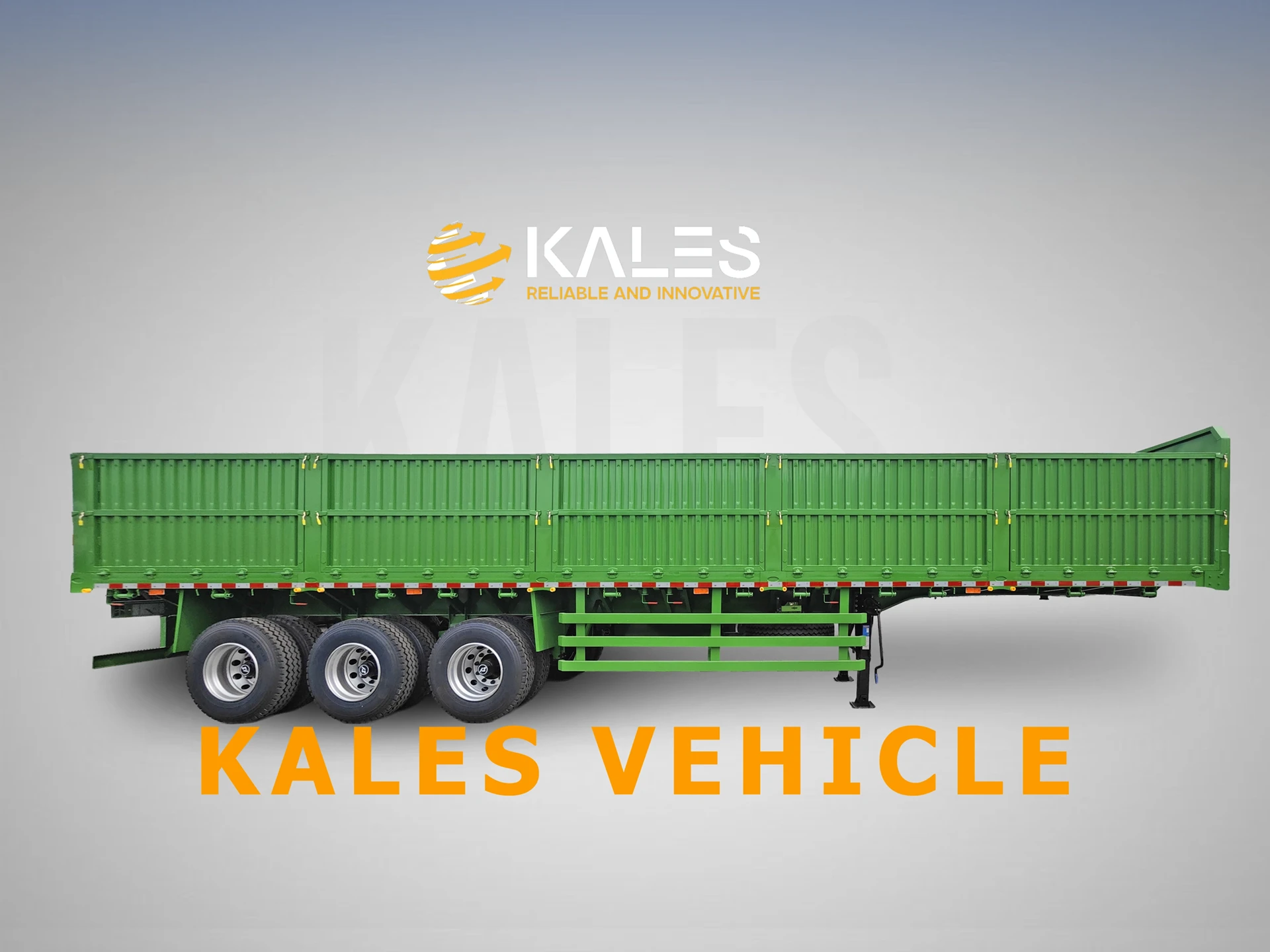

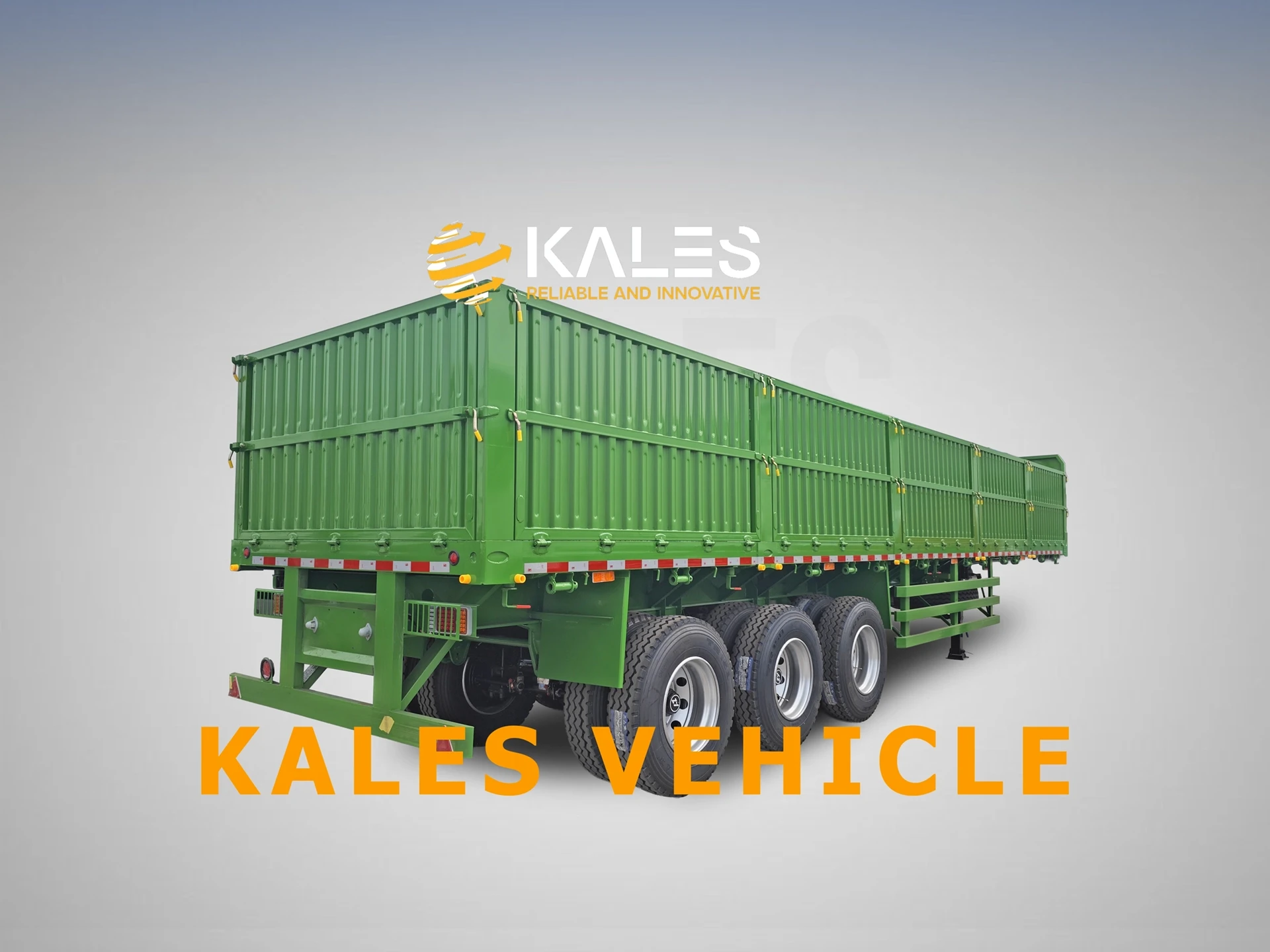

Kales 60 Ton 3-Axle Drop-Side Semi Trailer
Kales 60 Ton 3-Axle Drop Side Trailer. Reinforced T700 steel chassis & suspension designed for African roads. Multi-purpose for bulk & containers. Factory Direct!
Built for export buyers who need route-matched trailers, durable structure, and clear factory support before shipment.
Trailer Type
sidewall
Axles
3 axles
Payload
60
Rugged & Durable
Built with high-strength steel and branded components to withstand tough road conditions
Exceptional Support
From customization to maintenance, we provide full lifecycle support for your fleet
FAST DELIVERY
Optimized production lines to ensure on-time delivery for your orders
Product Overview
The “King of Africa” | T700 High-Strength Steel | Multi-Purpose Cargo Transport
One Trailer. Two Uses. Maximum Profit.
Applications: Bulk Cargo (Cement/Grain) & ISO Containers (20ft/40ft)
What is a Side Wall Semi Trailer? A 3-axle side wall semi trailer (also known as a drop side trailer) is a heavy-duty, multi-purpose transport vehicle designed with a 60-ton payload capacity and removable side panels. Manufactured with T700 high-strength steel, it is engineered specifically for African road conditions to transport bulk cargo, bagged cement, and ISO containers safely.
*Heavy Duty 60 Ton Side Wall Trailer β Customizable Height & Length*
π Why is this the Best-Selling 3-Axle Trailer in Africa?
Kales understands that road conditions in Africa can be extremely tough. That’s why we don’t just build trailers; we build heavy-duty tanks. Our 3-Axle Side Wall Semi Trailer combines massive load capacity with incredible versatility, making it the top choice for logistics companies moving cement, grain, steel, and containers.
π T700 High-Strength Steel
We refuse to use common Q345 steel. Our main beams are manufactured using T700 High-Strength Steel, which offers superior yield strength and resistance to bending, ensuring the chassis lasts for decades under 60-ton loads.
π 2-in-1 Versatility

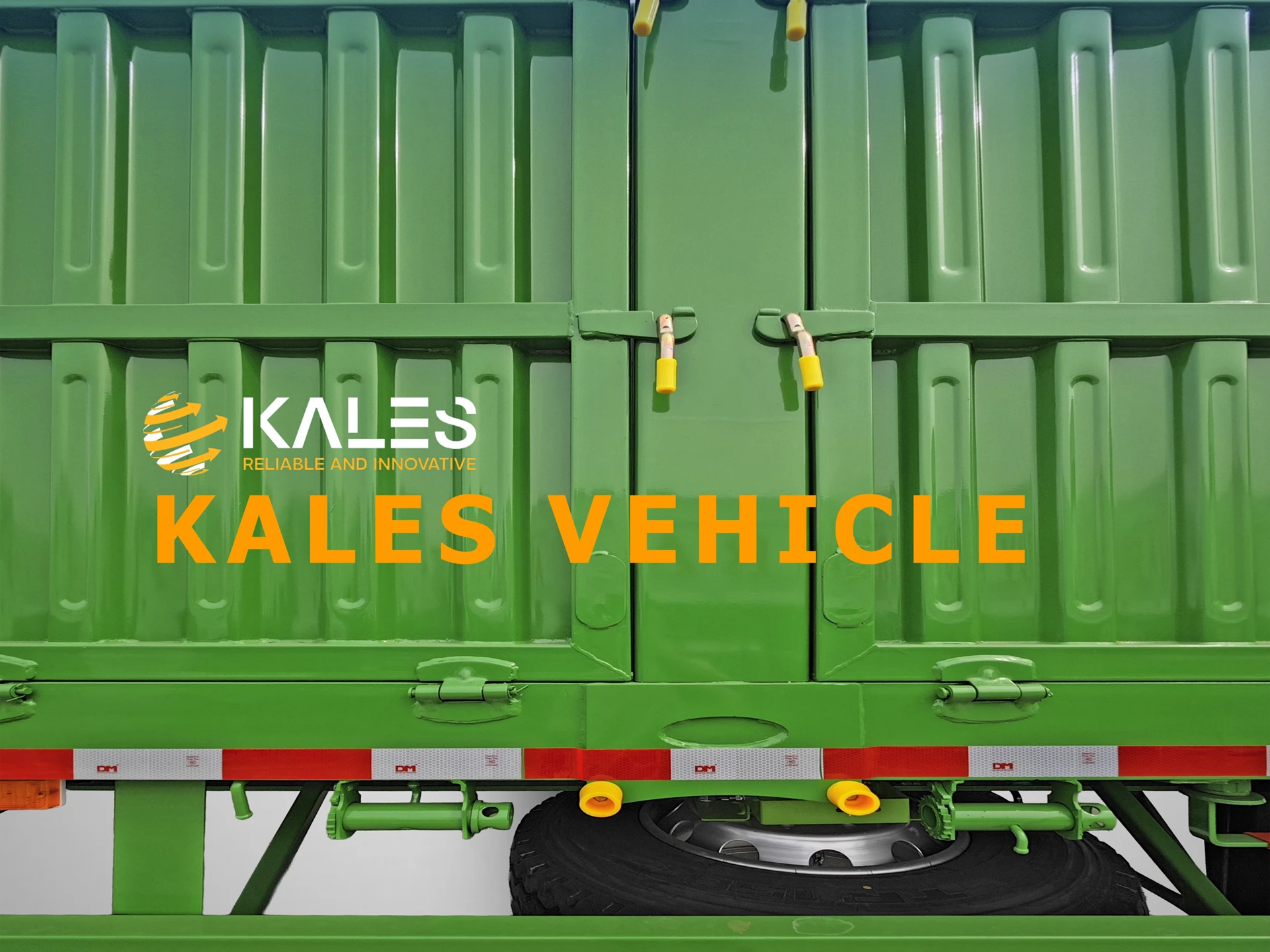

Equipped with 12 Container Twist Locks and removable side walls. Use it as a cargo trailer for bulk goods, or completely remove the drop sides to function as a flatbed trailer for 20ft/40ft shipping containers.
π Reinforced for Overloading
The mechanical suspension is heavily thickened, and the bottom platform is reinforced with 3mm checkered steel. Even on rough off-road terrain, the chassis remains stable without deformation.
π· Built for Heavy Duty Work
Removable Side Walls
(Easy Forklift Access)
Thickened Suspension
(Designed for African Roads)

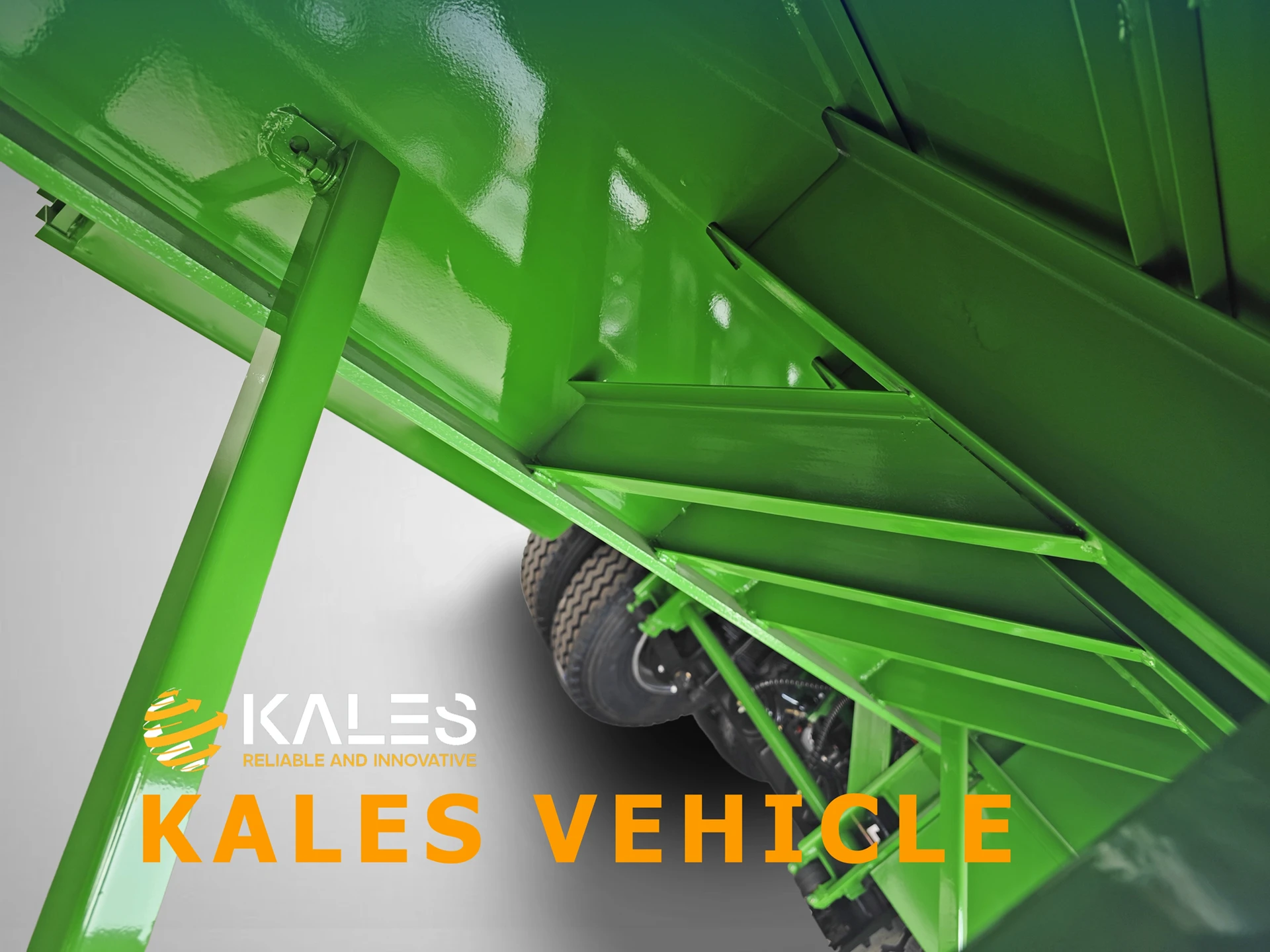

Auto Submerged Arc Welding
(No rust, No cracks)
ποΈ Applications: One Trailer, Many Jobs
Maximize your return on investment with a trailer that adapts to your daily cargo requirements.
- β Bulk Cargo Transport: The drop-side structure is ideally suited for transporting bagged cement, agricultural grain, animal feed, and steel coils securely.
- β Container Logistics: To transport ISO containers, simply remove the side panels and utilize the 12 integrated twist locks to carry one 40ft container or two 20ft containers safely.
π§ Technical Specifications
| Category | Specification Details |
|---|---|
| Product Name | 3-Axle Side Wall Semi Trailer (Drop Side Trailer) |
| Payload Capacity | 60 Tons (Heavy Duty Rating) |
| Overall Dimensions | 12,500 x 2,500 x 2,200 mm (Customizable upon request) |
| Main Beam Material | T700 High Strength Steel Top Plate: 14mm | Middle: 8mm | Bottom: 16mm Process: Automatic Submerged Arc Welding |
| Side Beam Structure | 16# Heavy Duty Channel Steel |
| Platform Floor | 3mm Reinforced Checkered/Diamond Plate |

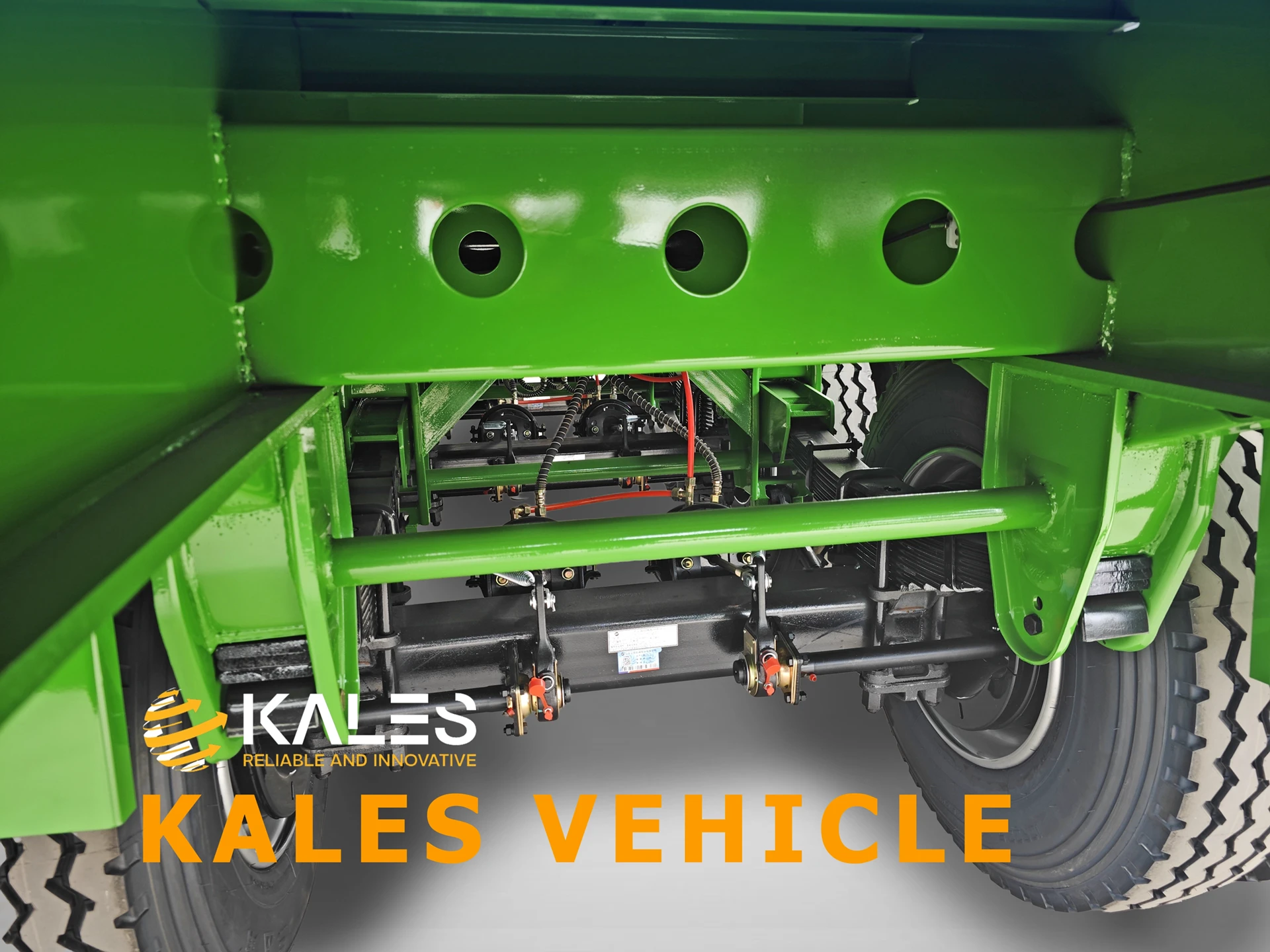

| Axles | 3 x 13T/16T FUWA Axles (BPW / SAF Optional) |

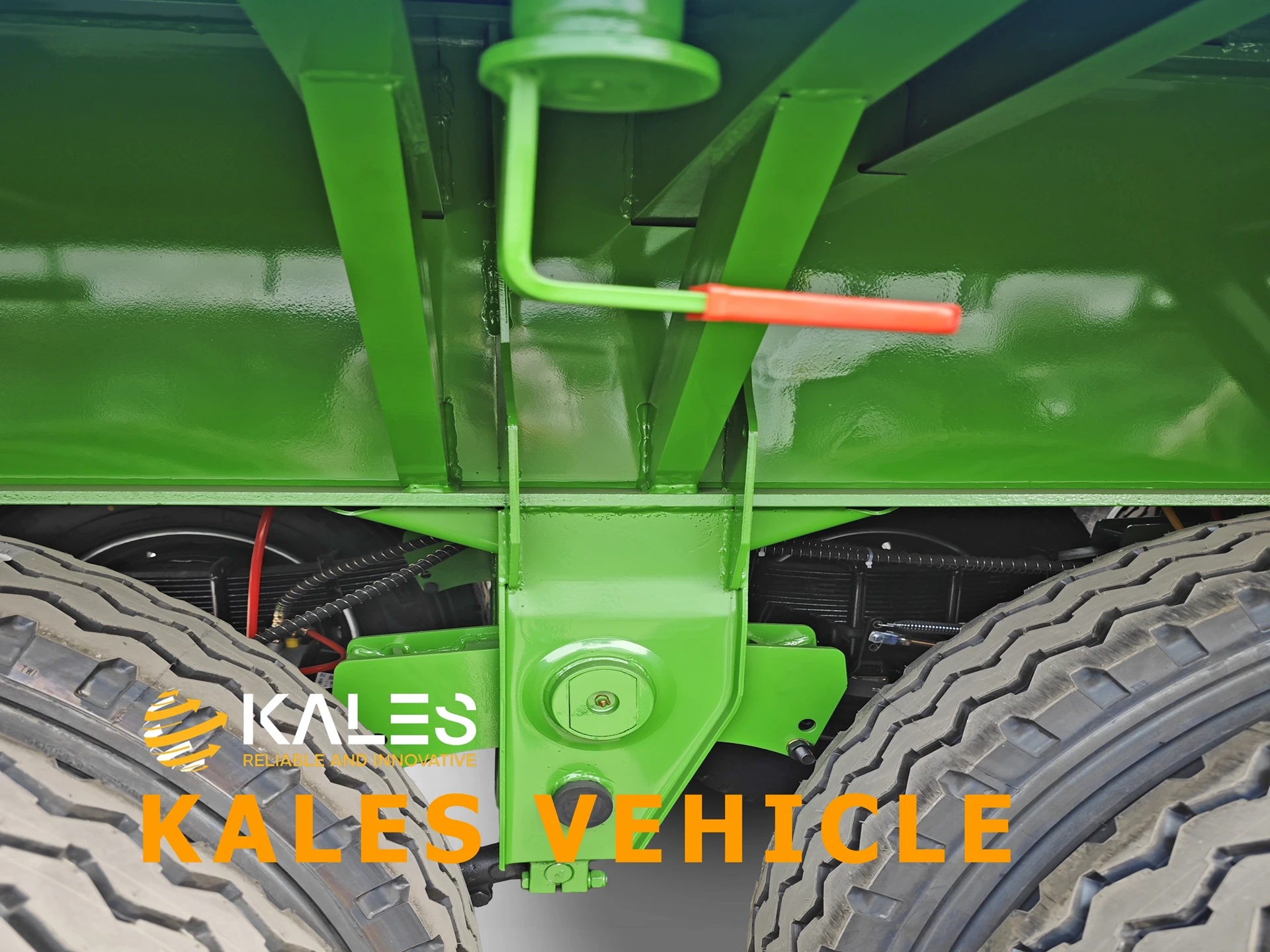

| Suspension System | Thickened Mechanical Suspension designed for rough off-road terrain |
| Leaf Springs | Heavy Duty Specification: 90mm(W) Γ 13mm(T) Γ 10 Layers |
| Tires & Rims | Tires: 12R22.5 (12 pieces) Rims: Steel 9.00Γ22.5 (12 pieces) |

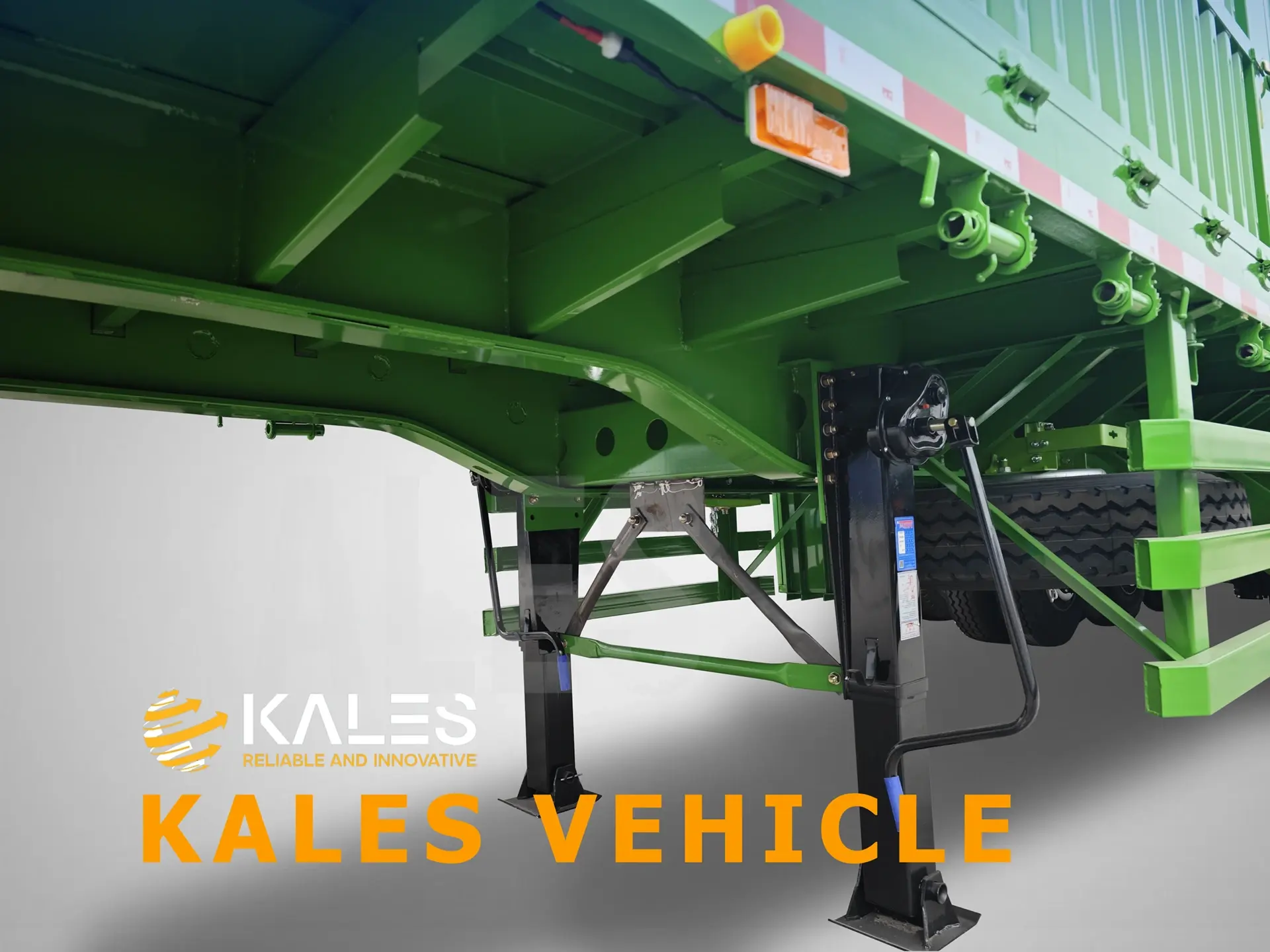

| Landing Gear | Standard 28 Ton Linkage Type (JOST Optional) |
| Braking System | Dual Circuit Braking System with emergency relay valve (ABS/EBS Optional) |
| Paint Coating | Polyurethane Paint (Double Component for rust prevention) |
| Accessories included | Spare Tire Carriers (x2), Standard Tool Box (x1), 12 Twist Locks |
π€
Kales Promise: Quality or Compensation
We are a direct manufacturer, not a trading company. We protect your investment.
- β
10x Compensation Guarantee:
We use only brand new, original parts. If any counterfeit part is found on our trailer, we will compensate you 10 times its value. - β
Factory Direct Price:
There is no middleman. You get the lowest wholesale price directly from our manufacturing line, ensuring your best ROI. - β
Lifetime Technical Support:
We provide perfect pre-sales and after-sales service. Our 90+ patents and 12 years of export experience are at your service.
β Frequently Asked Questions (FAQ)
Q: What customization options do you offer for the side wall trailer?
A: Kales Vehicle offers full structural customization to suit your local transport needs.
- Side Wall Height: The standard height is 600mm/800mm, but we can customize it up to 1000mm or add upper fence extensions for bulkier cargo.
- Axles & Tires: You can select premium brands like FUWA, BPW, or SAF. Tires can be tubeless or radial, such as Triangle brand.
- Color & Logo: We provide free polyurethane painting customization and logo printing to match your corporate fleet branding.
Q: How do you ship the trailers to save on freight costs?
A: We offer two highly cost-effective shipping methods to reduce ocean freight fees:
1. Stacking Method (Bulk Ship): We bolt and stack 3 trailers together as a single bundle, which drastically reduces the shipping volume and freight fees to African ports.
2. Container Shipment: For specific models, we can design the rear chassis part to be bolted so that the entire trailer fits inside a 40ft HQ container, offering the lowest possible shipping rate.
1. Stacking Method (Bulk Ship): We bolt and stack 3 trailers together as a single bundle, which drastically reduces the shipping volume and freight fees to African ports.
2. Container Shipment: For specific models, we can design the rear chassis part to be bolted so that the entire trailer fits inside a 40ft HQ container, offering the lowest possible shipping rate.
Q: Why is T700 steel better than standard Q345 steel?
A: T700 high-strength steel is vastly superior to standard Q345 because it offers a significantly higher yield strength. This allows the side wall trailer to carry extreme heavy loads (up to 60 Tons) without the main beam bending or fracturing, making the chassis far more durable for long-term use on rough roads.
Q: What is the production delivery time for this trailer?
A: The standard production time for our side wall trailers is between 10 to 15 working days. For fully customized fleet orders, the manufacturing process usually takes about 20 days, ensuring fast delivery for your logistics projects.
Q: What are your accepted payment terms?
A: Our standard payment term is T/T (30% deposit to start production, and the 70% balance paid after production is finished and video/photos are verified). We also accept L/C (Letter of Credit) for large volume orders.
60% of Our Customers Buy Again. Find Out Why.
20 Years Experience. 90+ Patents. Premium Quality.
Factory Direct Sales = Lower Price + Better Quality
Customization
Built around your market requirement
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as high strength steel based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Shipping & Delivery
Practical export planning from factory to destination
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality & After-Sales
Lower risk before and after delivery
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- A 12-month warranty is available for the main beam and key components, with spare parts and remote technical support after delivery.
Cooperation Flow
How the order will actually move
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Logistics Display
Flexible Logistics Solutions: Safe & Cost-Effective Delivery
At Kales Vehicle, we understand that shipping costs are a major part of your investment. Thatβs why we offer multiple transport options tailored to your destination and budget.
Whether you choose Container Shipping for protection, Ro-Ro (Roll-on/Roll-off) for speed, or Bulk Cargo for cost savings, we ensure every trailer is handled with care. All vehicles undergo rigorous wax spraying and are covered with waterproof tarpaulins before shipment to prevent seawater corrosion during transit. We calculate the optimal stacking method (e.g., 3 units stacked together) to help you minimize freight costs.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Product FAQ
Questions buyers usually ask before ordering
Can this sidewall be adapted for rough roads or overloaded routes?+
Yes. We can review your road conditions, legal load limits, and cargo type to recommend reinforcement, suspension, tires, and structural changes before production.
What information do you need for an accurate trailer quote?+
The fastest quote comes when you share cargo type, target market, preferred dimensions, expected 60, and any special configuration requirements.
How is this trailer usually shipped internationally?+
Depending on model size and destination, we can arrange bulk vessel, Ro-Ro, container, or multimodal sea-road transport and recommend the most practical route.
Do you support OEM branding and local compliance requests?+
Yes. We can add your logo, paint scheme, markings, and selected configuration changes while aligning the build with the compliance needs of your market.
