Container Shipping
Container loading of Kales semi trailer for export, ensuring secure fastening and space optimization.
Factory Direct ProductSkeletal Trailer
Kales 4-Axle 12m Container Skeleton Semi-Trailer
Kales 4-Axle 12m Skeleton Trailer. Lightweight T700 steel & aluminum design. Euro standard with liftable axles & disc brakes. Ideal for reefer containers. Get a Quote!
Built for export buyers who need route-matched trailers, durable structure, and clear factory support before shipment.
Trailer Type
Semi trailer
Axles
Multi-axle options
Payload
Configured to project requirement
Rugged & Durable
Built with high-strength steel and branded components to withstand tough road conditions
Exceptional Support
From customization to maintenance, we provide full lifecycle support for your fleet
FAST DELIVERY
Optimized production lines to ensure on-time delivery for your orders
Product Overview

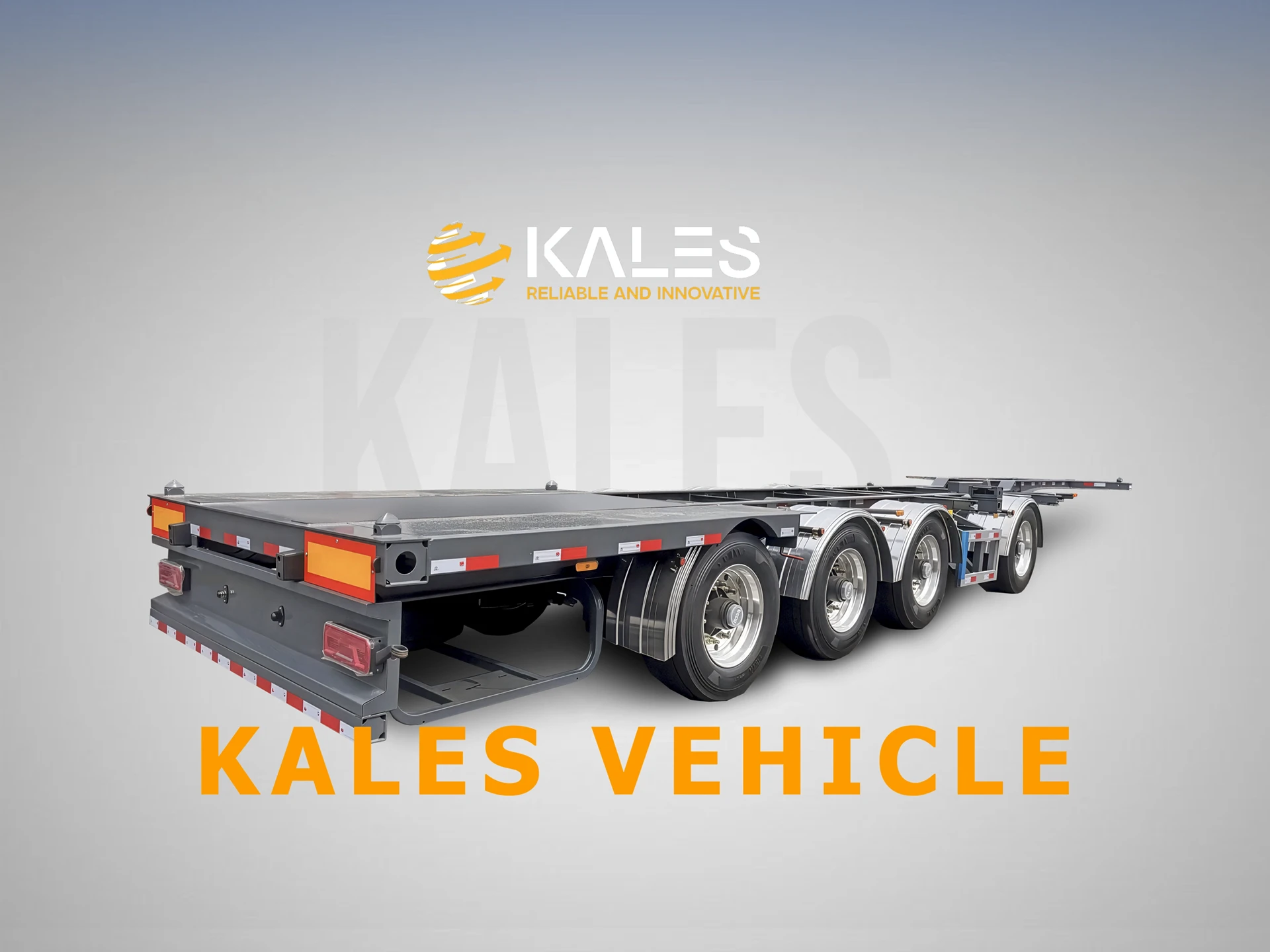

European Standard | T700 High-Strength Steel | Aluminum Lightweight Design
Lighter Weight. Higher Payload. Maximum Efficiency.

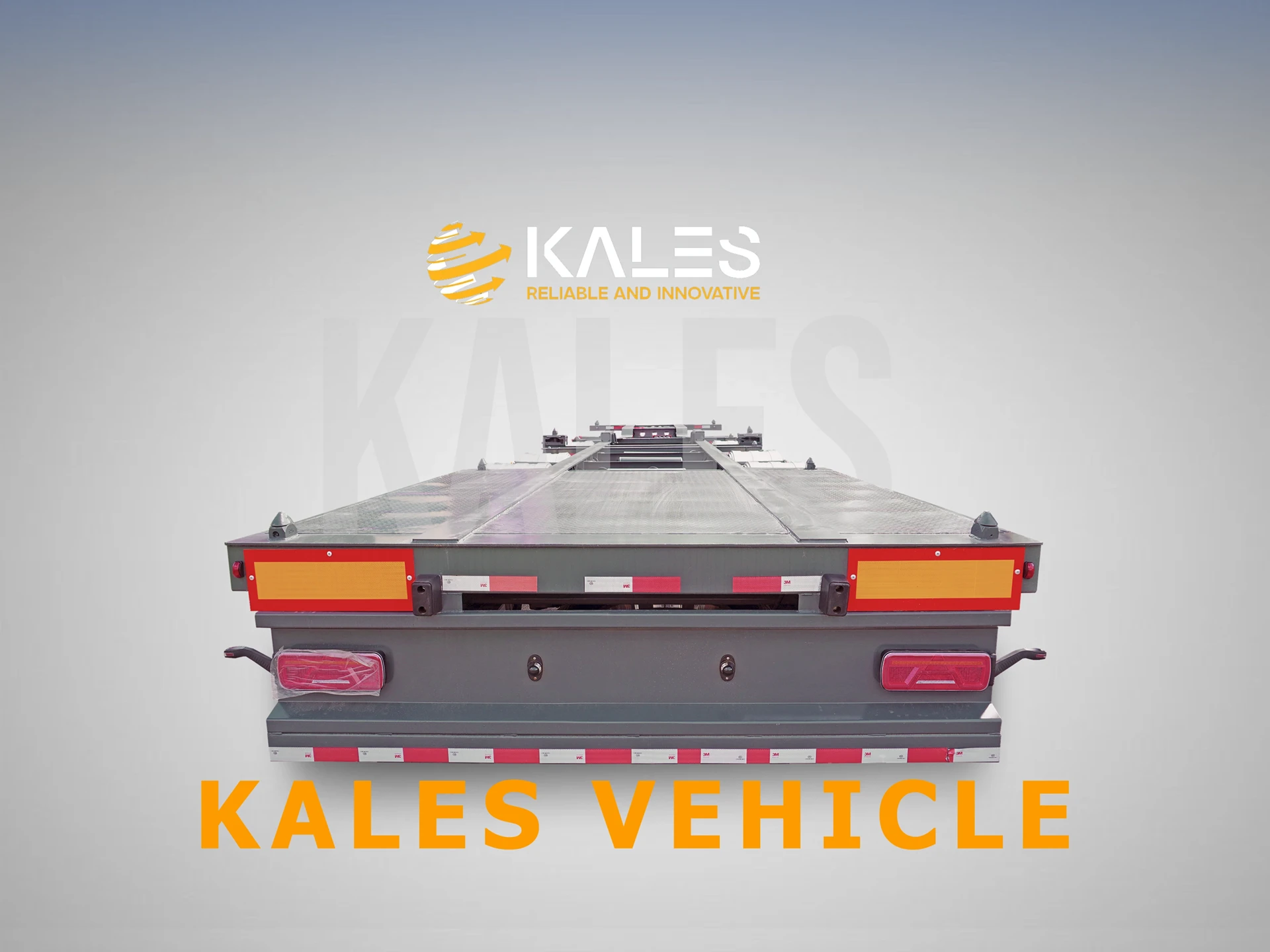

Designed for: Standard ISO Containers & Reefer (Refrigerated) Logistics

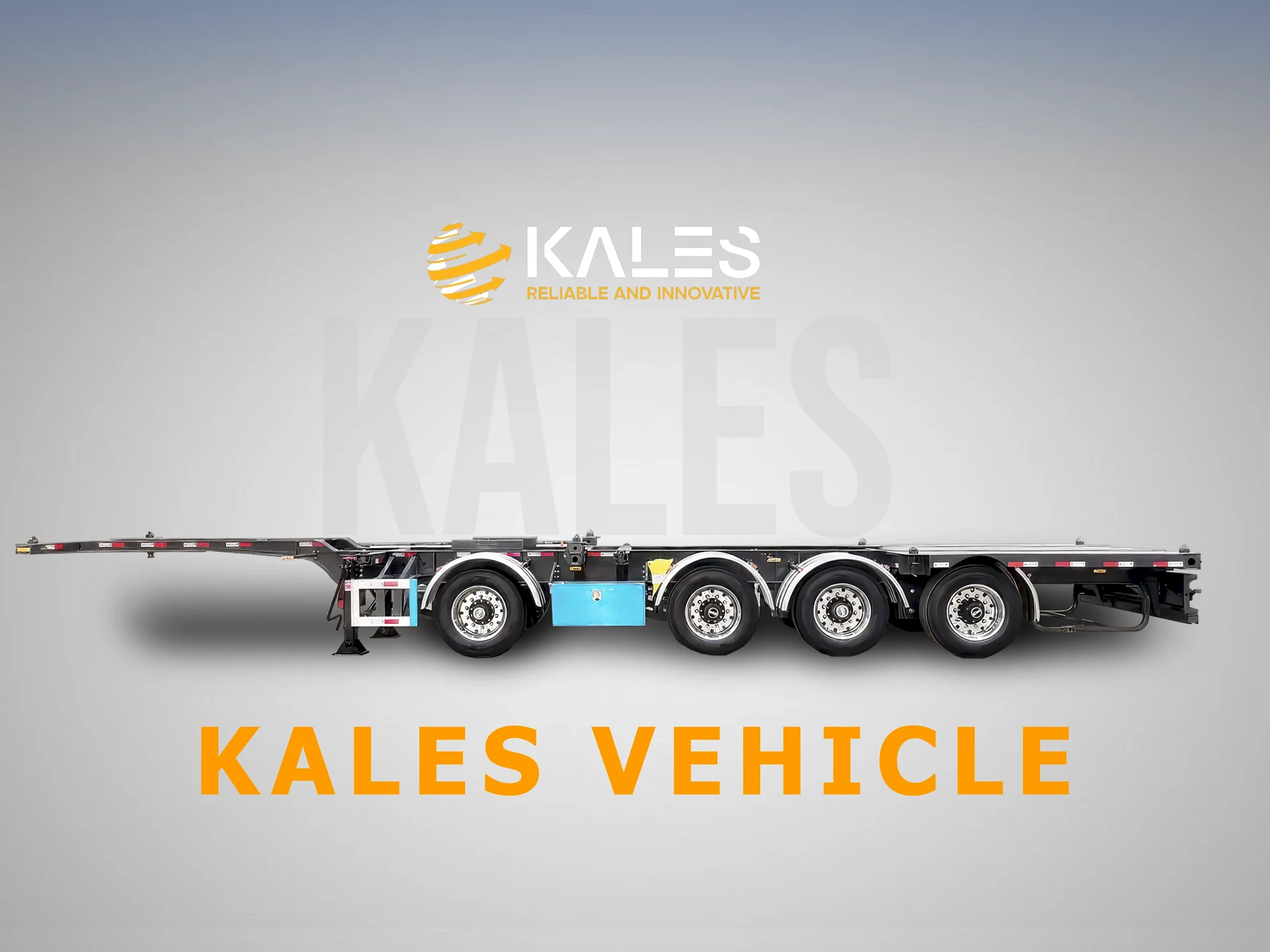

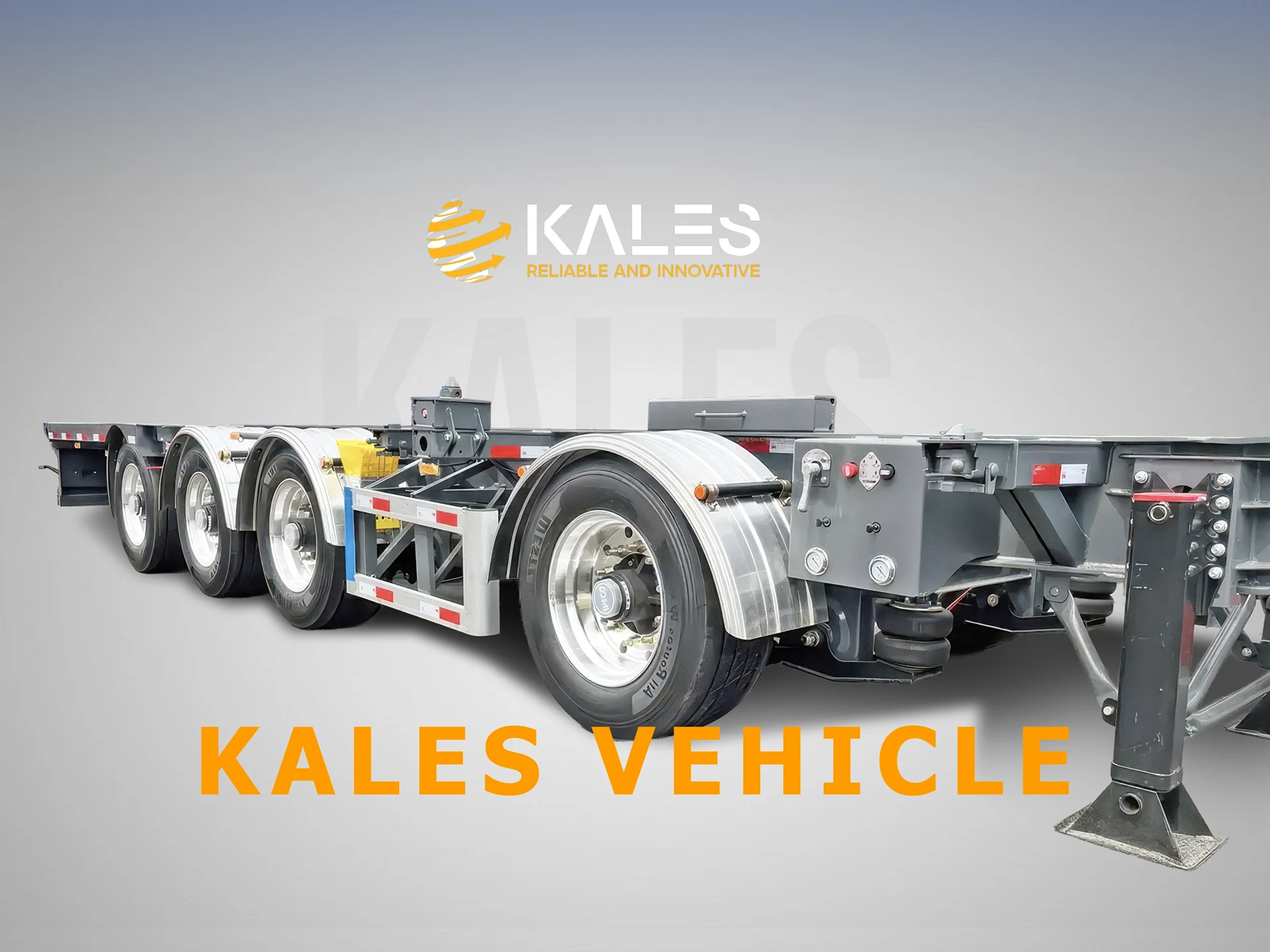

*Kales 4-Axle Skeleton Trailer featuring T700 Steel Chassis and Liftable Axles*
🚀 Why Choose the Kales Lightweight Skeleton Trailer?
In the competitive logistics market, payload is profit. The Kales 12m (40ft) Skeleton Trailer is engineered with European Standards in mind, combining T700 Cold-Bent Steel with premium aluminum components to deliver a chassis that is structurally superior yet significantly lighter than competitors.
📉 Extreme Lightweight
By using Aluminum Alloy Wheels, Bumpers, and Fenders combined with T700 high-strength steel, we reduce tare weight to maximize your legal payload capacity and reduce fuel consumption.
🇪🇺 Euro-Standard Spec
Equipped with 4 Axles with Factory-Installed Disc Brakes and a WABCO Braking System. The front two axles are liftable, reducing tire wear by 50% during empty return trips.
🛡️ E-Coating Tech
No more rust worries. Our chassis undergoes a full Electrophoretic Painting (KTL) process, providing 5x better corrosion resistance against salt spray and humidity than standard paint.
📷 Key Component Details

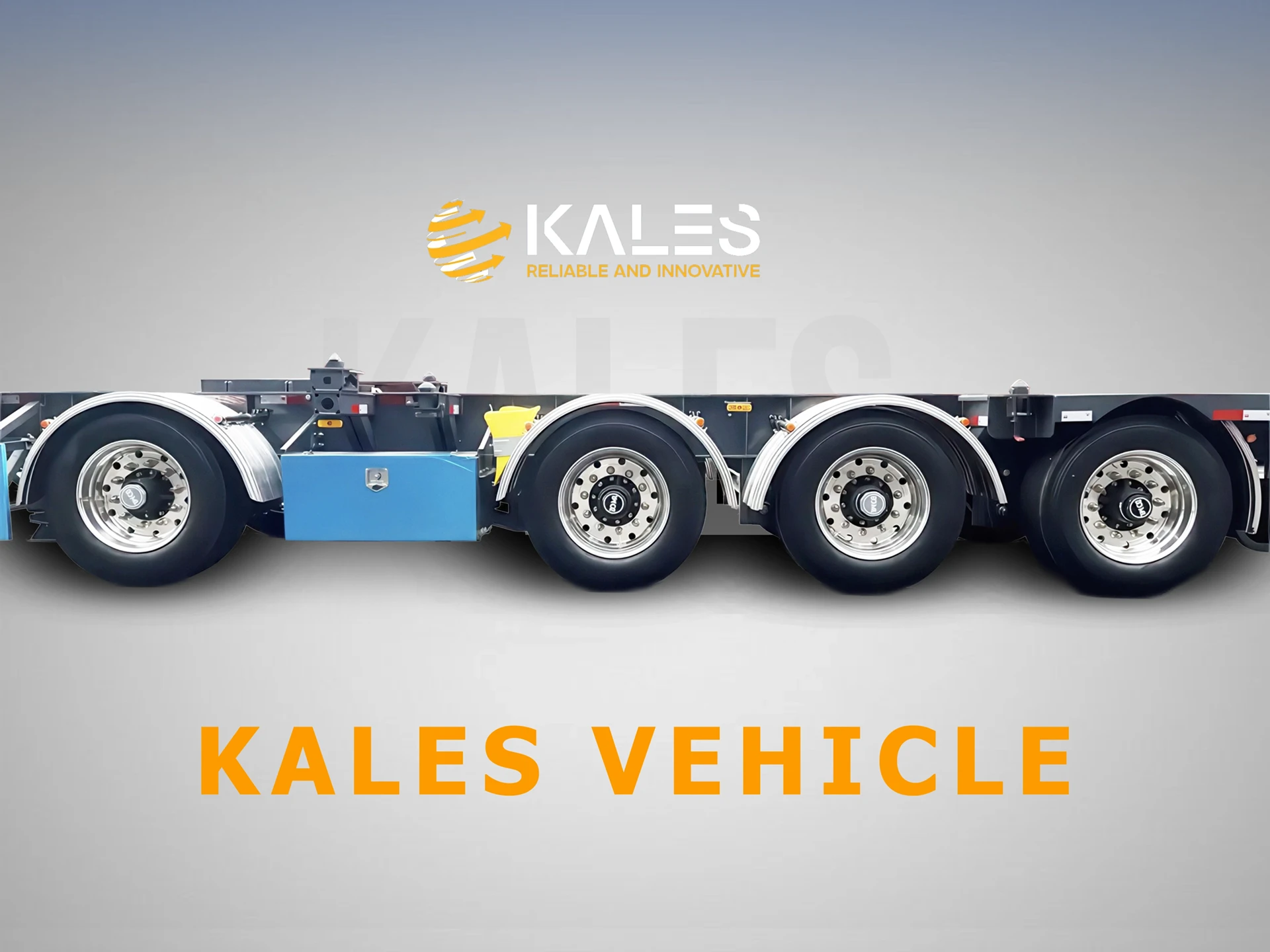

Aluminum Alloy Wheels
(High Heat Dissipation)

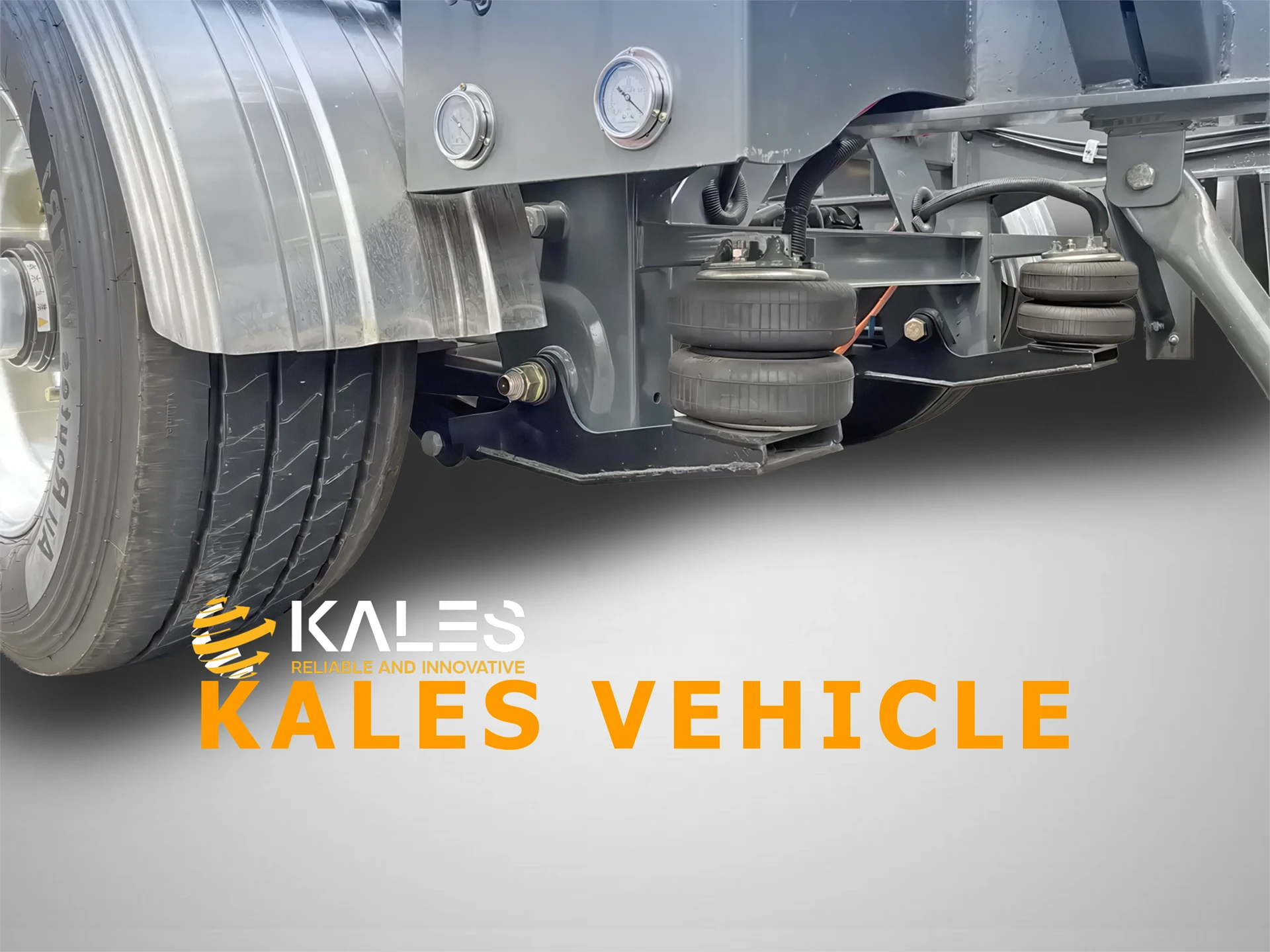

Front Liftable Axles
(Saves Tires & Fuel)

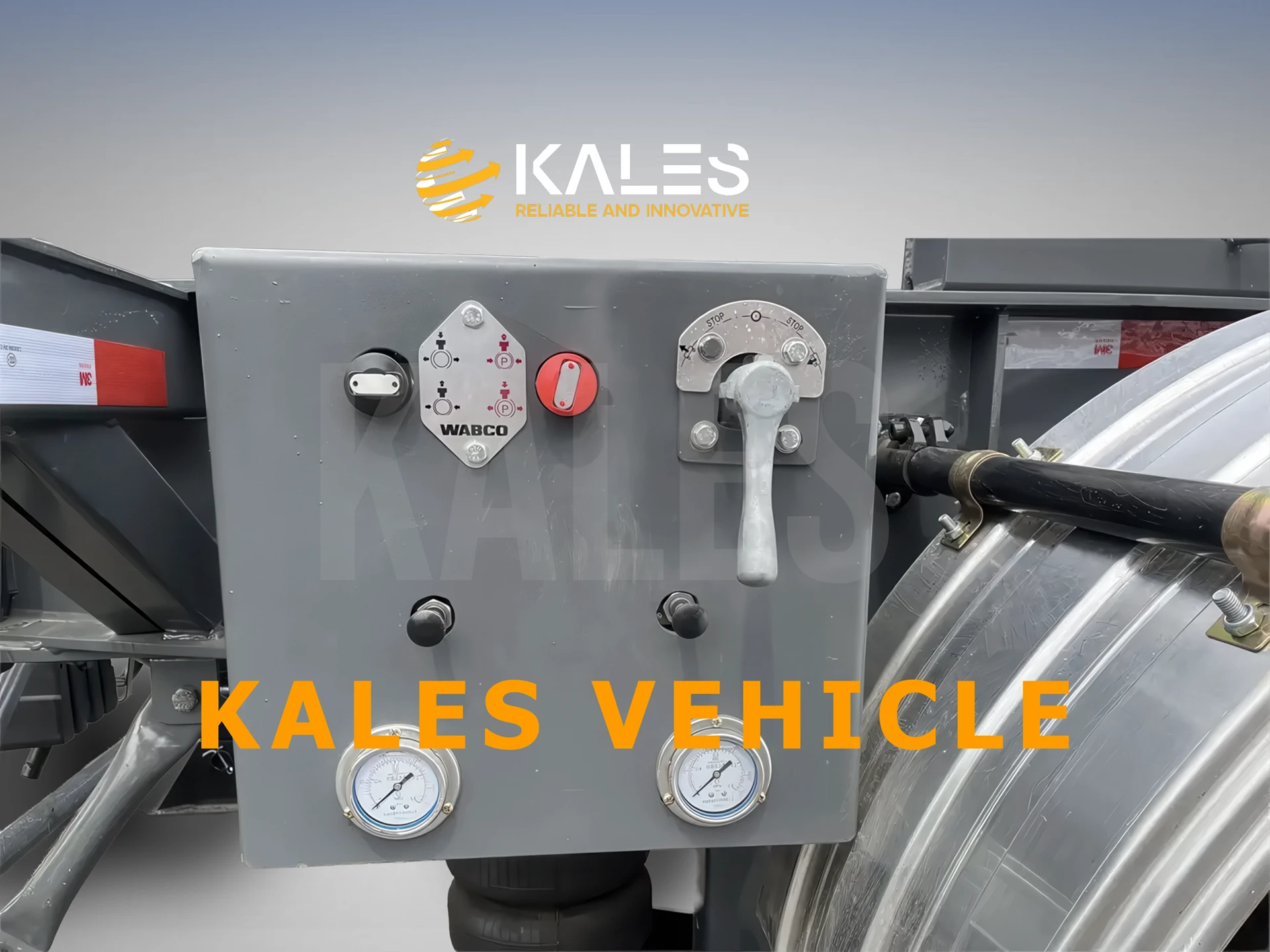

Disc Brakes + WABCO
(Superior Safety)
🛠️ Tailored to Your Needs (Customization)
Every market is different. As a direct manufacturer, Kales Vehicle offers full customization to match your local road regulations and operational requirements.
🔹 Axle Options:
Choose from premium brands like BPW, FUWA, SAF, or cost-effective Kales standard axles (13T/16T).
Choose from premium brands like BPW, FUWA, SAF, or cost-effective Kales standard axles (13T/16T).
🔹 Suspension Systems:
Air Suspension (with lifting) for sensitive cargo, or heavy-duty Mechanical Leaf Spring for rough terrain.
Air Suspension (with lifting) for sensitive cargo, or heavy-duty Mechanical Leaf Spring for rough terrain.

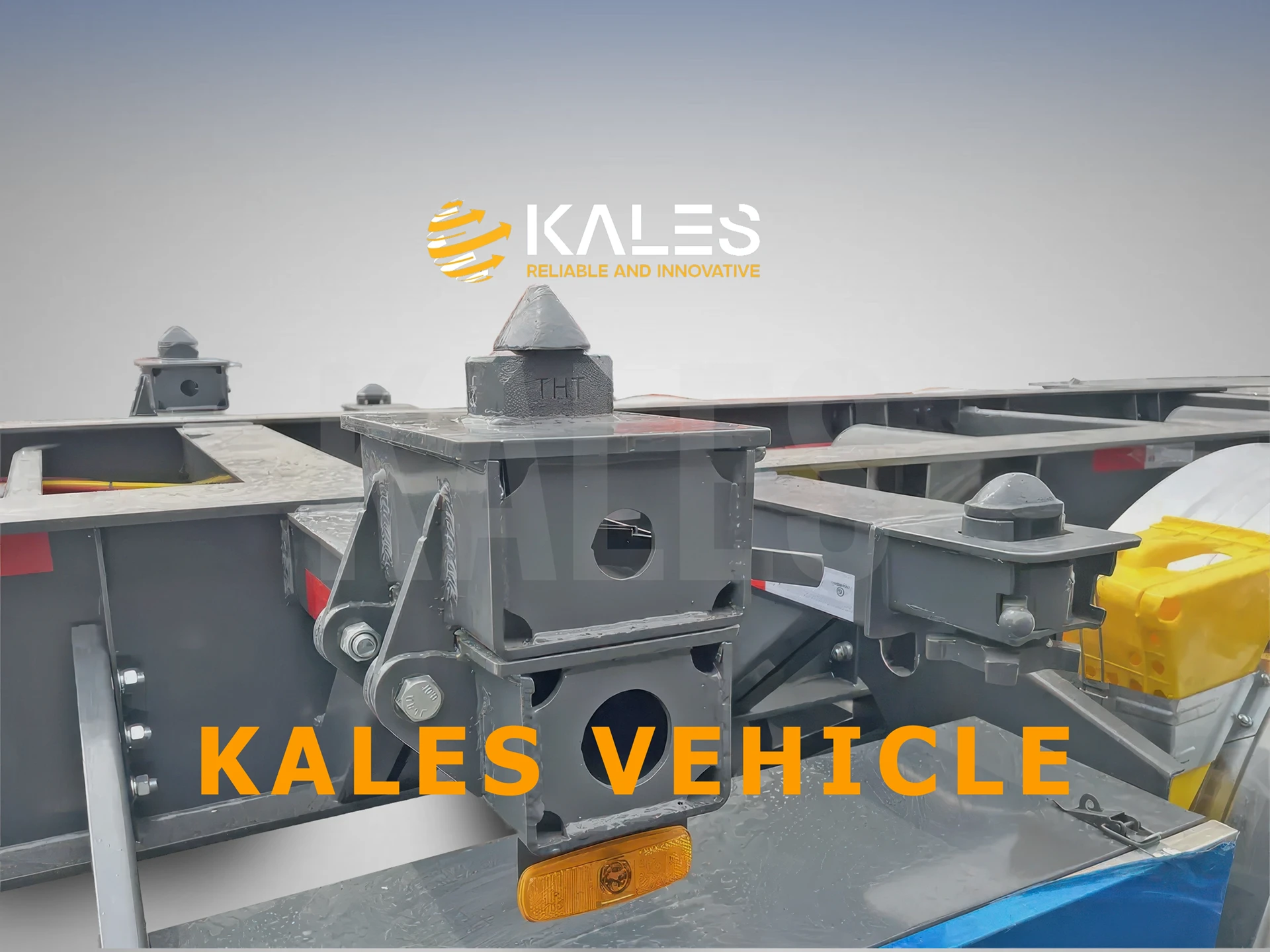

🔹 Container Locks:
Standard 4, 8, or 12 sets. Twist lock positions can be customized for 20ft, 40ft, 45ft, or tank containers.
Standard 4, 8, or 12 sets. Twist lock positions can be customized for 20ft, 40ft, 45ft, or tank containers.
🔹 Tires & Rims:
Single tire (385/65R22.5) or Twin tires (12.00R20/12R22.5). Steel or Alcoa Aluminum rims available.
Single tire (385/65R22.5) or Twin tires (12.00R20/12R22.5). Steel or Alcoa Aluminum rims available.
🏭 Precision Manufacturing Process
Quality is not just a promise; it’s our process. We use advanced technology to ensure every skeleton trailer withstands the toughest conditions.
🤖
Robot Welding
Automatic submerged arc welding ensures the main beam is flawless, uniform, and free of welding stress.
✨
Shot Blasting
Entire chassis is shot-blasted to Sa2.5 standard to remove rust and oil, ensuring maximum paint adhesion.
⚖️
Load Testing
Strict static and dynamic load testing is performed before delivery to guarantee safety capacities.
🔧 Technical Specifications
| Category | Specification |
|---|---|
| Overall Dimensions | 12,550 x 2,550 x 1,100 mm |
| Payload Capacity | 40 Tons |
| Main Beam Material | T700 High Strength Steel (Cold Bending) Top Flange: Front 16mm/Rear 12mm Middle Web: 6mm Bottom Flange: Front 16mm/Rear 12mm |
| Axles | 4 Axles (Factory installed Disc Brakes) Front 2 Axles Liftable |
| Tires & Rims | Tires: Chaoyang 385/55R22.5 (9 pcs) Rims: Aluminum Alloy 11.75*22.5 (9 pcs) |
| Braking System | WABCO Valves + WABCO ABS System |
| Air System | 40L Iron Air Tank (x4) 6 Double Air Chambers + 2 Single Chambers |
| Container Locks | 14 Sets (Factory Standard) |
| Key Accessories | Kingpin: JOST 50# (2 inch) Landing Gear: JOST 28T linkage |
| Painting | Electrophoretic Coating (E-Coating) |
🚢 Smart Shipping: Save 30% on Freight
Shipping costs are a major concern. For skeleton trailers, we use a specialized “Stacking” Method.
- 1
Stacking Bundles: We stack 3 or 4 trailers together as a single bundle. This significantly reduces the volume and freight cost per unit. - 2
Wax Protection: Before stacking, a thick layer of protective wax is sprayed to prevent seawater corrosion during transit. - 3
Container Option: For some designs, we can cut the rear part (bolted connection) to fit inside a 40ft HQ container for the lowest possible shipping rate.
🤝
Service & Support
Buy with confidence, operate with peace of mind.
- ✔
1-Year Structural Warranty:
We cover the main beam and chassis against manufacturing defects for 12 months. - ✔
Free Spare Parts Kit ($500 Value):
Includes brake shoes, air valves, sealing rings, and LED lights to ensure emergency maintenance capability. - ✔
Lifetime Technical Support:
Our team provides 24/7 support via WhatsApp/Email, including operation manuals and maintenance guides.
❓ Frequently Asked Questions
Q: What is the benefit of the T700 steel used in this trailer?
A: T700 is a high-strength steel that is lighter and stronger than standard Q345 steel. It allows the trailer to handle heavy loads (40T) while maintaining a low tare weight, which reduces fuel consumption and tire wear.
Q: Why are the first two axles liftable?
A: The lifting function allows you to raise the front axles when the trailer is empty or lightly loaded. This significantly reduces rolling resistance (saving fuel) and minimizes tire wear on those axles.
Q: Is this trailer suitable for Reefer (Refrigerated) containers?
A: Yes. The air suspension and disc brakes provide a much smoother ride compared to mechanical leaf springs, protecting the sensitive equipment inside refrigerated containers.
Ready to Upgrade Your Fleet?
12 Years of Manufacturing Excellence. Factory Direct Pricing. European Quality.
Get your free drawing and quote within 2 hours.
Customization
Built around your market requirement
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as steel thickness and reinforcement based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Shipping & Delivery
Practical export planning from factory to destination
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality & After-Sales
Lower risk before and after delivery
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- A 12-month warranty is available for the main beam and key components, with spare parts and remote technical support after delivery.
Cooperation Flow
How the order will actually move
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Logistics Display
Flexible Logistics Solutions: Safe & Cost-Effective Delivery
At Kales Vehicle, we understand that shipping costs are a major part of your investment. That’s why we offer multiple transport options tailored to your destination and budget.
Whether you choose Container Shipping for protection, Ro-Ro (Roll-on/Roll-off) for speed, or Bulk Cargo for cost savings, we ensure every trailer is handled with care. All vehicles undergo rigorous wax spraying and are covered with waterproof tarpaulins before shipment to prevent seawater corrosion during transit. We calculate the optimal stacking method (e.g., 3 units stacked together) to help you minimize freight costs.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Product FAQ
Questions buyers usually ask before ordering
Can this trailer be adapted for rough roads or overloaded routes?+
Yes. We can review your road conditions, legal load limits, and cargo type to recommend reinforcement, suspension, tires, and structural changes before production.
What information do you need for an accurate trailer quote?+
The fastest quote comes when you share cargo type, target market, preferred dimensions, expected payload, and any special configuration requirements.
How is this trailer usually shipped internationally?+
Depending on model size and destination, we can arrange bulk vessel, Ro-Ro, container, or multimodal sea-road transport and recommend the most practical route.
Do you support OEM branding and local compliance requests?+
Yes. We can add your logo, paint scheme, markings, and selected configuration changes while aligning the build with the compliance needs of your market.
