Factory Direct ProductCar Carrier Trailer
Kales 4-Axle Hydraulic Folding Arm Car Carrier Semi Trailer
Buy Kales 4-Axle Hydraulic Car Carrier Trailer. 40T capacity for 8 cars, trucks, or containers. Features BPW air suspension & folding arms. Factory direct price.
Built for export buyers who need route-matched trailers, durable structure, and clear factory support before shipment.
Trailer Type
Semi trailer
Axles
Multi-axle options
Payload
Configured to project requirement
Rugged & Durable
Built with high-strength steel and branded components to withstand tough road conditions
Exceptional Support
From customization to maintenance, we provide full lifecycle support for your fleet
FAST DELIVERY
Optimized production lines to ensure on-time delivery for your orders
Product Overview
Transport 8 Cars OR Containers | Zero Empty Returns
Engineered for the rugged logistics demands of Africa and Central Asia. Combine the revenue of a vehicle transporter with the utility of a container chassis in one robust, 40-ton capacity unit.
Payload: 40 Tons
1. ROI Analysis: Why This Trailer Makes More Money
In long-distance logistics, an empty return trip is your biggest profit killer. The Kales 4-Axle Carrier is designed to eliminate this waste.
💰 Profit Comparison (Example Trip: 2,000km)
- Standard Car Carrier:
Outbound: Transport 8 Cars ($$$)
Return: Empty ($0 Revenue – Fuel Cost) - Kales Hydraulic Carrier:
Outbound: Transport 8 Cars ($$$)
Return: Transport 40ft Container ($$ Revenue)
*By utilizing the integrated ISO Twist Locks on the lower deck, you can secure return cargo contracts for containers or general freight.*

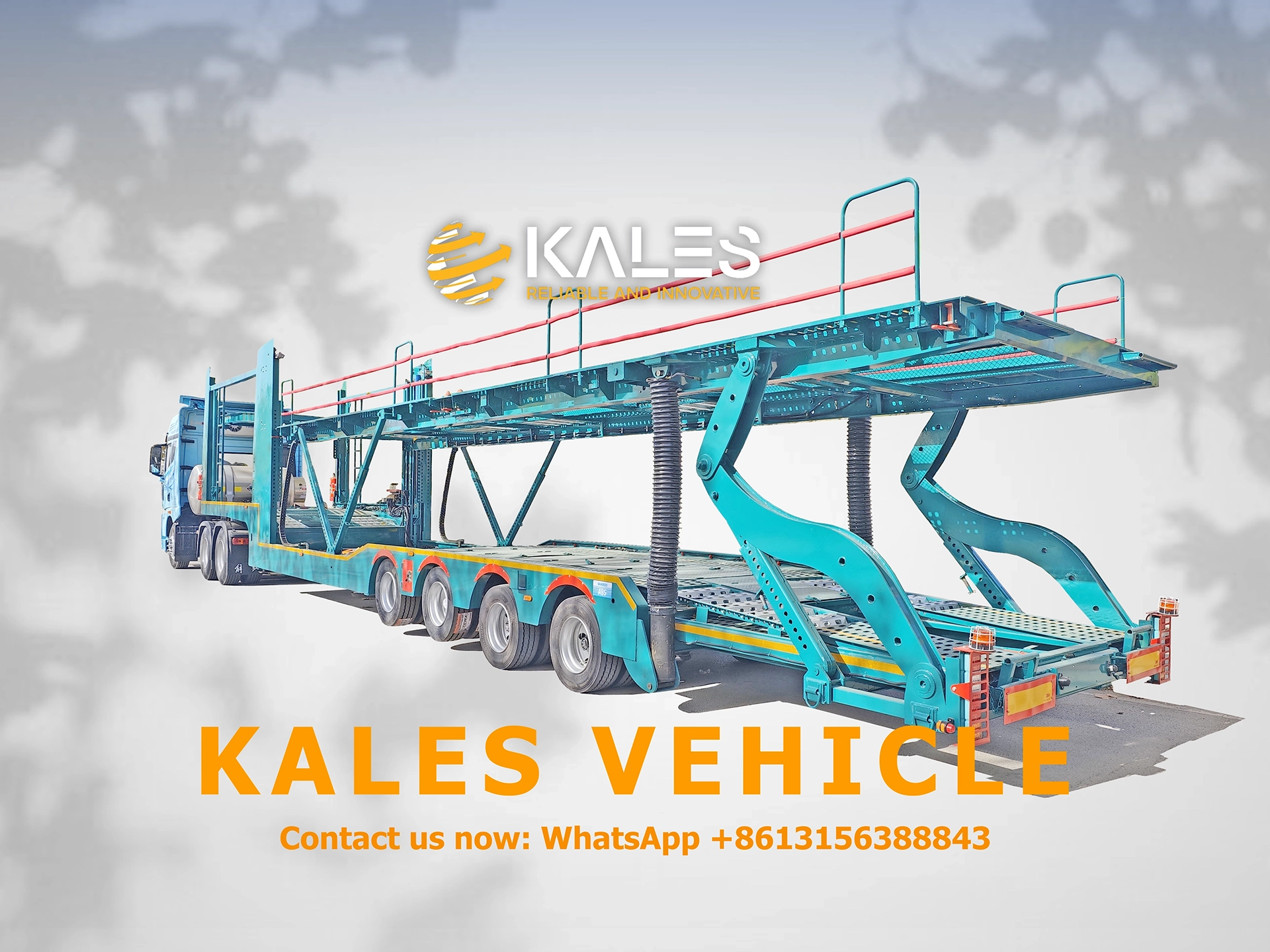

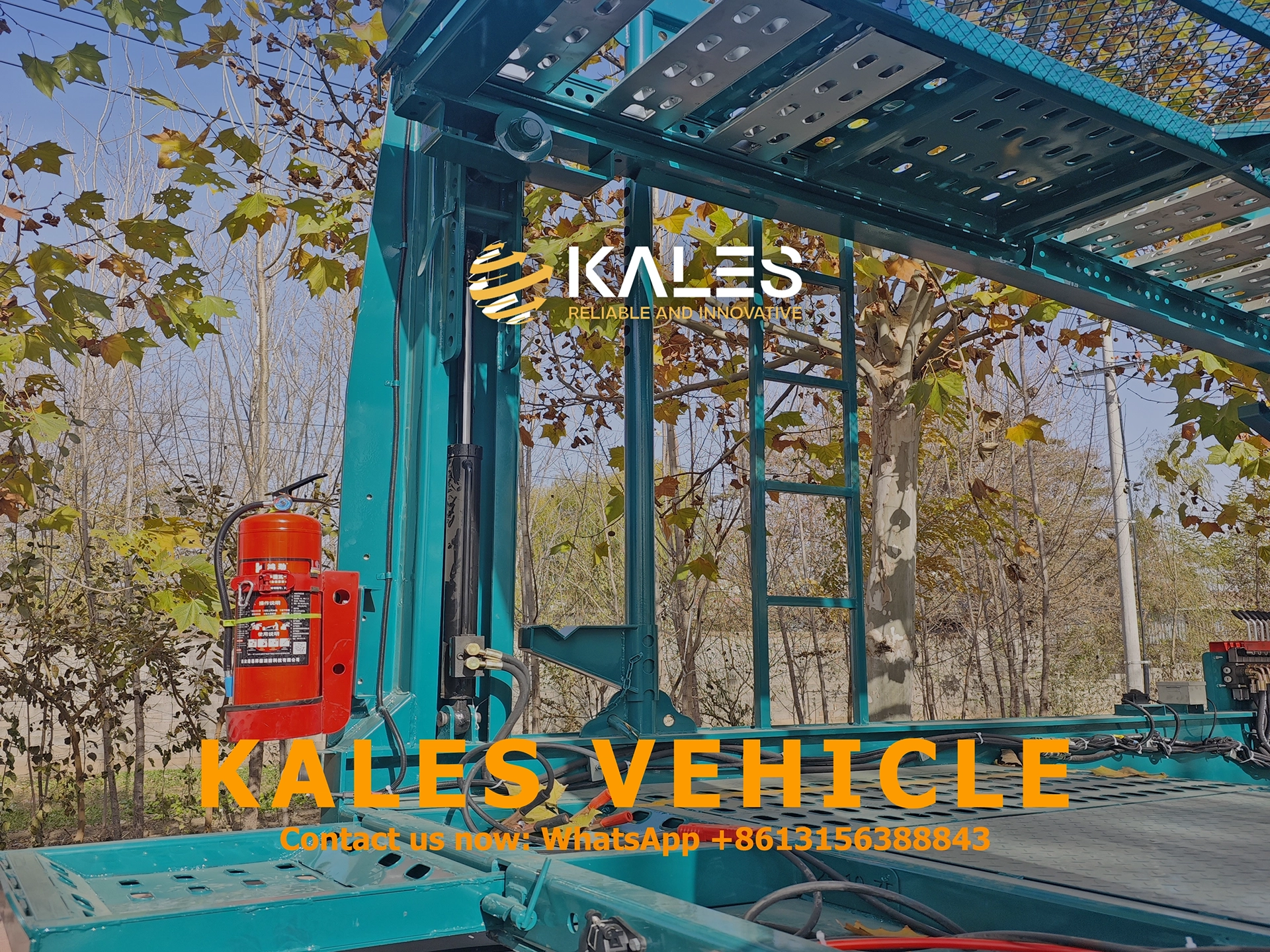

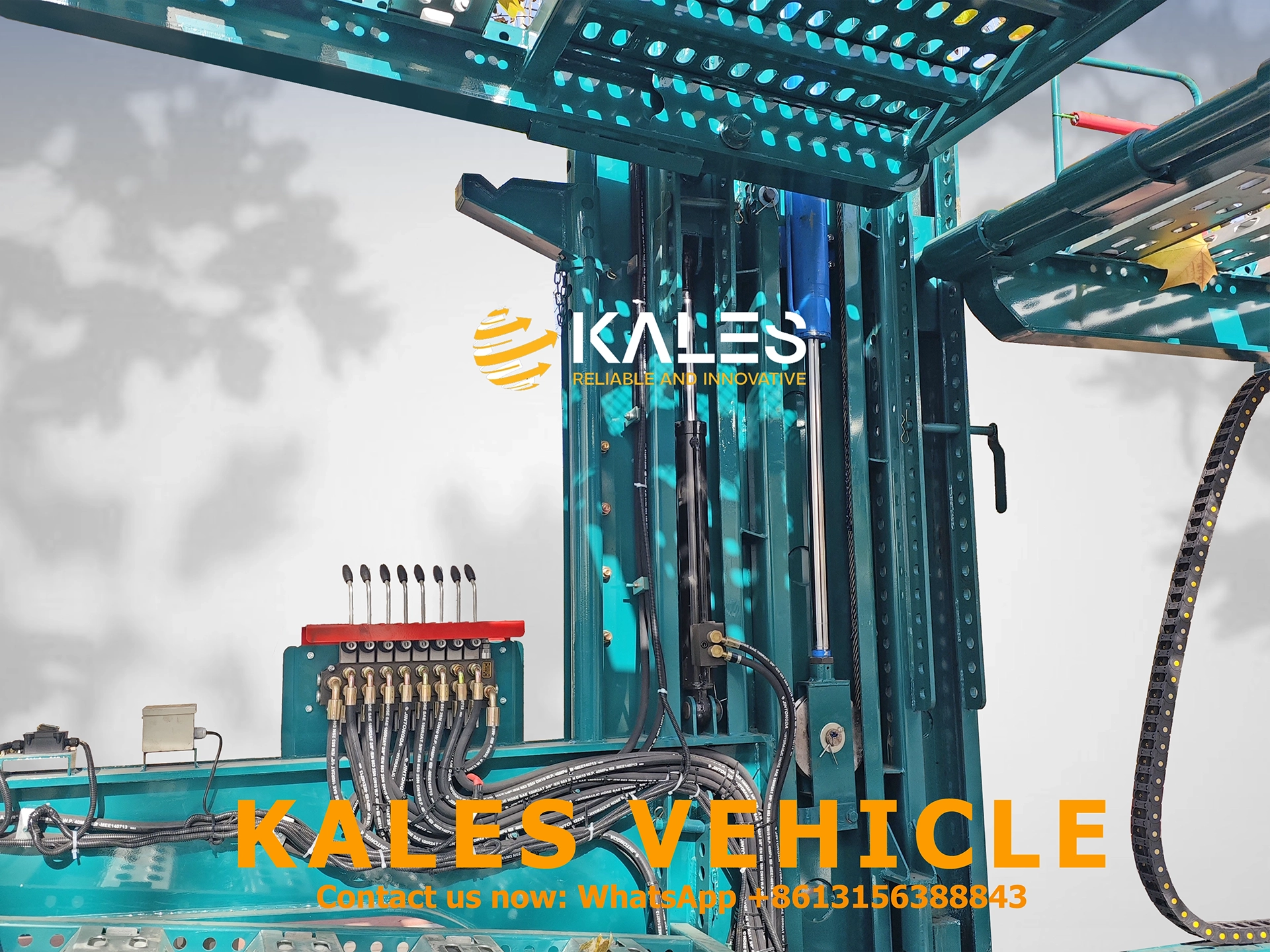

2. “Mantis Arm” Hydraulic Precision
Safety during loading is critical. Unlike jerky chain-hoist systems that risk damaging new vehicles, Kales utilizes a stable Electro-Hydraulic Power Station. This “Mantis Arm” design ensures zero sagging even when the upper deck is fully loaded with heavy SUVs.
- ✔ 11 Sets of Cylinders
- ✔ Micro-Adjustment Angles
- ✔ One-Man Operation
3. Manufacturing Excellence: Built to Last
A trailer is only as good as its steel and welds. At Kales, we refuse to cut corners on the chassis structure.
🦾 T700 High-Strength Steel
We use T700 steel for the main beam, which is 2x stronger than standard Q345 steel. This allows for a lighter tare weight (14.5T) without compromising the 40-ton load capacity.
🔥 Submerged Arc Welding
Our main beams are welded by automated robots using Submerged Arc Welding technology. This ensures deep penetration, zero porosity, and no risk of beam cracking.
🛡️ Powder Coating Process
Every chassis undergoes Sandblasting to remove impurities before painting. We use an electrostatic Powder Coating finish that is highly resistant to salt spray and corrosion.
4. Global Components: BPW & WABCO
We equip the Kales 4-Axle Carrier with top-tier global components to maximize uptime and simplify maintenance.

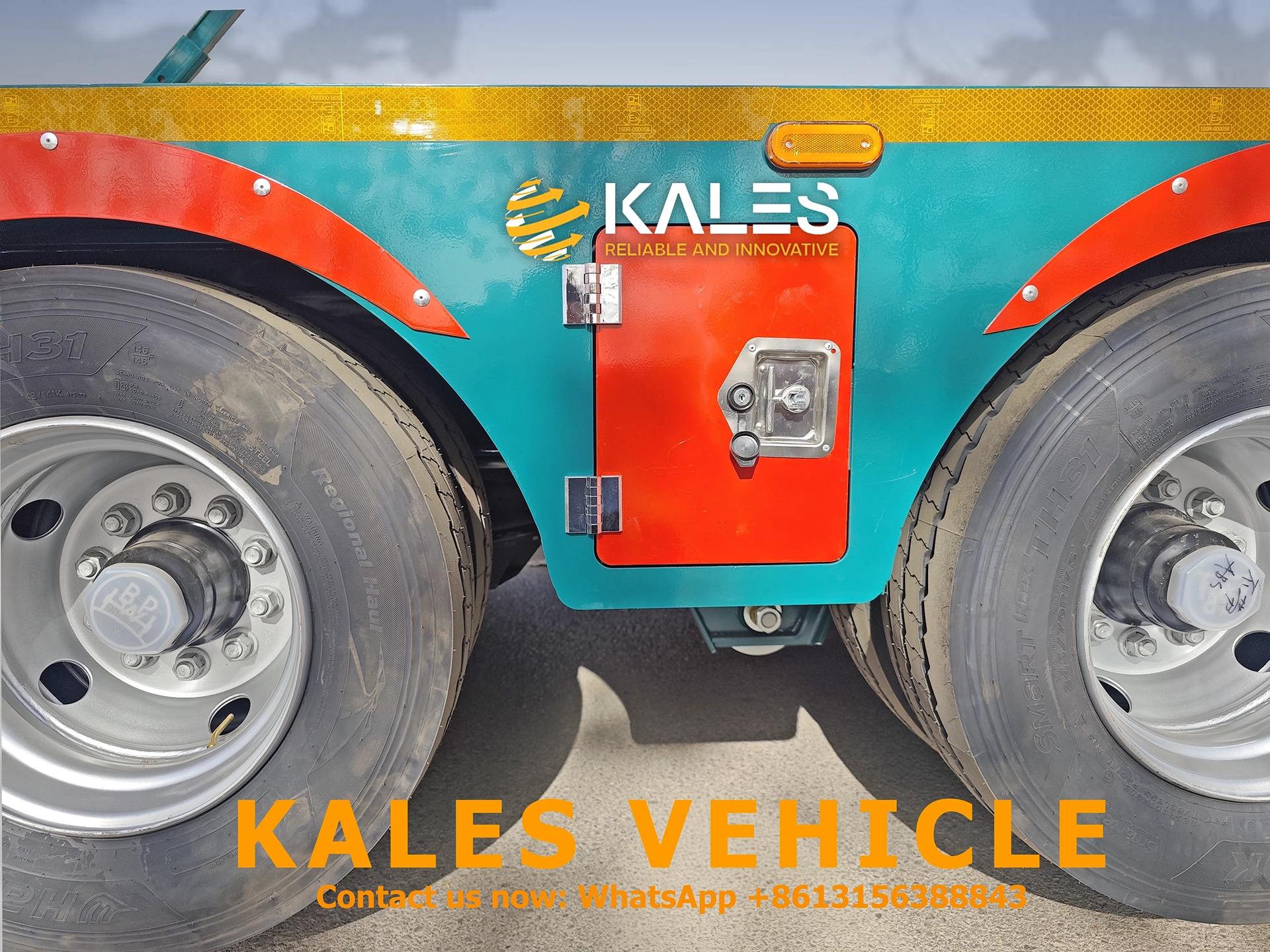

BPW Axles + Lifting
4 units of BPW 13-Ton Axles. The front two axles feature an Air Bag Lifting System. Lift them when empty to save tire wear.

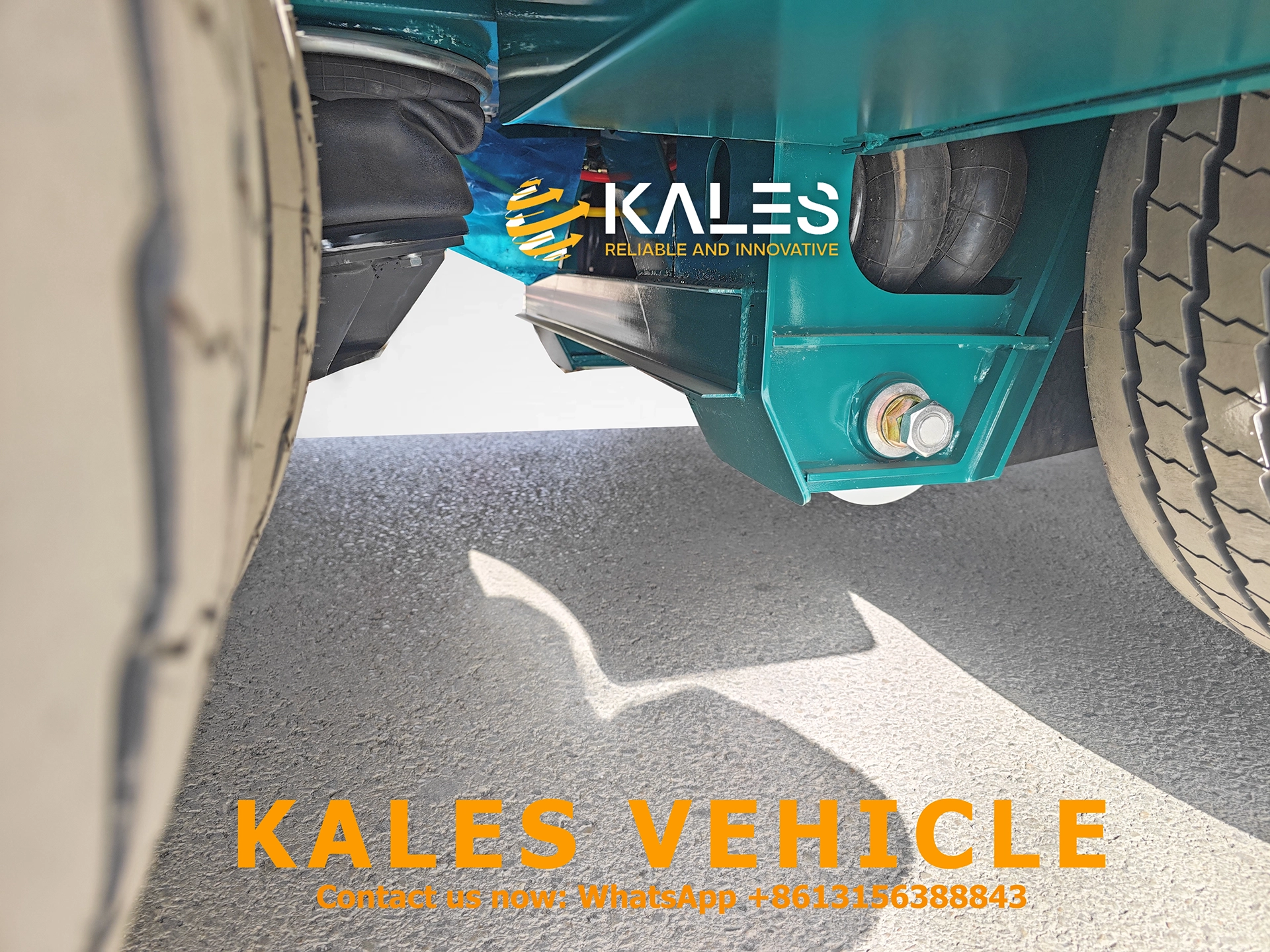

Air Suspension
Heavy-duty Air Suspension provides superior shock absorption, ensuring your high-value cargo arrives without transit damage.
WABCO Braking
Fitted with a genuine WABCO ABS braking system and T30/30 chambers for responsive stopping power on steep descents.
5. Technical Specifications
| Parameter | Specification Details |
|---|---|
| Overall Dimension | 17,000 mm × 2,550 mm × 3,800 mm |
| Loading Capacity | 40 Tons (Rated) |
| Axle Configuration | 4 Axles (Standard: BPW Brand) Front 2 Axles Liftable |
| Suspension System | Heavy Duty Air Suspension |
| Main Beam | Height 400mm / Upper 10mm / Lower 12mm Web: 6mm+4mm (Composite High Strength T700) |
| Tires | 16 units of 245/70R17.5 (Low center of gravity) |
| Hydraulic System | 11 Sets of Cylinders + 1 Power Station (24V) |
| Paint Process | Sandblasting + Powder Coating (Anti-rust) |
🌟 Why Global Fleets Choose Kales Vehicle
🛡️ Buy with Confidence: Our Service Commitment
📜
1-Year Structural Warranty
We cover the main beam, chassis structure, and hydraulic power station against manufacturing defects for 12 months.
🎁
Free Spare Parts Kit ($500 Value)
Includes brake shoes, air valves, sealing rings, hydraulic hoses, and LED lights for emergency maintenance.
👨🔧
Lifetime Technical Support
Our engineering team provides 24/7 support via WhatsApp/Email. Includes operation manuals for the Mantis Arm system.
❓ Frequently Asked Questions
Everything you need to know about operating and buying a hydraulic car carrier.
Q: Is it difficult to operate the “Mantis Arm” hydraulic system?

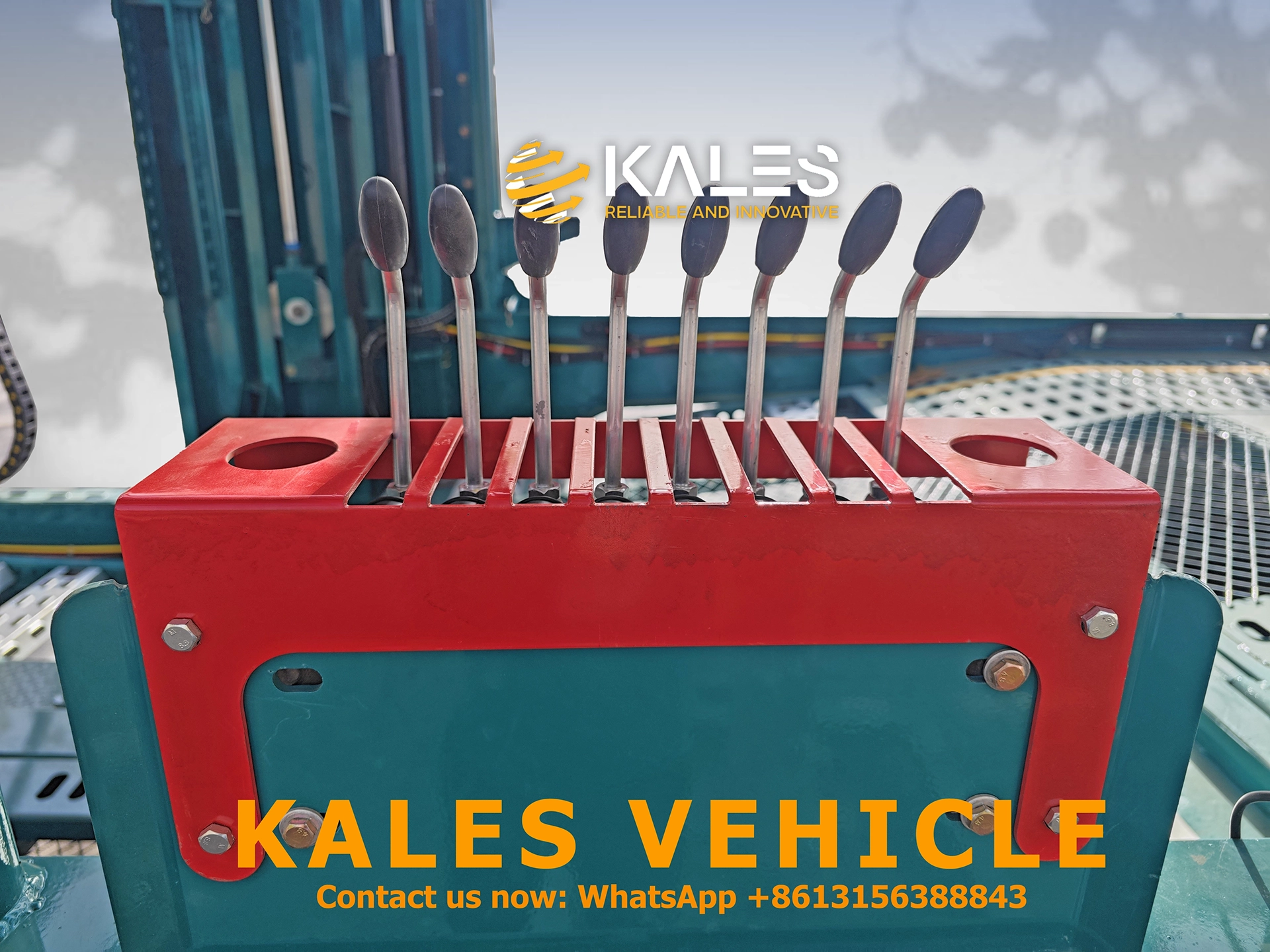

A: Not at all. The trailer features a centralized control valve bank. Each lever corresponds to a specific cylinder movement. We provide a step-by-step video training course. Most drivers master the loading process in less than 30 minutes.
Q: What maintenance does the hydraulic system require?
A: The system is low-maintenance. We recommend: checking hydraulic oil levels monthly, replacing the filter every 6 months, and visually inspecting hoses for wear. (Spare hoses are included in your free kit).
Q: How do you ship a 17-meter long trailer to Africa?
A: Due to the length, it cannot fit in a container. We use Ro-Ro (Roll-on/Roll-off) or Bulk Cargo Ships. Before shipping, we apply a thick layer of waterproof wax to the entire chassis to prevent saltwater corrosion.
Q: Will this trailer fit my Scania/Volvo/Sinotruk tractor head?
A: Yes. We customize the kingpin position and height based on your truck’s specifications. We offer both 50# (2 inch) and 90# (3.5 inch) JOST kingpins.
Maximize Your Fleet’s Efficiency Today
Join 500+ logistics companies maximizing profit with Kales Trailers.
📸 Detailed Visual Tour
Customization
Built around your market requirement
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as steel thickness and reinforcement based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Shipping & Delivery
Practical export planning from factory to destination
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality & After-Sales
Lower risk before and after delivery
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- A 12-month warranty is available for the main beam and key components, with spare parts and remote technical support after delivery.
Cooperation Flow
How the order will actually move
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Logistics Display
Flexible Logistics Solutions: Safe & Cost-Effective Delivery
At Kales Vehicle, we understand that shipping costs are a major part of your investment. That’s why we offer multiple transport options tailored to your destination and budget.
Whether you choose Container Shipping for protection, Ro-Ro (Roll-on/Roll-off) for speed, or Bulk Cargo for cost savings, we ensure every trailer is handled with care. All vehicles undergo rigorous wax spraying and are covered with waterproof tarpaulins before shipment to prevent seawater corrosion during transit. We calculate the optimal stacking method (e.g., 3 units stacked together) to help you minimize freight costs.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Product FAQ
Questions buyers usually ask before ordering
Can this trailer be adapted for rough roads or overloaded routes?+
Yes. We can review your road conditions, legal load limits, and cargo type to recommend reinforcement, suspension, tires, and structural changes before production.
What information do you need for an accurate trailer quote?+
The fastest quote comes when you share cargo type, target market, preferred dimensions, expected payload, and any special configuration requirements.
How is this trailer usually shipped internationally?+
Depending on model size and destination, we can arrange bulk vessel, Ro-Ro, container, or multimodal sea-road transport and recommend the most practical route.
Do you support OEM branding and local compliance requests?+
Yes. We can add your logo, paint scheme, markings, and selected configuration changes while aligning the build with the compliance needs of your market.
