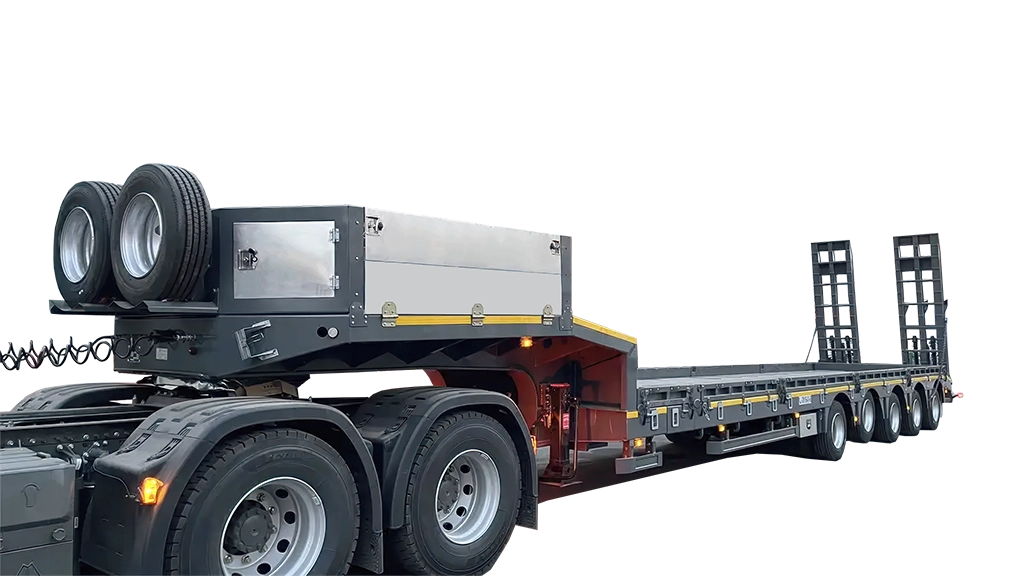

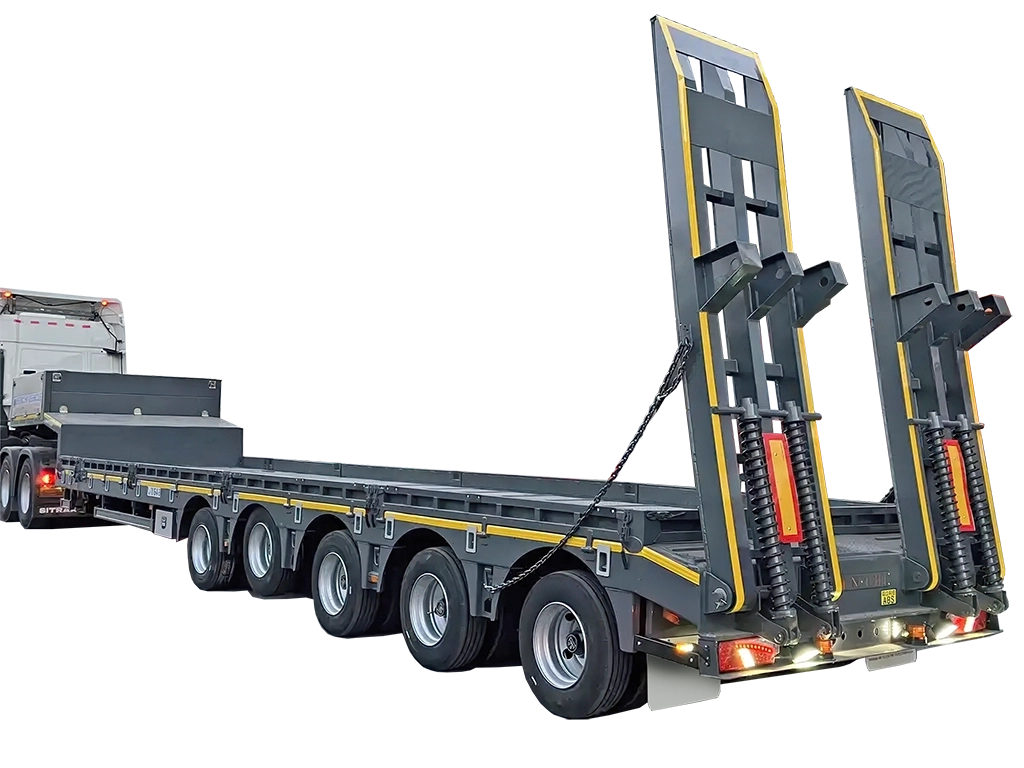

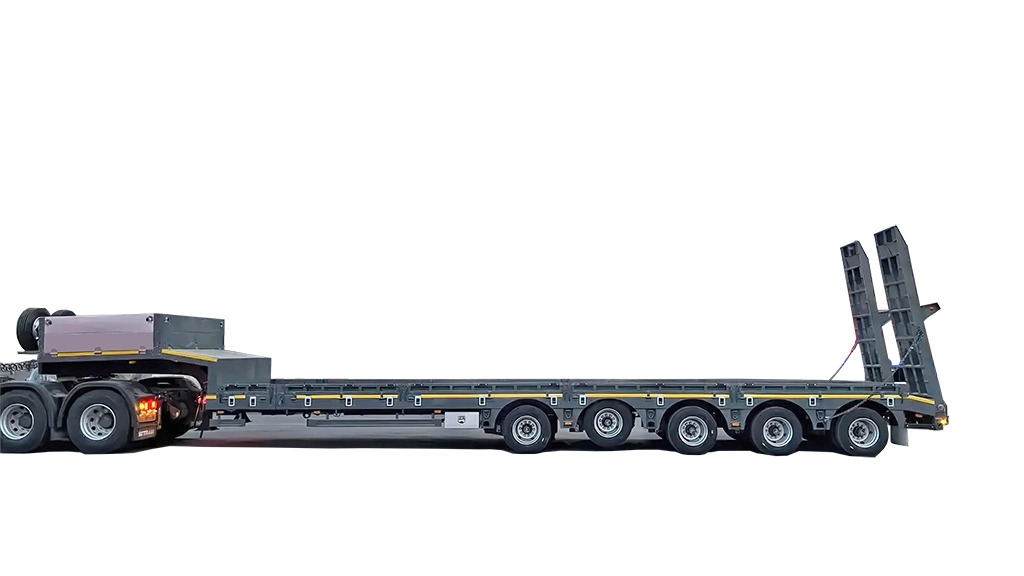

5 axle 60 tones extendable lowbed trailer Drop Deck semi-trailer

In the realm of heavy equipment and special cargo transportation, Kales lowbed trailers stand out for their superior design, robust load-bearing capacity, and versatile configuration options. They are especially suitable for transporting heavy vehicles (such as tractors, coaches, specialized vehicles), rail vehicles, mining machinery, forestry machinery, agricultural machinery, construction machinery (like excavators, bulldozers, loaders, pavers, cranes), and other large or overweight cargoes. The low center of gravity design not only enhances stability and safety but also improves the capability to transport extra-high cargo and navigate overhead obstacles.

Kales offers a range of lowbed trailers with payload capacities from 30 to 300 tons year-round. Available lengths include 9.1m, 9.5m, 10.5m, 11m, 12m, 12.5m, 13m, 13.75m, 15m, and 15.5m, with widths ranging from 2.8m to 3m. The cargo platform options are goose-neck lowbed and Drop Deck semi-trailers. Axle configurations can vary from two axles up to ten axles, including dual-axle lines and triple-axle lines. All Kales lowbed trailers can be custom-designed according to customer requirements, with optional features such as extendable bodies, hydraulic ramps, rack posts, body widening, among dozens of other configurations.

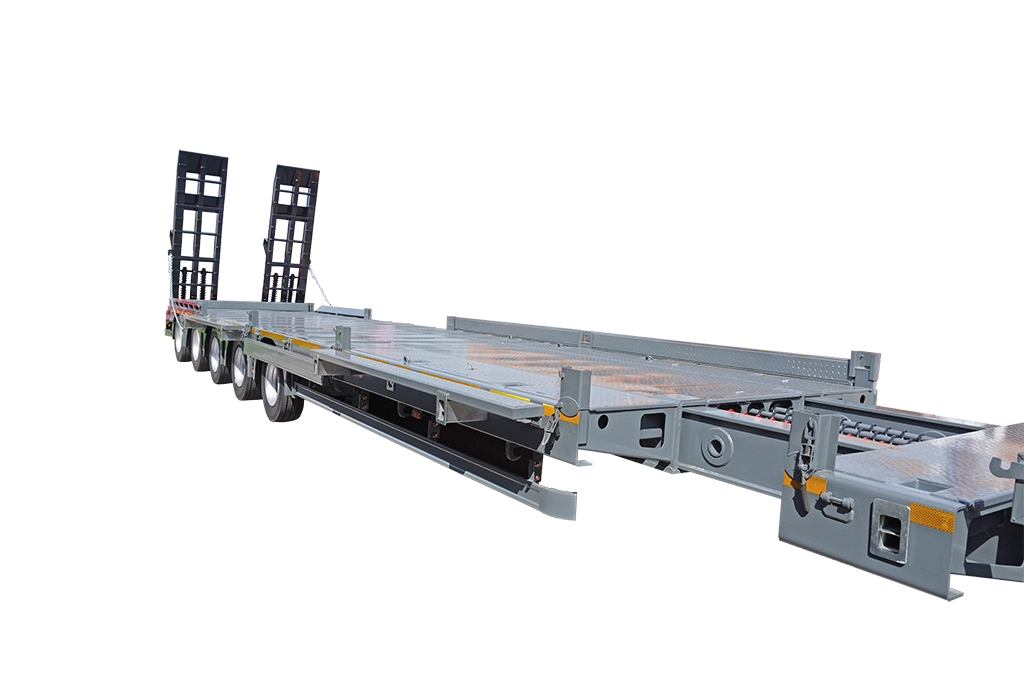

The Kales five-axle extendable lowbed trailer has an extension length of up to 6 meters and can widen by 2 meters on both sides, making it more suitable for long indivisible cargo like timber logs, steel pipes, round steel bars, utility poles, etc.

Unique advantages of the Kales 5 axle extendable lowbed trailer Drop Deck semi-trailer:

Durable Construction
Manufactured using T700 high-strength international standard steel, ensuring the rigidity and strength of the vehicle structure without deformation under heavy loads, with a service life exceeding ten years.
Lightweight Design
The trailer is lightweight while providing excellent resistance to torsion, shock, and jolts, enhancing stability during transit.
Advanced Suspension System

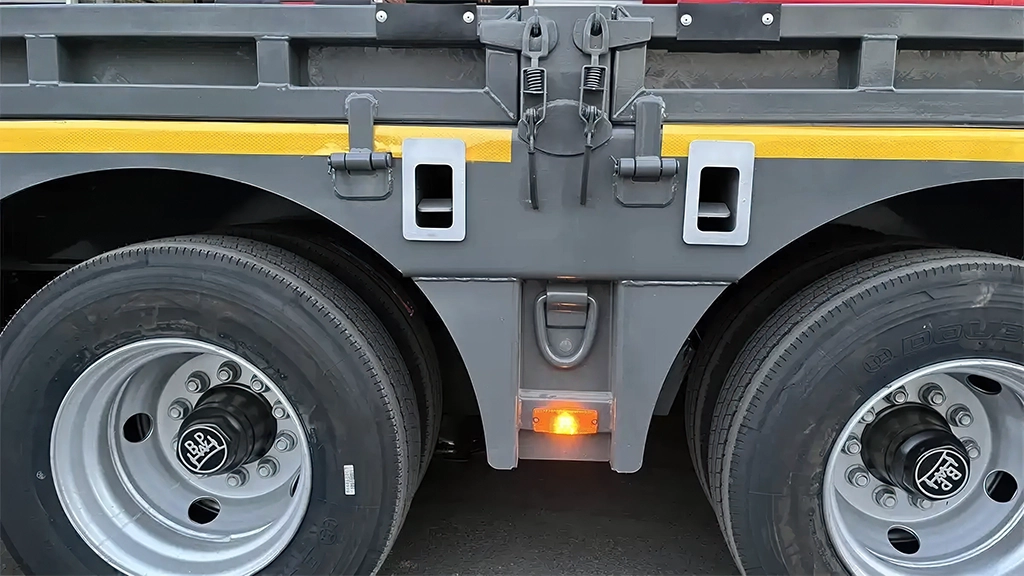

Equipped with dual 235/75R17.5 tires, BPW drum brakes + CTC steering axle, and a five-axle air suspension system that supports overall lifting, front axle lift, and rear-axle tag-along steering. Under light loads, the first and second axles can be elevated to use only axles 3 through 5, reducing tire wear; under heavy loads, the axles can be lowered to increase load-bearing capacity.
High Flexibility and Expandability
The Kales five-axle extendable lowbed trailer not only extends up to 6 meters in length but also has side-widening capabilities, increasing the total width by 2 meters. This greatly increases applicability and convenience when transporting long goods such as timber logs, steel pipes, round steel bars, utility poles, etc.

Choosing a Kales lowbed trailer means opting for a safe, reliable, and efficient solution for heavy cargo transportation. We focus on providing personalized customization services based on specific customer needs, ensuring that every delivered trailer perfectly matches your business requirements, helping you gain a competitive edge in the global logistics market.

Product Description of the Kales 5 axle extendable lowbed trailer Drop Deck semi-trailer:
