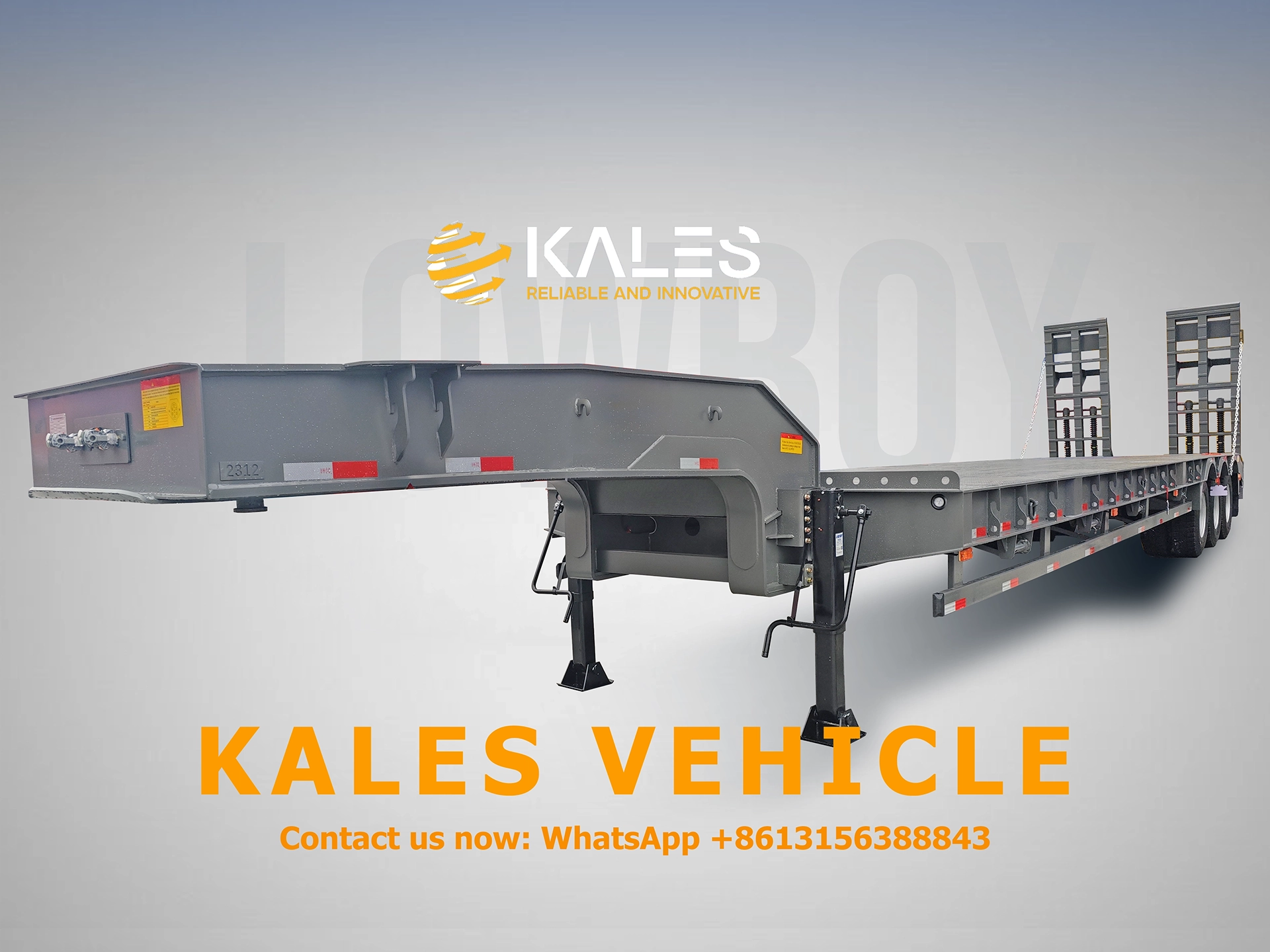

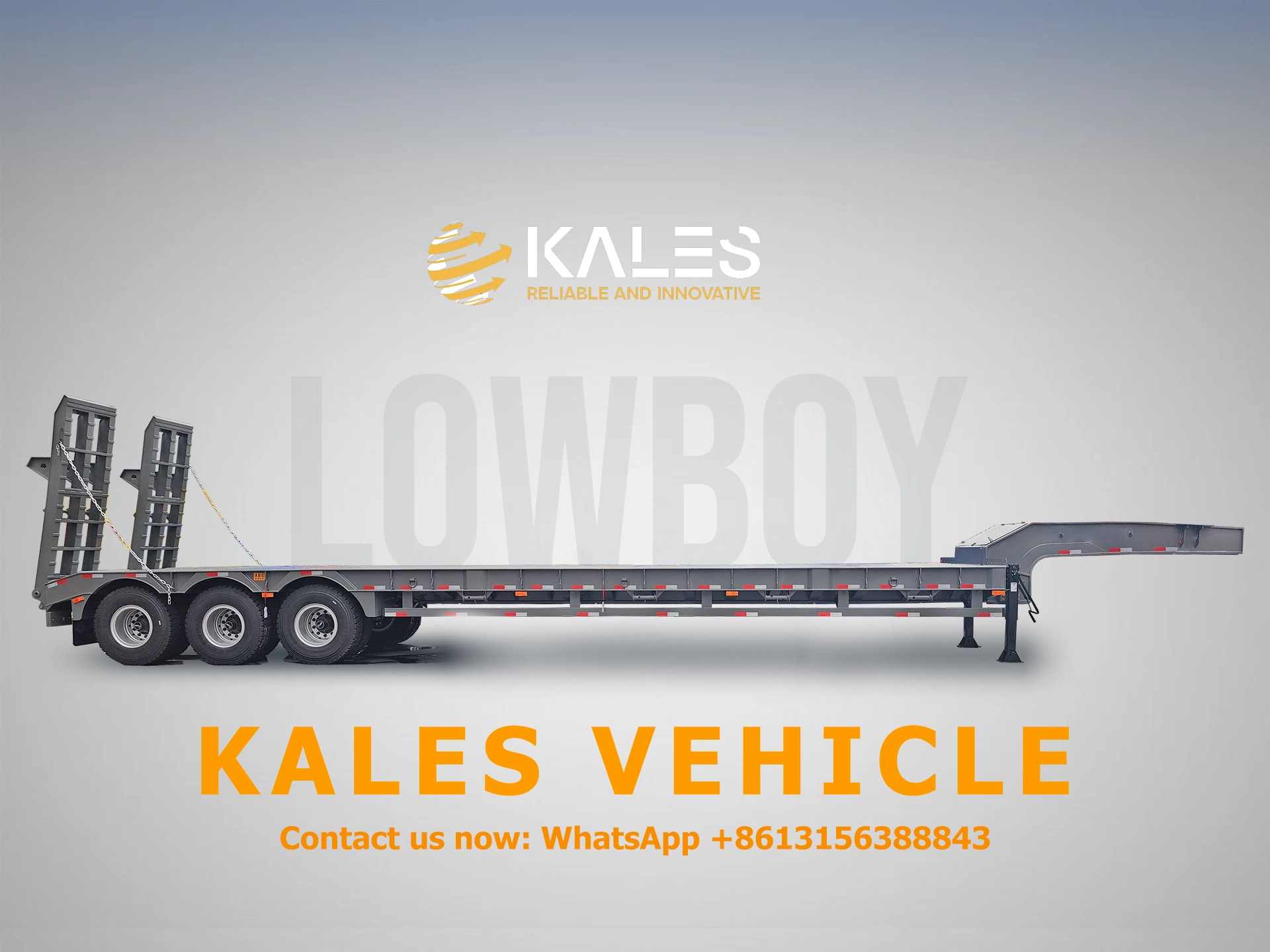

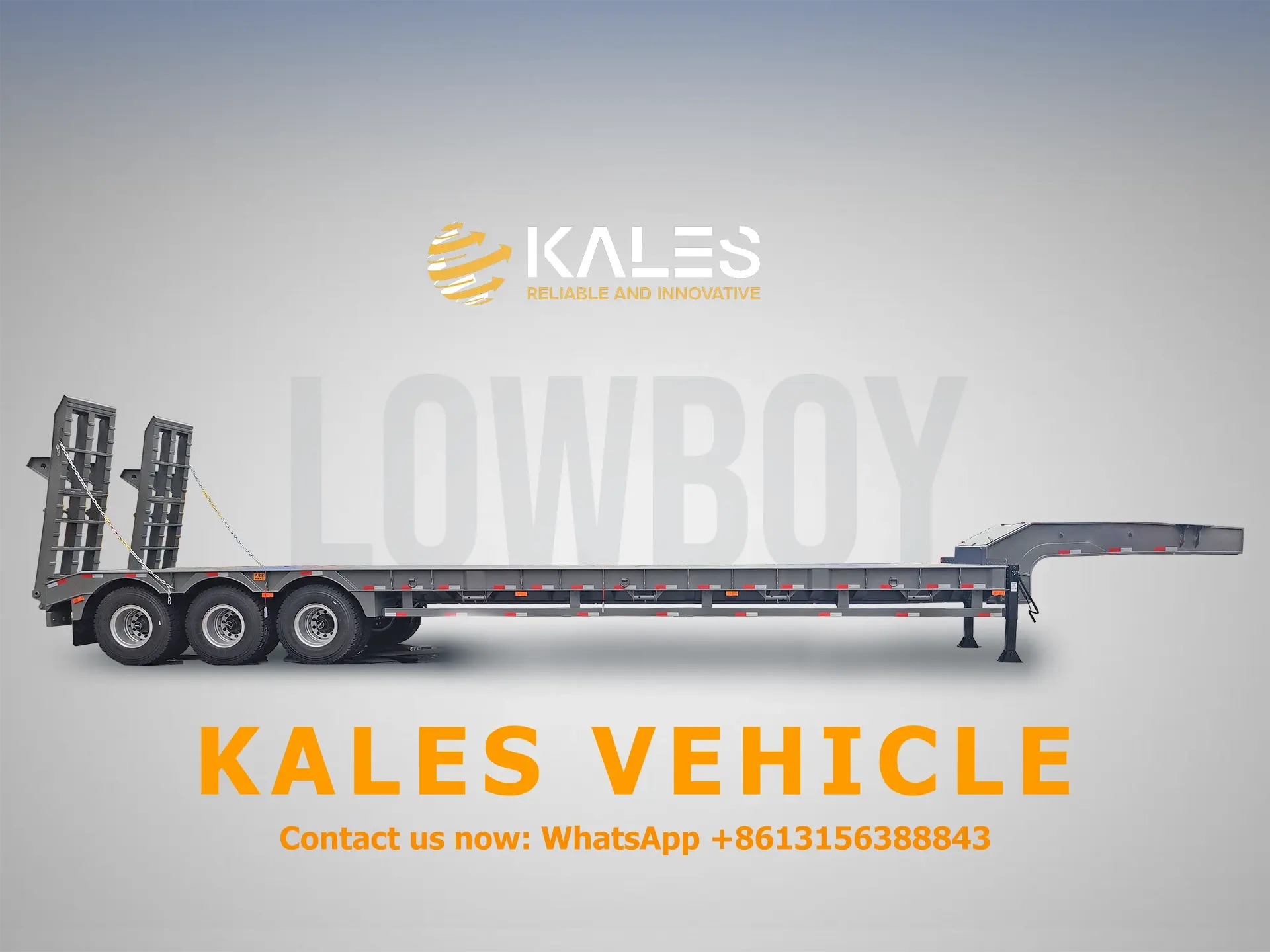

80-Ton Lowbed Semi Trailer – Heavy-Duty 3-Axle Lowboy for Excavator, Mining & Wind Equipment Transport
When transporting ultra-heavy machinery—like CAT excavators, mining trucks, or wind turbine sections—you need more than just a “rated” trailer. You need a real 80-ton lowbed semi trailer engineered for safety, durability, and global compliance. The Kales 80T lowboy trailer is a 3-axle heavy-duty lowbed trailer designed specifically for 80-ton payloads , featuring a HG60 high-strength steel frame , 12R20 all-steel radial tires , and customizable options like hydraulic gooseneck , disc brakes , and extendable deck —making it the top choice for contractors, mining companies, and specialized logistics providers across Russia, Kazakhstan, UAE, Nigeria, and beyond .
Built for export buyers who need route-matched trailers, durable structure, and clear factory support before shipment.
Trailer Type
Semi trailer
Axles
Multi-axle options
Payload
Configured to project requirement
Rugged & Durable
Built with high-strength steel and branded components to withstand tough road conditions
Exceptional Support
From customization to maintenance, we provide full lifecycle support for your fleet
FAST DELIVERY
Optimized production lines to ensure on-time delivery for your orders
Product Overview
True 80-Ton Payload | Built with HG60 Steel | Custom Solutions for Russia, Middle East & Africa
When transporting ultra-heavy machinery—like CAT excavators, mining trucks, or wind turbine sections—you need more than just a “rated” trailer. You need a real 80-ton lowbed semi trailer engineered for safety, durability, and global compliance.
The Kales 80T lowboy trailer is a 3-axle heavy-duty lowbed trailer designed specifically for 80-ton payloads, featuring a HG60 high-strength steel frame, 12R20 all-steel radial tires, and customizable options like hydraulic gooseneck, disc brakes, and extendable deck—making it the top choice for contractors, mining companies, and specialized logistics providers across Russia, Kazakhstan, UAE, Nigeria, and beyond.
Why the Kales 80-Ton Lowboy Trailer Delivers Real Performance
✅ True 80-Ton Capacity – Engineered, Not Just Advertised
- GVWR: 95.9 tons
- Tare Weight: ~15.9 tons
- Actual Payload: 80 tons (safety factor ≥3 at full load)
- Tractor Match: Requires 3-axle heavy-duty tractor (saddle height 1250–1350mm, capacity ≥16 tons)
⚠️ Note: In markets like Russia, Kazakhstan, and the Middle East, 3-axle trailers are legally permitted to carry 80-ton loads. Kales supports EAC, GOST, and GCC certifications and can tailor axle layout for your region.
Military-Grade Build for Mining, Construction & Heavy Haul
Every Kales 80 ton lowbed trailer with ramps is built to outperform:
- Main Beam: HG60 high-strength steel I-beam (550mm deep, 22mm flanges, 14mm web) — the backbone of true 80-ton strength.
- Deck: 5mm anti-slip checkered steel (upgradeable to 8mm) for secure equipment transport.

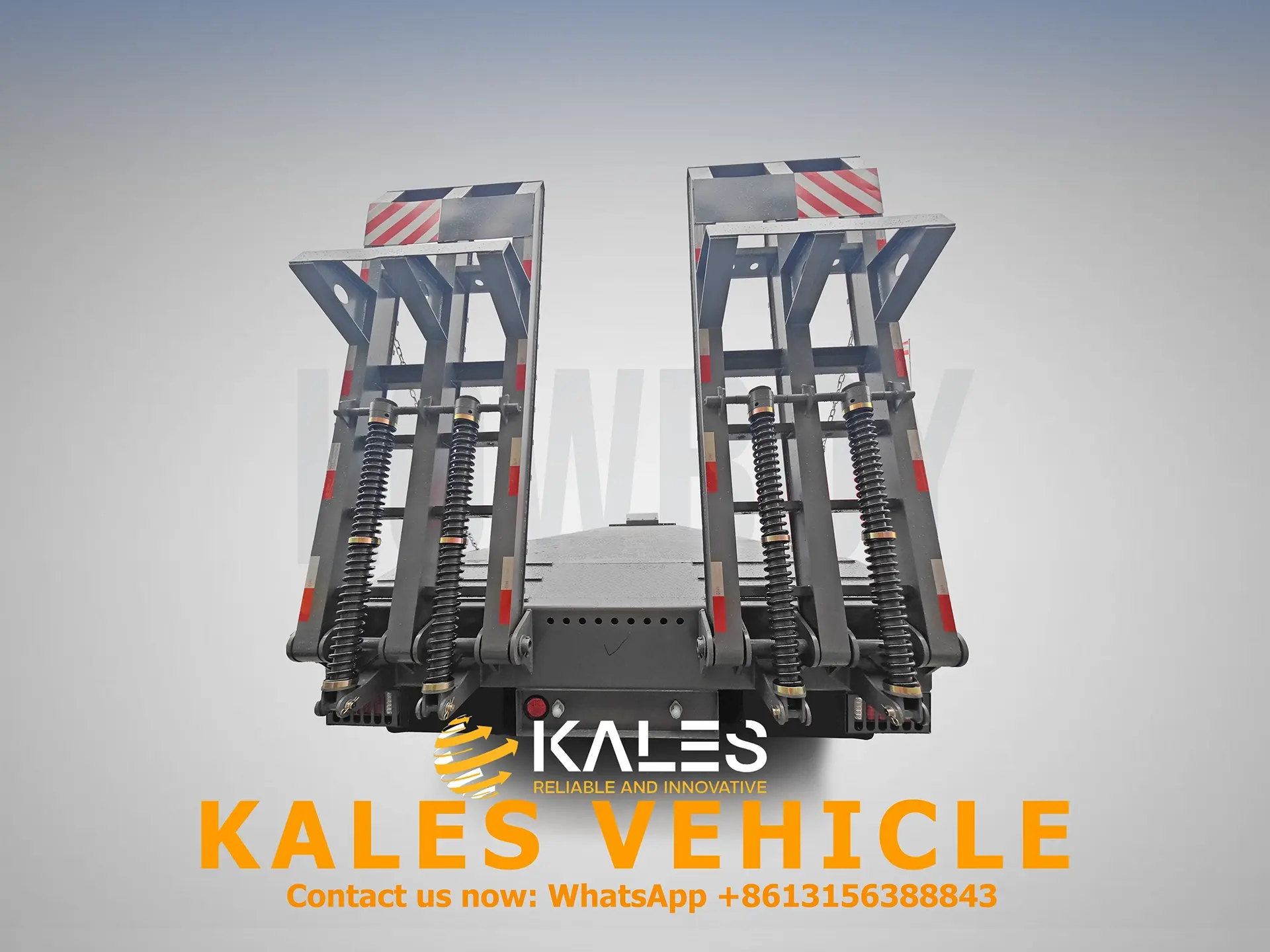

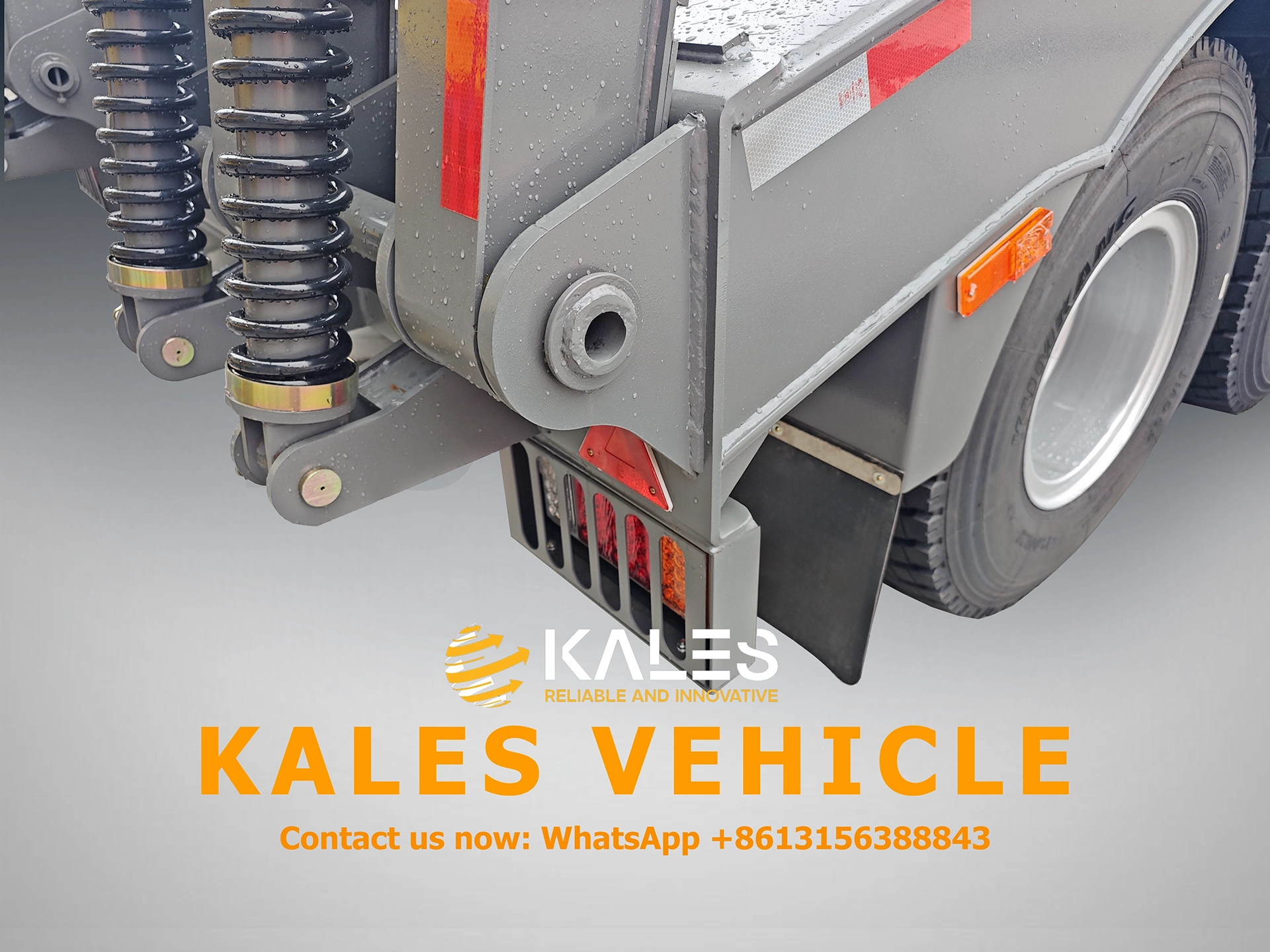

- Ramps: Dual Q345B steel ramps (≥20-ton capacity each), with safety locks. Hydraulic ramp option available for easier loading of bulldozers or loaders.

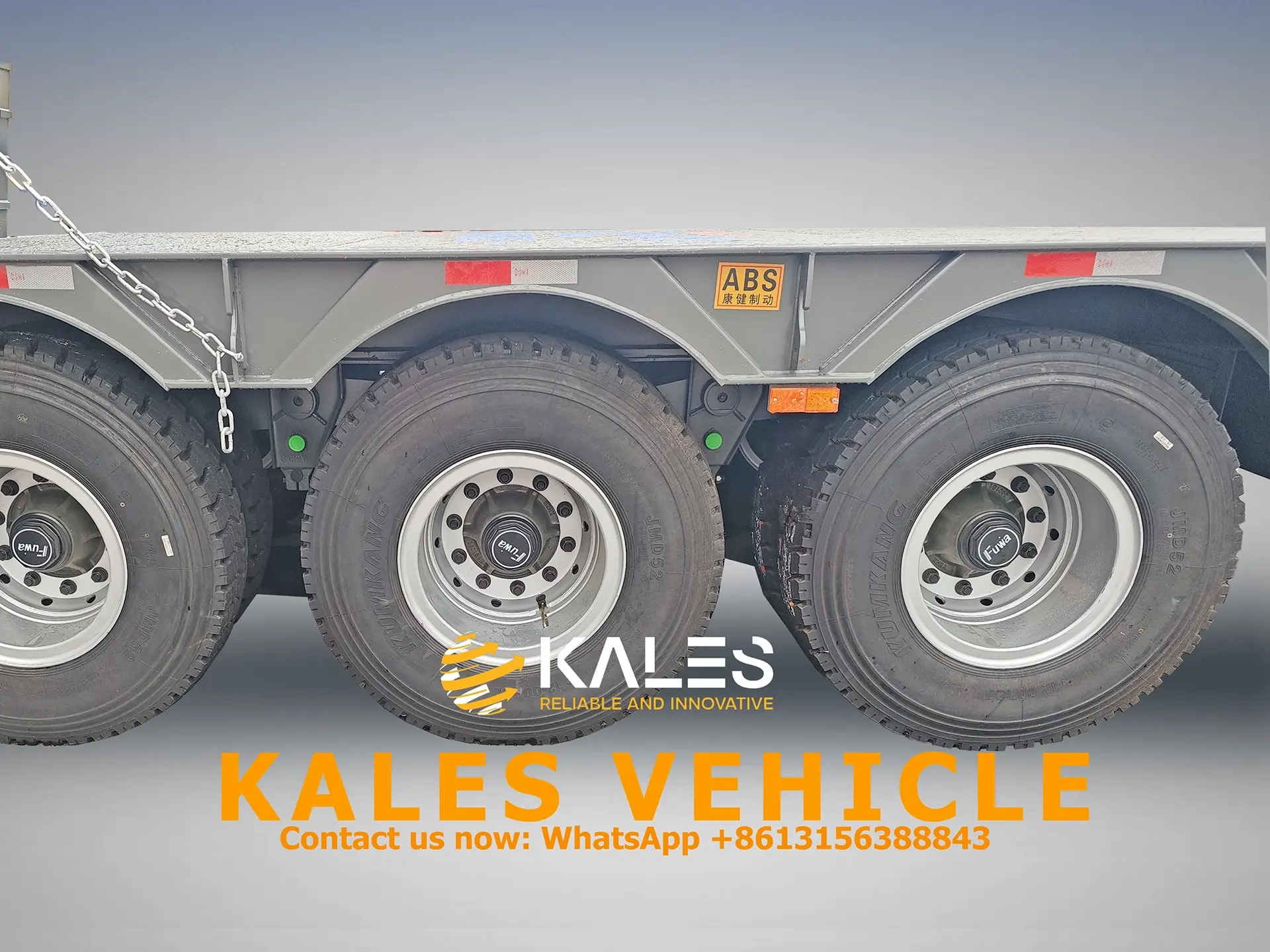

- Axles: 3 × FUWA 16T axles (BPW/Kessler optional), with 12R20 all-steel radial tires (Triangle/Double Coin). Self-steering axle reduces tire wear and improves turning in tight job sites.
- Suspension: 12-leaf heavy-duty springs (14mm thick) or air suspension for smoother rides on rough terrain.
This is the heavy-duty lowbed trailer 80 tons professionals rely on for mining equipment transport, wind turbine logistics, and oversized industrial cargo.
Smart Upgrades for Safety, Control & Flexibility
🔧 Braking & Electrical – Built for Modern Demands
- Standard: WABCO relay valve + dual-circuit drum air brakes
- Optional: Disc brakes for superior stopping power on long descents—ideal for mountainous regions or frequent use

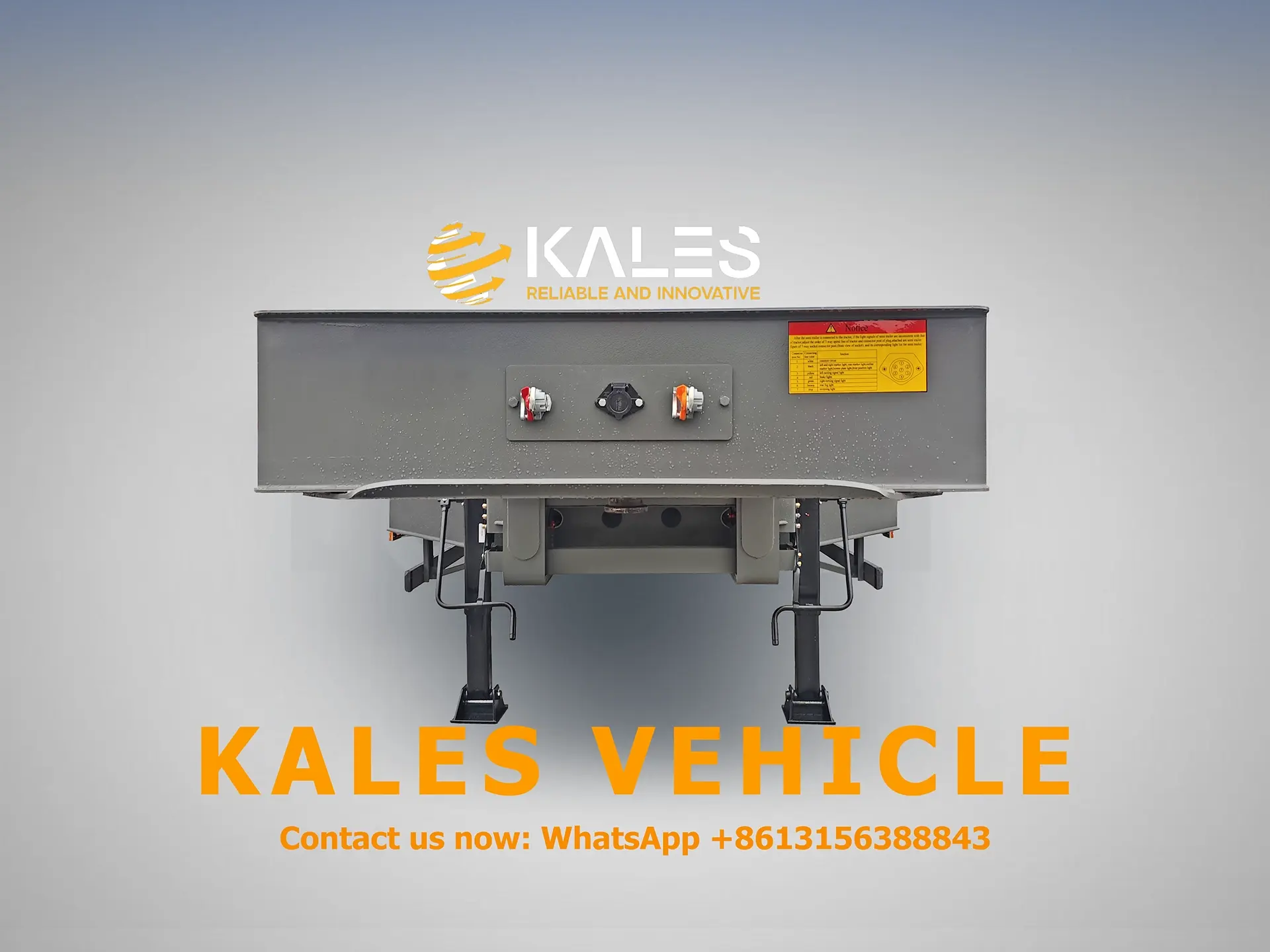

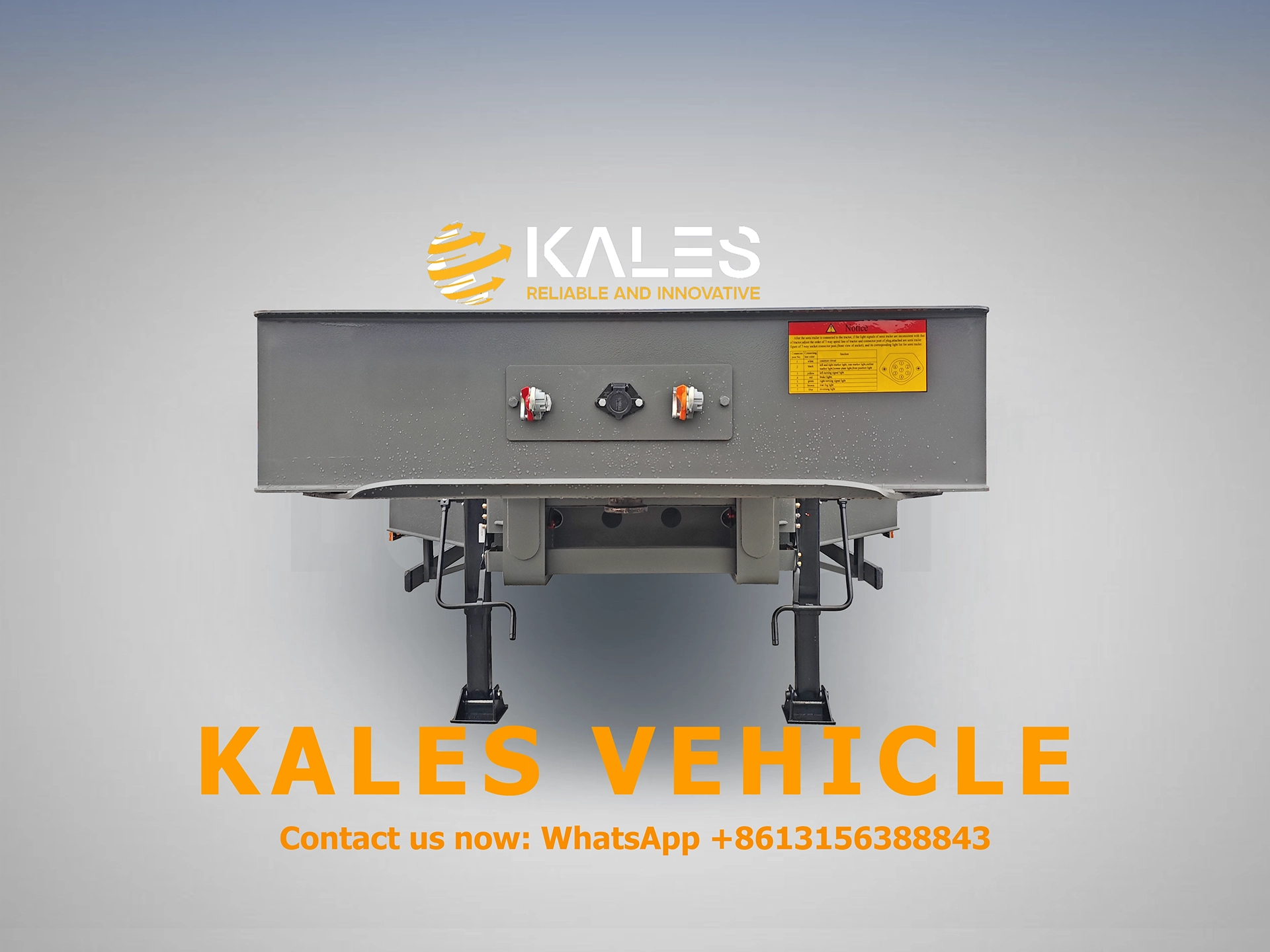

- Electrical: 24V ISO 1185 socket + ECE-compliant LED lights
- Optional: Rearview camera or radar for safer reversing and precise positioning during loading
🛠️ Modular Gooseneck & Deck Options
- Lifting Gooseneck: Adjust height to match any tractor
- Detachable or Hydraulic Folding Gooseneck: Remove ramps and load from the front—perfect for tracked machinery
- Extendable Deck: Increase length or width on demand for irregular or extra-long cargo
These features make our 80T lowboy trailer with hydraulic gooseneck one of the most versatile in its class.
Ideal for These Heavy-Duty Applications
| Industry | Equipment Transported |
|---|---|
| 🏗️ Construction | CAT 374, Komatsu PC800 excavators, mobile cranes, bulldozers |
| ⛏️ Mining & Energy | Mining truck chassis, drilling rigs, transformers, wind turbine towers |
| 🚛 Specialized Logistics | Boilers, pressure vessels, modular buildings, oversized machinery |
| 🌍 Key Export Markets | Russia, Kazakhstan, Uzbekistan, Saudi Arabia, UAE, Nigeria |
Whether you’re a lowboy trailer supplier in the Middle East or a heavy haul operator in Africa, Kales delivers a trailer built for your reality.
Why Global Buyers Choose Kales
- ✅ 12+ Years Manufacturing Expertise (since 2012)
- ✅ ISO 9001-Certified Factory with robotic welding & painting
- ✅ Custom 80 ton lowbed semi trailer designs for 15+ countries
- ✅ 48-Hour Quote & Drawing – OEM/ODM supported
- ✅ Lifetime Technical Support + fast spare parts worldwide
We’re not just a China 80 ton lowbed trailer manufacturer—we’re your long-term heavy transport partner.
Technical Specs – Kales KL-80T Lowbed Semi Trailer
| Trailer Model | 80T Low bed semi-trailer with ladder |
| Outside Dimensions | 16700*3000*3750mm(The final dimensions depend on the final design drawings) |
| Curb weigh | 15.9 tons |
| Maximum payload | 80 tons |
| Total weight | 95.9 tons |
| Usage | Lowbed semi-trailers are primarily used for transporting overweight and oversized cargo such as construction machinery (excavators, bulldozers, etc.) |
| Axle Brand | 3 *13T capacity, FUWA brand (Chinese best brand) |
| Main beam | Opting for high strength HG60 steel, 520mm deep welded I-section main beams Top Flange thickness 20mm, width 140mm; Bottom Flange thickness 20mm, width 140mm.Middle Flange thickness 12mm; |
| Tyre Specifications | 12R20 |
| Suspension | Heavy duty undermount suspension with equalizers, American style (high-strength type) |
| plate thickness | 5 mm thickness chequer plate |
| Tool Box | One piece (1. 0*0. 5*0. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) |
| Spare tire carrier | 1 sets Electric spare tire carrier |
| Pin Height | According to the height of the tractor saddle. |
| Electrical System | One unit of 24V 7-pin ISO 1185 socket; LED lights |
| Brake System | WABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector. |
| Color and Logo | Depends on the buyer’s requirement. |
💡 Important: Many “80-ton” trailers on the market can only safely carry 60 tons. The Kales 80T is engineered to meet a safety factor of ≥3 at full 80-ton load—proven, not just promised.
📩 Get Your Custom Quote in 48 Hours!
It’s easy to get started:
- Tell us your needs: payload, destination country, dimensions, and special requirements
- Receive your offer: Detailed technical drawing + quote (including certification support) within 48 hours
- Production & delivery: Ready in 30–45 days, with full logistics tracking
📞 Call / WhatsApp: +86 131 5638 8843
📧 Email: jennylee@kalestruck.com
🌐 Website: www.kalestruck.com
Kales Truck Corp — Engineering Excellence for Heavy-Duty Success
✅ ISO 9001 Certified | ✅ Serving 15+ Countries | ✅ 80-Ton Lowbed Specialists
Customization
Built around your market requirement
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as steel thickness and reinforcement based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Shipping & Delivery
Practical export planning from factory to destination
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality & After-Sales
Lower risk before and after delivery
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- A 12-month warranty is available for the main beam and key components, with spare parts and remote technical support after delivery.
Cooperation Flow
How the order will actually move
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Logistics Display
Flexible Logistics Solutions: Safe & Cost-Effective Delivery
At Kales Vehicle, we understand that shipping costs are a major part of your investment. That’s why we offer multiple transport options tailored to your destination and budget.
Whether you choose Container Shipping for protection, Ro-Ro (Roll-on/Roll-off) for speed, or Bulk Cargo for cost savings, we ensure every trailer is handled with care. All vehicles undergo rigorous wax spraying and are covered with waterproof tarpaulins before shipment to prevent seawater corrosion during transit. We calculate the optimal stacking method (e.g., 3 units stacked together) to help you minimize freight costs.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Product FAQ
Questions buyers usually ask before ordering
Can this trailer be adapted for rough roads or overloaded routes?+
Yes. We can review your road conditions, legal load limits, and cargo type to recommend reinforcement, suspension, tires, and structural changes before production.
What information do you need for an accurate trailer quote?+
The fastest quote comes when you share cargo type, target market, preferred dimensions, expected payload, and any special configuration requirements.
How is this trailer usually shipped internationally?+
Depending on model size and destination, we can arrange bulk vessel, Ro-Ro, container, or multimodal sea-road transport and recommend the most practical route.
Do you support OEM branding and local compliance requests?+
Yes. We can add your logo, paint scheme, markings, and selected configuration changes while aligning the build with the compliance needs of your market.
