Kales 80 Ton Lowbed Semi Trailer (3 Axle)
Kales low loader trailers for sale are ideal for transporting a wide range of cargo, including large machinery, building materials, and heavy goods. The flatbed design makes them highly flexible and versatile, allowing them to adapt to various industries and transportation needs. The Kales lowboy trailer features a low-profile flatbed structure, which is not limited by the height of the cargo. This design allows for increased load capacity by extending the trailer’s length. This design enables the trailer to carry more cargo and have a higher load capacity.
Built for export buyers who need route-matched trailers, durable structure, and clear factory support before shipment.
Trailer Type
Semi trailer
Axles
Multi-axle options
Payload
Configured to project requirement
Rugged & Durable
Built with high-strength steel and branded components to withstand tough road conditions
Exceptional Support
From customization to maintenance, we provide full lifecycle support for your fleet
FAST DELIVERY
Optimized production lines to ensure on-time delivery for your orders
Product Overview
Heavy Haul Expert | HG60 High Strength Steel | Built for Mining & Construction
The Strongest Backbone for Your Heavy Machinery.
Capacity: 60-80 Tons | Steel: HG60 High Strength | Ramps: Reinforced Spring/Hydraulic

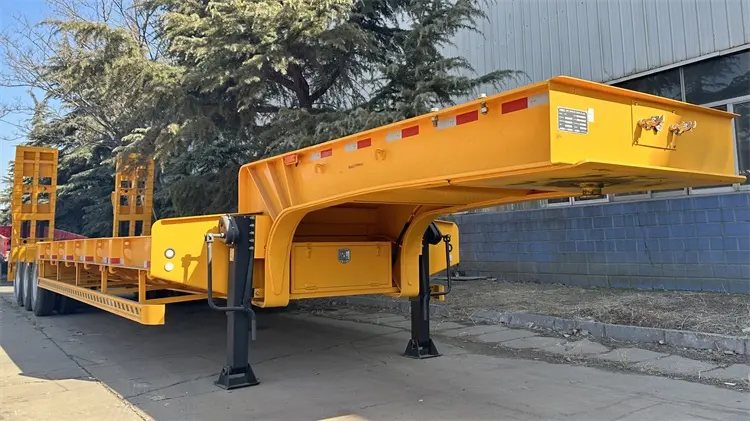

*Kales 3-Axle 80 Ton Lowbed Trailer – Designed for Excavators & Heavy Equipment*
🏗️ Why Choose KALES 80 Ton Lowbed Trailer?
Transporting heavy machinery like excavators, bulldozers, and transformers requires more than just a trailer; it requires a guarantee of safety. The KALES 80 Ton Lowbed Trailer (Lowboy) is engineered to withstand the harshest mining and construction environments in Africa and Latin America.
💎 HG60 High Strength Steel
We do not use standard Q345 steel for our lowbeds. We use HG60 High Strength Steel. This material offers high yield strength, ensuring the main beam will not bend or break even when carrying concentrated loads (like a heavy excavator in the center).
📐 Reinforced Ramps
Our loading ramps are reinforced with high-strength steel plates and anti-skid bars. Whether you choose Heavy Duty Spring Ramps or Hydraulic Ramps, we ensure safe and easy loading for crawler machinery.
⚖️ Low Center of Gravity
Safety is priority. The Kales Lowbed features a scientifically designed chassis height (1250mm-1300mm), providing excellent stability during transport, especially when navigating curves or rough terrain.
🛡️ Advanced Engineering & Anti-Rust
What you can’t see is just as important as what you can see. We focus on longevity.
💪 Gooseneck Double Reinforcement
The gooseneck is the highest stress point. We use a double-layer vertical plate design at the gooseneck connection to prevent breakage during heavy braking or climbing.
🎨 Polyurethane Paint + Waxing
We use 2 layers of anti-rust primer and 2 layers of Polyurethane finish paint. Before shipping, every trailer is sprayed with protective wax to prevent seawater corrosion.
📷 360° Visual Inspection
See the robust construction details of our 80 Ton Lowboy Trailer.

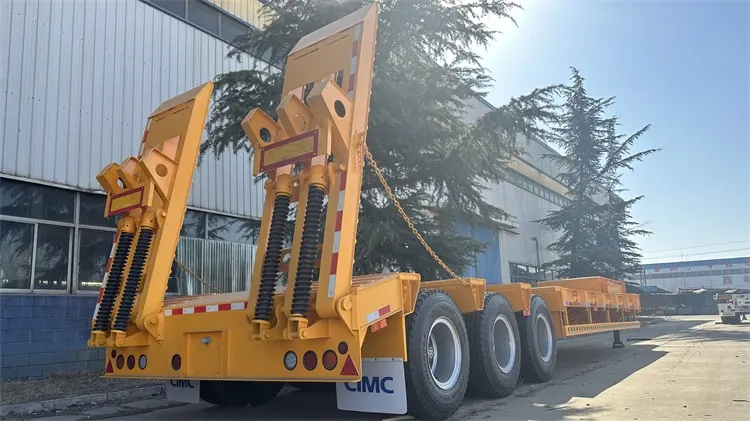

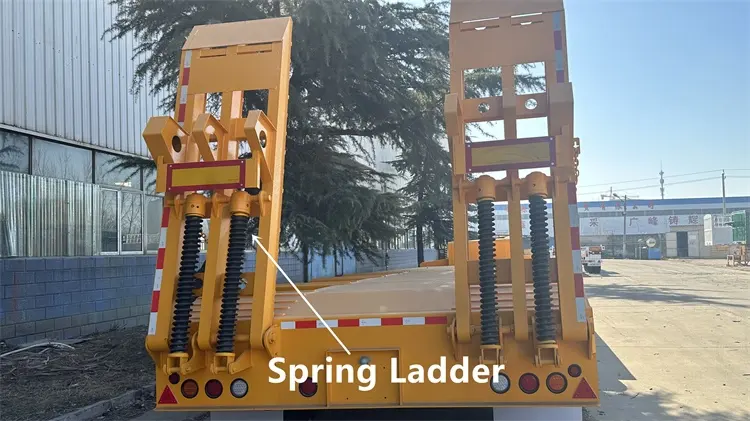

Reinforced Mechanical Ramps

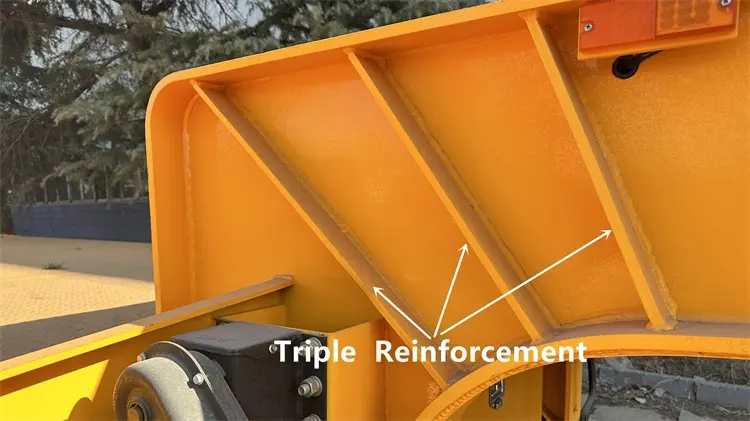

Reinforced Gooseneck

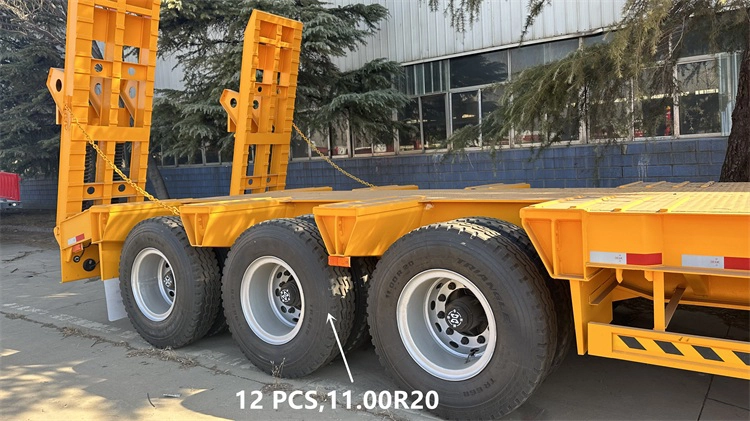

Heavy Duty Axle & Suspension
3000mm Wide Working Platform

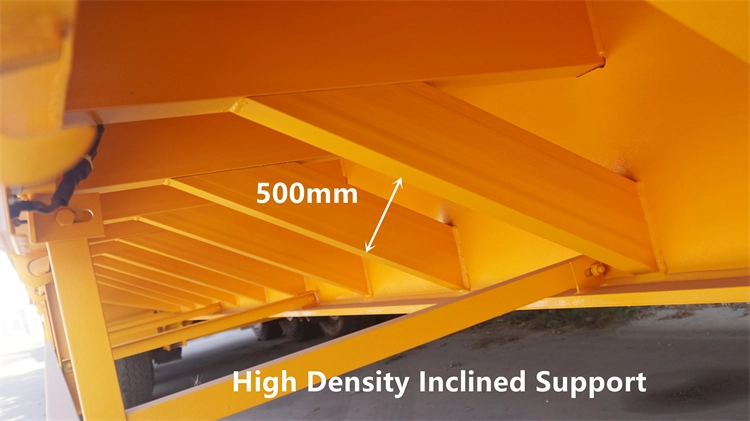

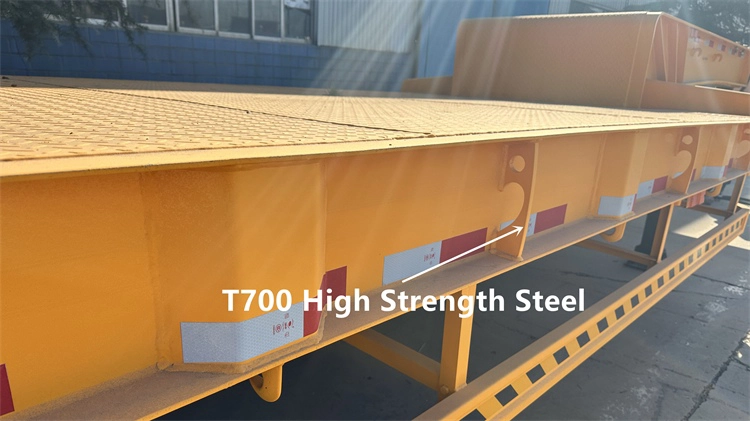

Robust Side Beam Design

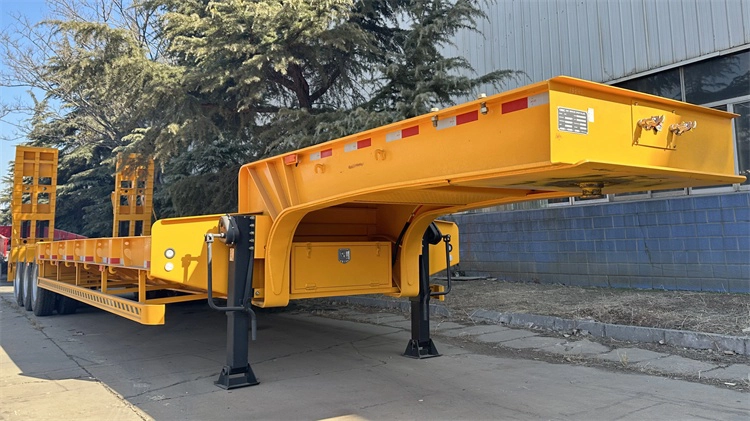

Ready for Heavy Haul
🔧 Technical Specifications
| Category | Specification Details |
|---|---|
| Product Name | 3-Axle 80 Ton Lowbed Semi Trailer |
| Payload Capacity | 60 Tons – 80 Tons |
| Overall Dimension | 13,000mm x 3,000mm x 1,750mm (Customizable) |
| Main Beam Material | HG60 High Strength Steel Upper Plate: 20mm | Lower Plate: 20mm | Web: 12mm (Double) |

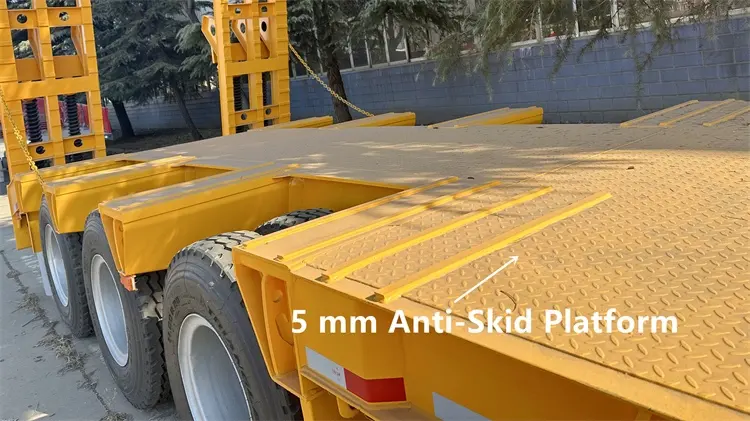

| Platform Plate | 5mm Checkered Plate (Anti-skid) |
| Axles | 3 Axles (13T/16T/20T) Brands: FUWA / BPW / KALES |
| Tires | 11.00R20 / 12.00R20 / 8.25R20 / 12R22.5 (Depends on height requirement) |
| Suspension | Heavy Duty Mechanical Suspension (8mm/10mm thickness) |
| Ramps | Spring Mechanical Ramps (Standard) or Hydraulic Ramps (Optional) |
| Landing Gear | JOST Brand / KALES Heavy Duty 28T |
| Brake System | WABCO Valve + Dual Air Brake System |
| Kingpin | 2.0 inch (50#) or 3.5 inch (90#) Bolted Type |
🎁 What’s Included? (Free Accessories)
We want you to start working immediately. Every Kales Lowbed comes with this free kit:
- ✅ 1 x Heavy Duty Tool Box
- ✅ 2 x Spare Tire Carriers
- ✅ 1 x Set of Spanner Tools
- ✅ Side Reflectors & Mudguards
- ✅ Fire Extinguisher Holder
- ✅ Free Wax Spraying (For Shipping)
🏗️ Wide Range of Applications
The 80 Ton Lowbed Trailer is the “Swiss Army Knife” of the heavy transport industry.
- ✅ Construction: Perfect for moving Excavators (CAT 320/336), Bulldozers, Road Rollers, and Pavers.
- ✅ Mining: Transporting heavy Crushers, Drills, and mining dump truck parts.
- ✅ Industrial: Hauling transformers, generators, and long steel structures.
🛡️
Kales Manufacturing Standard
We don’t build trailers that break.
- ✔
150% Load Test:
Before delivery, every chassis undergoes a static load test at 150% capacity to ensure structural integrity. - ✔
Laser Cutting & Robot Welding:
Precision manufacturing ensures the main beam is perfectly aligned, reducing tire wear and preventing “dog-tracking”. - ✔
3-Year Warranty:
We offer a 3-year warranty on the main beam structure. That’s confidence.
❓ Frequently Asked Questions
Q: Can you customize the width for wider machinery?
A: Yes! The standard width is 3000mm, but we can install Side Brackets (Outriggers) to extend the width to 3500mm or more for oversized loads.
Q: What is the difference between Mechanical and Hydraulic Ramps?
A: Mechanical (Spring) Ramps are simple, low maintenance, and cost-effective. Hydraulic Ramps are easier to operate (one button lift) but cost slightly more. For 80 Ton trailers, both work well, but hydraulic is recommended for frequent use.
Q: How do you ship this trailer?
A: Due to the large size (3m width), we usually ship via Bulk Cargo Ship or Ro-Ro Ship. We can also cut the trailer tail to fit into a 40ft HQ Container (requires welding at destination) to save freight costs.
Q: Where can I get spare parts?
A: Kales uses standard international parts (like FUWA axles, JOST legs, WABCO valves). You can easily find replacements in local African markets. We also supply spare parts kits at factory cost.
Need to Move Heavy Equipment? Get Kales.
Factory Direct Price. Custom Design. Lifetime Support.
We export to Tanzania, Zambia, Nigeria, and Latin America.
Customization
Built around your market requirement
- Adjust trailer dimensions, payload target, and axle layout to fit your cargo profile.
- Select suspension, tire specification, landing gear, ramps, sidewalls, or tanker compartments as needed.
- Choose structural details such as steel thickness and reinforcement based on road conditions.
- Apply OEM branding, company colors, and market-specific safety markings before shipment.
Shipping & Delivery
Practical export planning from factory to destination
- Shipment can be arranged by bulk vessel, Ro-Ro, container, or sea-road intermodal solutions depending on trailer size and destination.
- Standard stock units can move quickly, while custom production is scheduled according to quantity and configuration complexity.
- We support major trade terms including FOB, CIF, and CFR, and prepare export documents for customs clearance.
- Before shipment, photos, videos, and pre-delivery inspection records can be shared for confirmation.
Quality & After-Sales
Lower risk before and after delivery
- Each trailer goes through factory inspection for welding quality, structural alignment, and key running components before delivery.
- We support certification and export document preparation according to your destination market requirements.
- A 12-month warranty is available for the main beam and key components, with spare parts and remote technical support after delivery.
Cooperation Flow
How the order will actually move
Share your target market, usage scenario, and preferred configuration.
Receive our model recommendation, specification review, and factory quotation.
Confirm production, inspection, shipment route, and export documents.
Stay supported after delivery with spare parts and remote assistance.
Logistics Display
Flexible Logistics Solutions: Safe & Cost-Effective Delivery
At Kales Vehicle, we understand that shipping costs are a major part of your investment. That’s why we offer multiple transport options tailored to your destination and budget.
Whether you choose Container Shipping for protection, Ro-Ro (Roll-on/Roll-off) for speed, or Bulk Cargo for cost savings, we ensure every trailer is handled with care. All vehicles undergo rigorous wax spraying and are covered with waterproof tarpaulins before shipment to prevent seawater corrosion during transit. We calculate the optimal stacking method (e.g., 3 units stacked together) to help you minimize freight costs.
Ro-Ro Cargo
Ro-Ro shipping method for Kales commercial trailers, driving directly onto the vessel for maximum safety.
Bulk Cargo Ship
Bulk cargo transport of stacked Kales semi trailers with wax spraying protection against seawater corrosion.
Product FAQ
Questions buyers usually ask before ordering
Can this trailer be adapted for rough roads or overloaded routes?+
Yes. We can review your road conditions, legal load limits, and cargo type to recommend reinforcement, suspension, tires, and structural changes before production.
What information do you need for an accurate trailer quote?+
The fastest quote comes when you share cargo type, target market, preferred dimensions, expected payload, and any special configuration requirements.
How is this trailer usually shipped internationally?+
Depending on model size and destination, we can arrange bulk vessel, Ro-Ro, container, or multimodal sea-road transport and recommend the most practical route.
Do you support OEM branding and local compliance requests?+
Yes. We can add your logo, paint scheme, markings, and selected configuration changes while aligning the build with the compliance needs of your market.
